Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.
Save 2% with bank transfer.
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details
Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C - capacity from 300 to 5000 Liters;

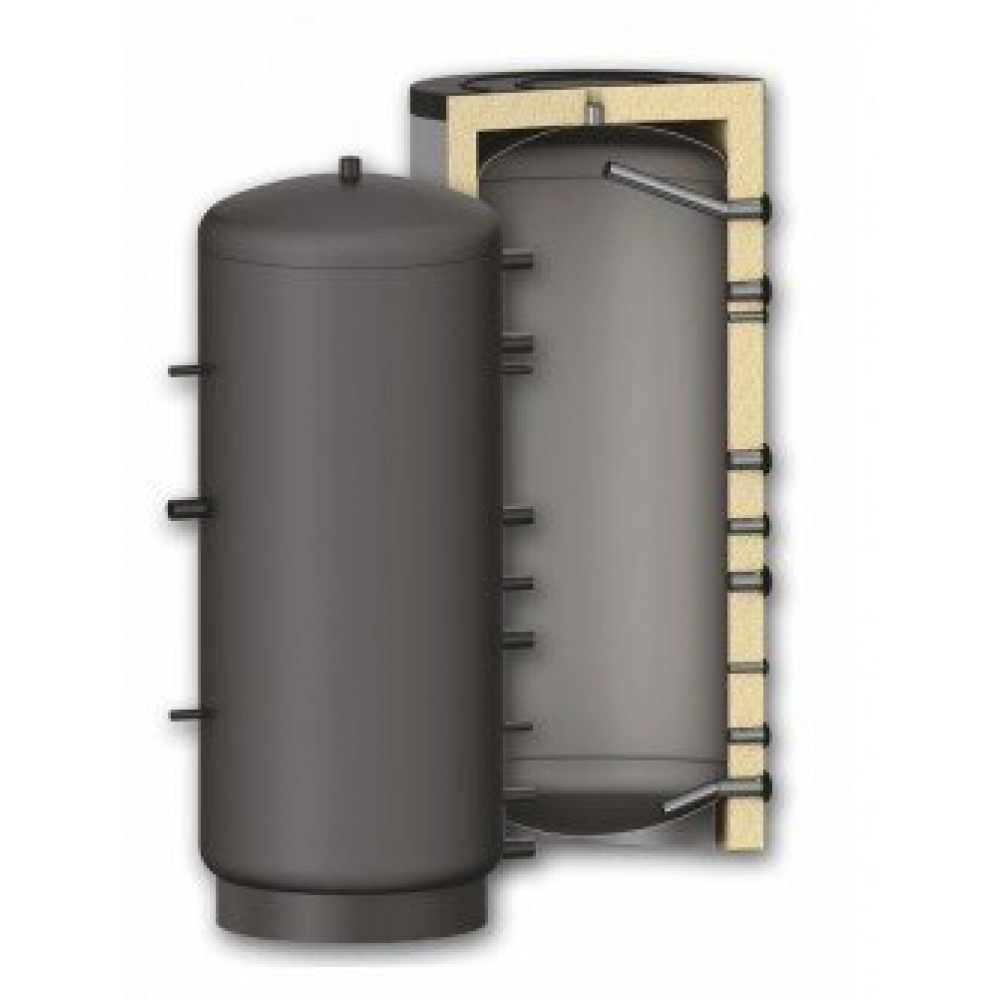

Product features:
1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
Characteristics | |
Weight (kg) | 152.0000 |
Country of Manufacture | Bulgaria |
Dimension Height (mm) | 2090 |
Warranty | 2 Years |
Certification | CE |
Thermometer | Optional |
Energy efficiency class | C |
Water capacity/content (L) | 1000 |
Installation | Free standing |
Heat exchanger coil | No heat exchanger |
Height without insulation (mm) | 2040 |
Diameter (mm) | 990 |
Diameter without insulation (mm) | 790 |
Minimum vertical clearance (mm) | 2075 |
Insulation weight (kg) | 18 |
Maximum buffer operating temperature (°C) | 95 |

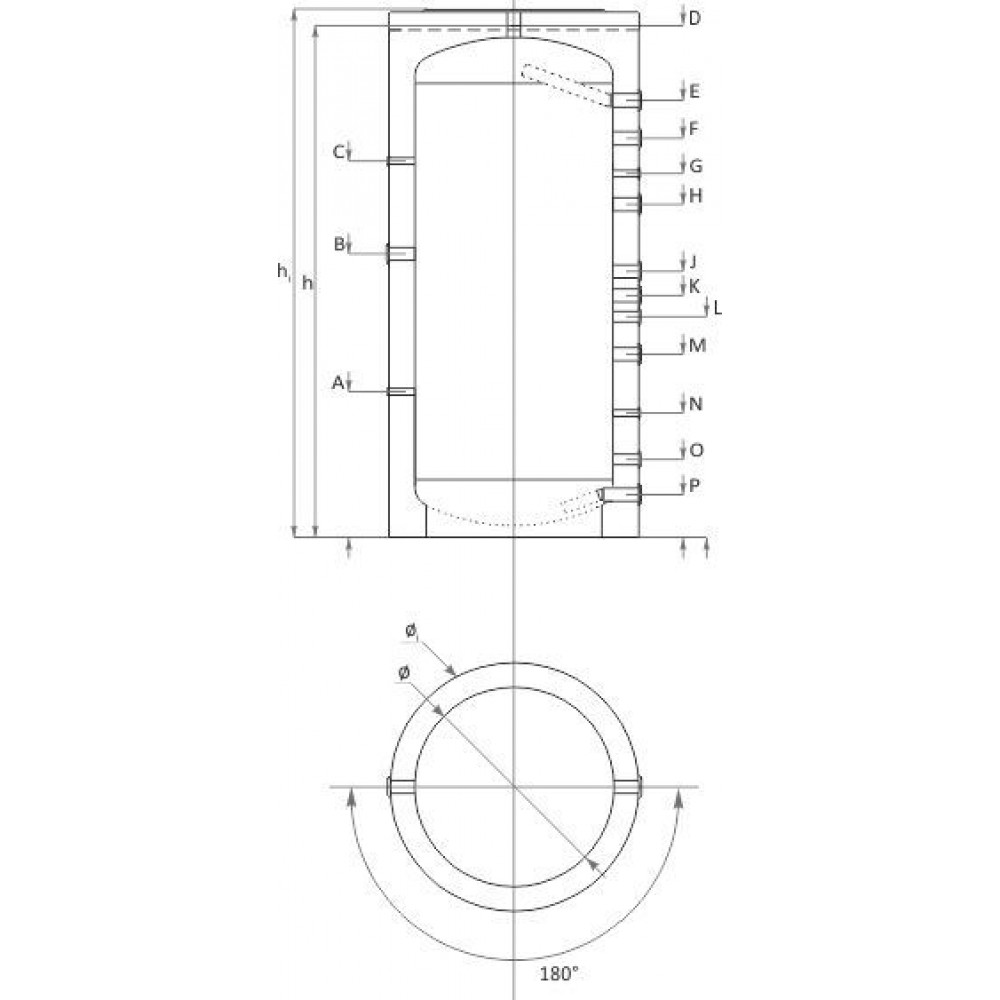

Sensor sleeve A (mm) | G 1/2'' / 580 |
Electric heating element B (mm) | G 1 1/2'' / 1130 |
Sensor sleeve C (mm) | G 1/2'' / 1500 |
Air vent sleeve D (mm) | G 1 1/2'' / 2040 |
Boiler heat carrier E (mm) | G 1 1/2'' / 1742 |
Sensor sleeve G (mm) | G 1 1/2'' / 1450 |
Boiler heat carrier J (mm) | G 1 1/2'' / 1060 |
Heat carrier inlet L (mm) | G 1'' / 880 |
Boiler heat carrier M (mm) | G 1 1/2'' / 730 |
Sensor sleeve N (mm) | G 1/2'' / 495 |
Heat carrier outlet O (mm) | G 1'' / 310 |
Heat carrier inlet F (mm) | G 1 1/2'' / 1520 |
Boiler heat carrier outlet P (mm) | G 1 1/2'' / 150 |
Buffer operating pressure (bar) | 3 |
