Capillary thermometer Cewal, Plastic case DN50

Capillary thermometer Cewal, Plastic case DN50 | Thermometers/Manometers | Control Devices |
Capillary thermometer Cewal, Plastic case DN50 | Thermometers/Manometers | Control Devices |
Capillary thermometer Cewal, Plastic case DN50 | Thermometers/Manometers | Control Devices |
Capillary thermometer Cewal, Plastic case DN50 | Thermometers/Manometers | Control Devices |

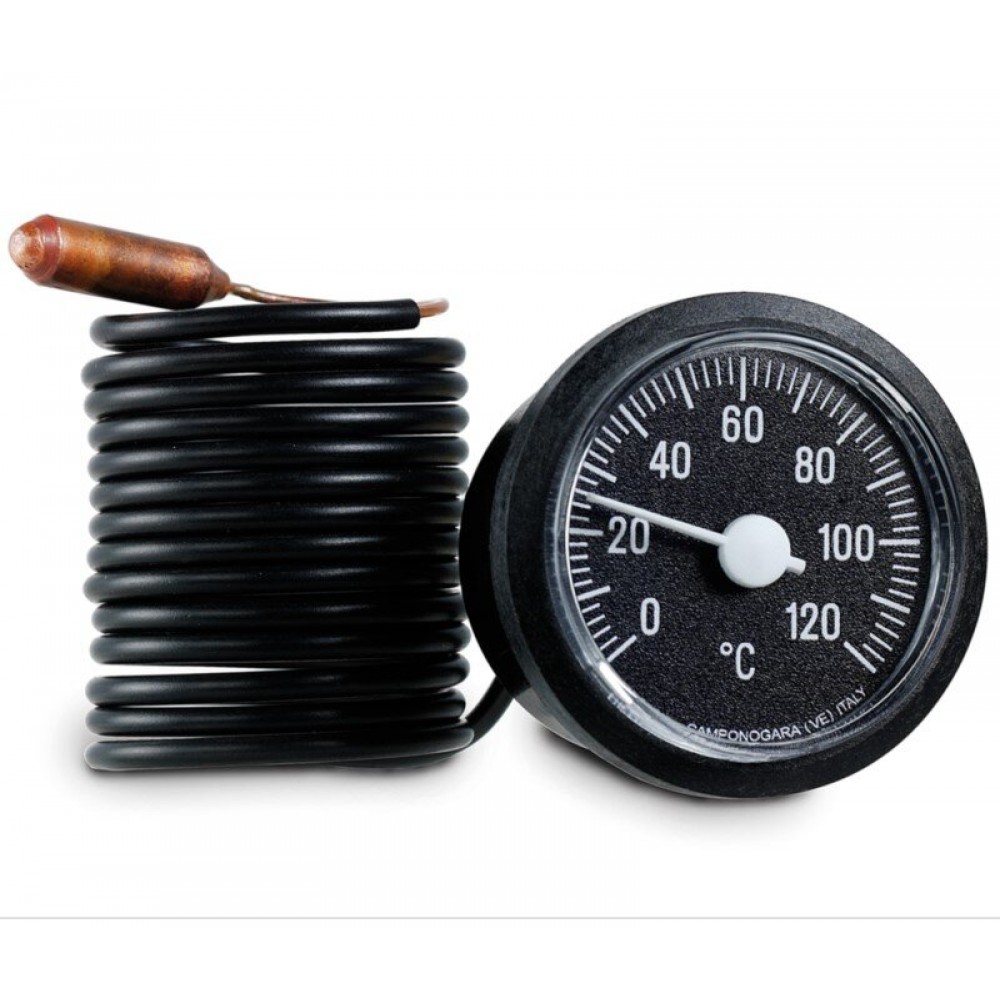

Capillary thermometer Cewal, Plastic case DN50

Instrument for measuring temperature.

  • Stock: In Stock
  • SKU: 08.372.040
€ 19.20
incl. VAT
Ex Tax: € 16.00
Add to Cart
Inquiry
Add to Wish List Compare this Product
Estimated delivery
03.Jan.2025
DHL Schenker
See Shipping Policy

Free return
60 daysSee details

We accept payments
    See details

Features:

Capillary thermometers are used in a wide variety of applications. Their main feature is to allow reading the temperature on an instrument panel by detecting it at a distance. The most popular applications are on boilers with regard to heating and refrigerated units and glass door fridges with regard to refrigeration. This model has two versions of the case that differ in the diameter of the outer edge (see table). This allows the customer to insert "on a level" with the existing housing on the control panel so that they can choose the most suitable version for their control panel.

Size: 5.5/5.5/5.5 cm

Place of use:

  • boilers
  • bar and catering equipment
  • fridge units and glass door fridges
  • technical applications on special systems and machines

Reference of standards:

  • UNI EN 13190 precision class 2
  • protection class IP31 according to EN 60529

Limitations of use:

Temperature

  • On the thermometer’s body -20 ÷ +70 °C
  • On the bulb, in normal working conditions, up to 3/4 of the full-scale value
  • Up to the full-scale for short periods
