Centrifugal self-priming pump Speroni SM 85-3, multistage – power 0.70 kW, head 34 m, flow rate 80 L/min

Centrifugal self-priming electric pump Speroni SM 85-3

The Speroni SM 85-3 is a high-efficiency, self-priming centrifugal electric pump designed for civil and industrial applications.

Thanks to its multi-impeller design, the model provides high pressure and significant flow rate with low electricity consumption.

It is extremely suitable for irrigation, high pressure washing, as well as for continuous operation in harsh conditions.

Its solid construction, combining a body and shaft made of AISI 304 stainless steel, guarantees a long service life and high corrosion resistance.

Insulation class F and protection degree IP44 further increase the reliability of the pump, even in adverse external conditions. It can suck water from a depth of up to 8 meters and work with liquids with a temperature of up to 35°C.

Speroni SM 85-3 is widely used in various fields - in agricultural irrigation systems, in high-pressure and washing installations, in industrial facilities, in domestic water supply systems, as well as in sports facilities and green areas.

Main advantages:

• Self-priming multi-stage design – high pressure and stable flow rate
• Low power consumption
• Body and shaft made of AISI 304 stainless steel – corrosion resistant
• Suitable for continuous duty
• Universal application – household, agricultural and industrial needs
• Works with water up to 8 meters deep

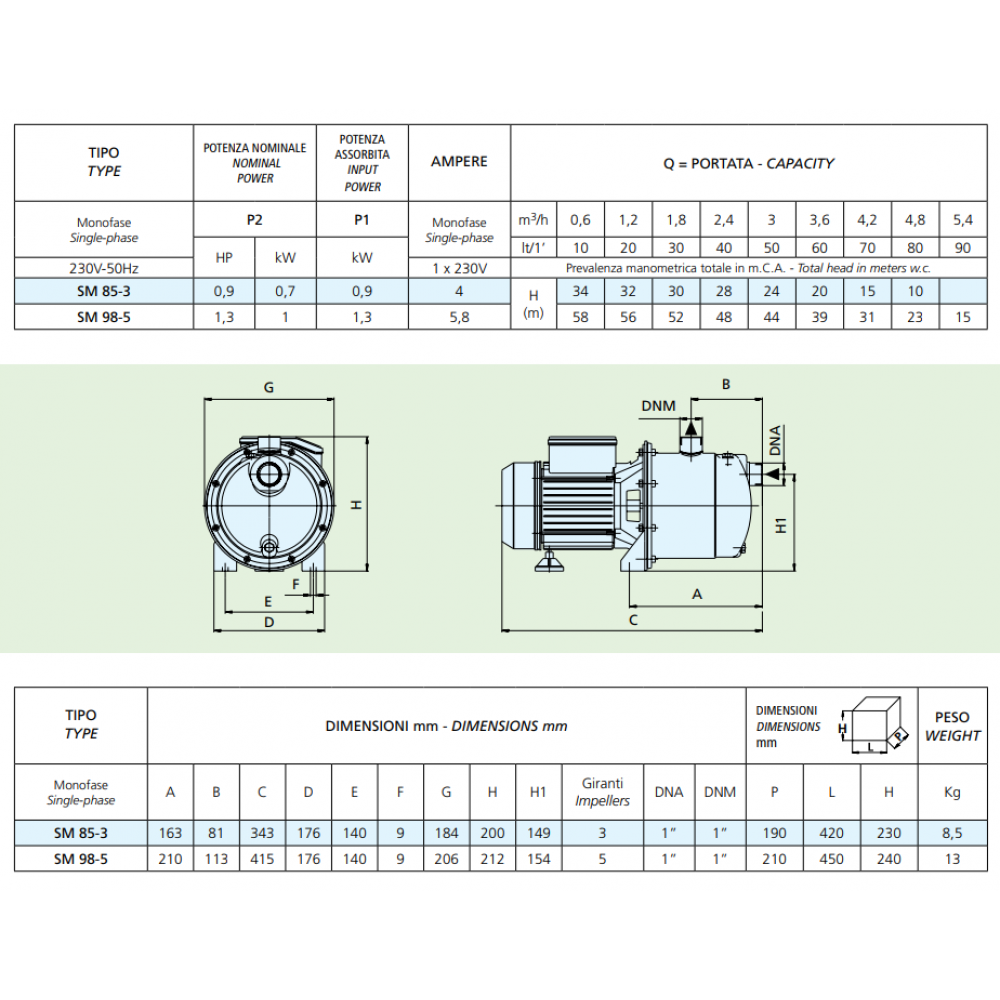

Technical specifications:

• Power supply: 230V (single-phase current)
• Rated power: 0.9 HP (0.70 kW)
• Motor type: Bipolar induction motor (n = 2850 rpm)
• Insulation class: F
• Protection class: IP 44
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Maximum suction depth: 8 meters
• Maximum flow rate: 80 l/min
• Head (predominance): 34 meters
• Inlet/outlet diameter: 1''
• Pump housing: stainless steel AISI 304
• Impeller and diffuser: Noryl
• Shaft: stainless steel AISI 304
• Mechanical seal: ceramic/graphite/NBR
• Engine flange: aluminum
• Dimensions (LxWxH): 42 x 20 x 23 cm
• Weight: 8.3 kg
