Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min

Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min | | |
Self-priming pump with ejector Speroni APM 100 – power 750 W, head 27 m, flow rate 20 L/min

The Speroni APM 100 is a self-priming ejector pump suitable for pumping clean water from wells and tanks up to 35 meters deep. With a power of 750W and a sturdy cast iron housing, it provides reliable and quiet operation for household and garden needs.

  • Stock: In Stock
  • Brand: Speroni
  • SKU: 03.320.233
€ 233.65
incl. VAT
Ex Tax: € 194.71
Add to Cart
Inquiry
Add to Wish List Compare this Product

    Save 5%   with bank transfer.

Estimated delivery
01.Jul.2025
DHL Schenker
See Shipping Policy

Free return
60 daysSee details

We accept payments
    See details

Application:

Self-priming pump with Speroni APM 100 – 750W, 27 m, 20 l/min

Powerful, reliable and designed for deep water extraction – the Speroni APM 100 is the ideal solution for water supply from wells and tanks up to 35 meters deep .

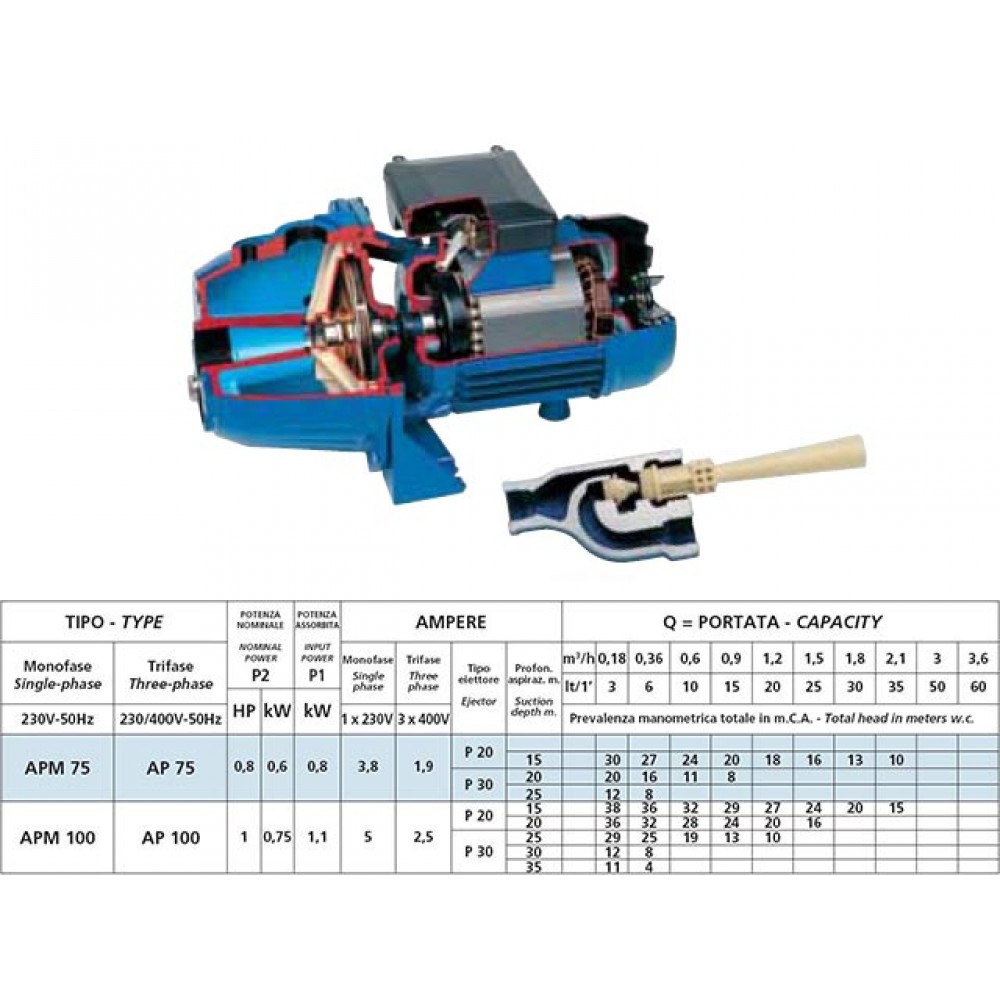

Speroni APM 100 is a highly efficient self-priming centrifugal pump with a separate ejector, designed for pumping clean water from deep water sources with a minimum diameter of 4".

With its robustness, quiet operation and compact dimensions, it is an excellent solution for household needs, garden irrigation or filling tanks.

Main advantages:

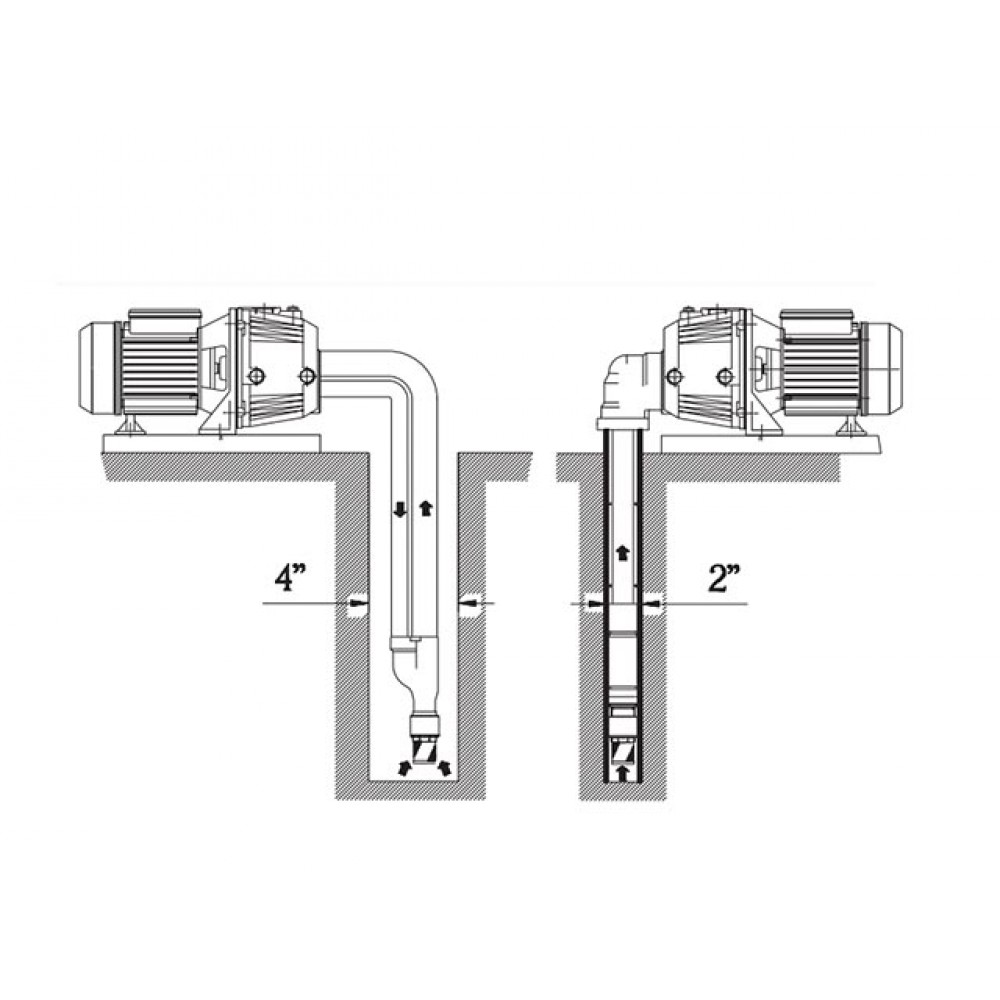

  • Deep suction up to 35 m – thanks to an external ejector (included), which is installed at the end of the suction pipe, the pump effectively overcomes a significant difference in water level.
  • Powerful electric motor – 750W (1HP) – two-pole asynchronous motor with 2850 revolutions per minute guarantees stable and continuous operation.
  • High durability – the pump housing, motor support and ejector are made of durable cast iron, and the shaft and rotor are made of AISI 304 stainless steel. The impeller and diffuser are made of durable composite (Noryl).
  • Compact dimensions and easy installation – suitable for limited spaces and standard installations.
  • Safe and long-lasting operation – mechanical seal made of ceramic, graphite and NBR, protection class IP44 and insulation class F.

Main advantages:

  • Speroni APM 100 is suitable for:
  • Pumping from wells and boreholes with a diameter ≥ 4"
  • Power supply to domestic installations and tanks
  • Irrigation of gardens and agricultural areas
  • Variable water level systems where reliable self-priming is important

Technical specifications:

  • Power supply: 230V / 50Hz
  • Power: 750W (1HP)
  • Maximum flow rate: 20 l/min (1.2 m³/h)
  • Maximum effort: 27 m
  • Max. suction depth: 35 m
  • Speed: 2850 rpm
  • Connection dimensions (inlet/outlet): 1 1/4" / 1"
  • Water temperature: 0°C to 35°C
  • Ambient temperature: up to 40°C
  • Protection class: IP44
  • Insulation class: F
  • Dimensions (LxWxH): 360 x 180 x 195 mm
  • Weight: 18 kg

Important: Before initial commissioning, check the cleanliness of the suction pipe and completely fill the pump body and pipes with water. For optimal operation and stable pressure in the system, it is recommended to use a diaphragm tank.

Characteristics
Power (kW) 1
Connection (inch) 1 1/4" and 1"
Rate of flow 1.2 m3/h
Water pump head (m) 36
