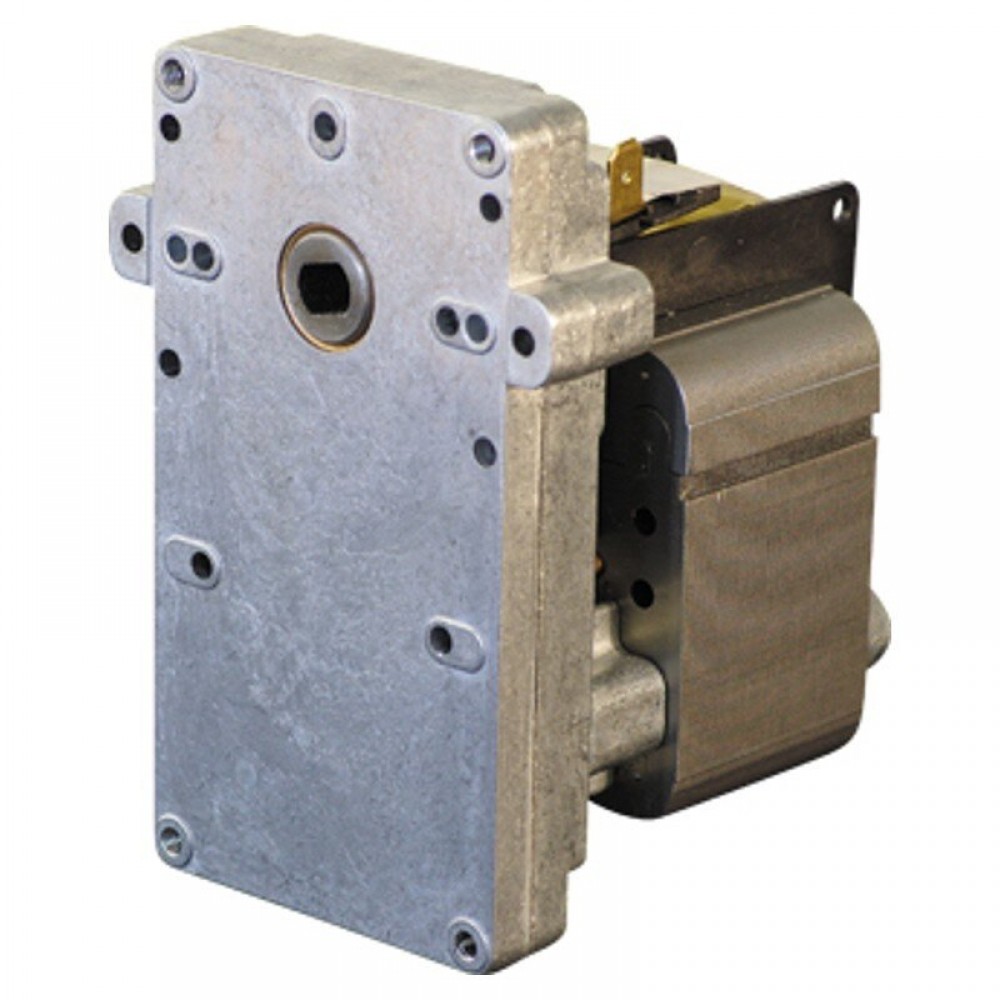

Hollow-shaft pellet stove auger motor Mellor KB1014, 3RPM for Karmek One, Caminetti Montegrappa and others

Hollow-shaft pellet stove auger motor Mellor KB1014, 3RPM for Karmek One, Caminetti Montegrappa and others
Mellor hollow-shaft gear motor for pellet stoves.
  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.034
€ 142.60
incl. VAT
Ex Tax: € 118.83
Estimated delivery
03.Jan.2025
DHL Schenker
See Shipping Policy

Free return
60 daysSee details

We accept payments
    See details

This geared motor was originally designed to complement our range between the FBT3 and UBT6. Designed with a slimline gearbox but with high torque capability allowing this unit to be used in many applications where space is limited but a high torque is required. Typical applications include pellet stoves, vending and actuation.

KB1014 geared motor is suited to be used as rotor in pellet stoves.

Compatible kenta 3 rpm

T14 series, 20Nm output torque, 21Watt consumption, 3rpm speed, clockwise rotation, 8.5mm hollow shaft diameter, 26mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

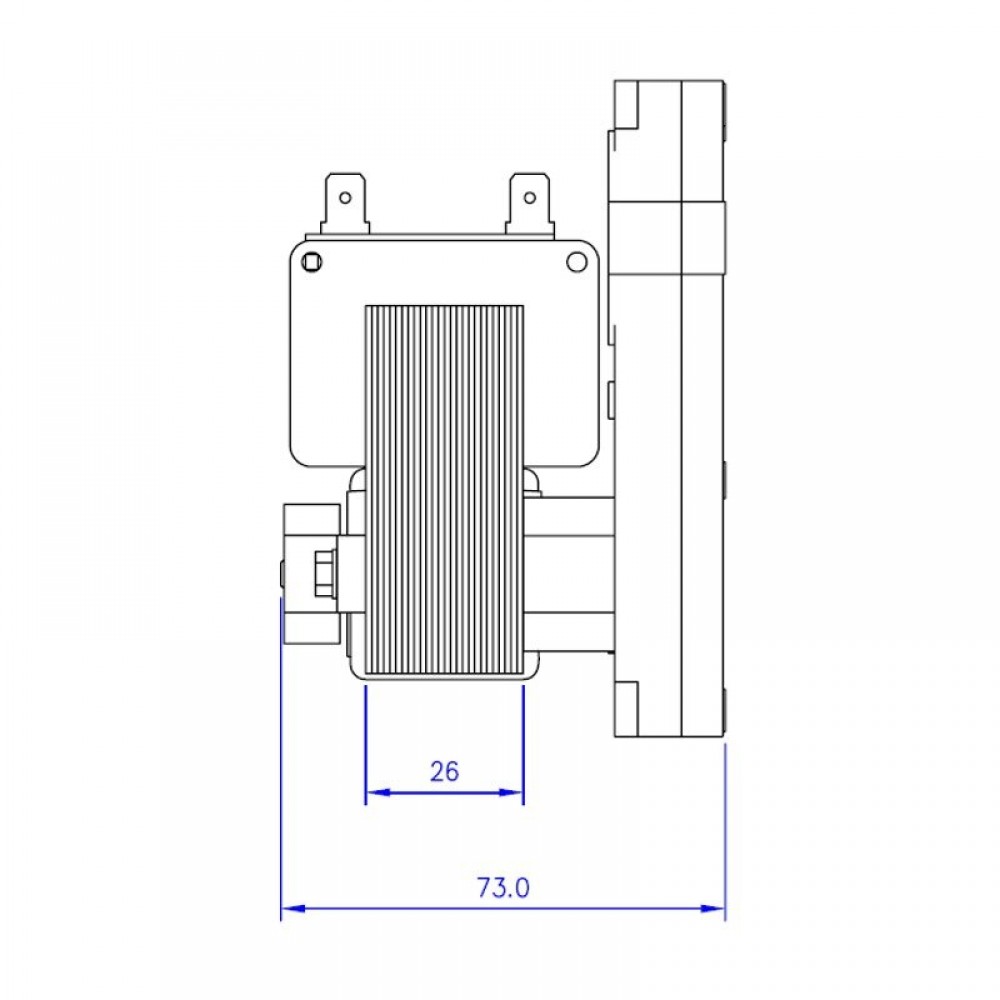

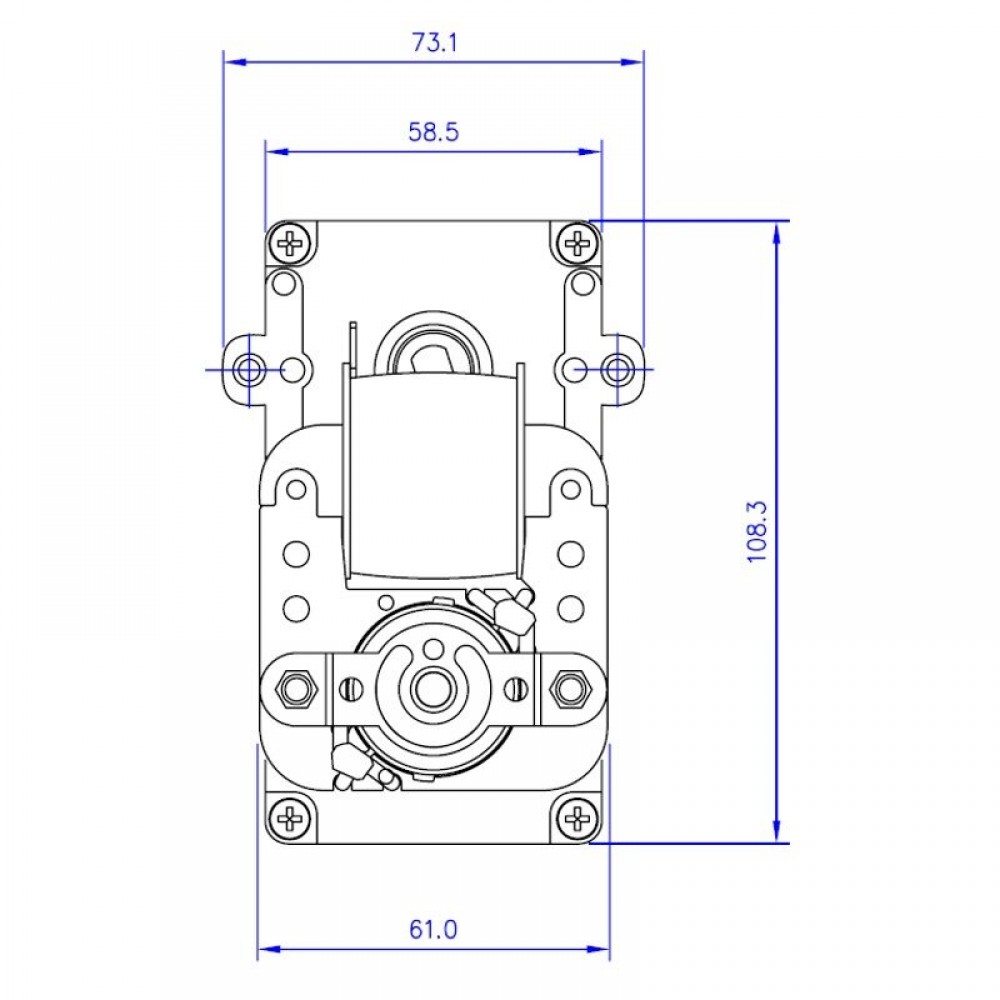

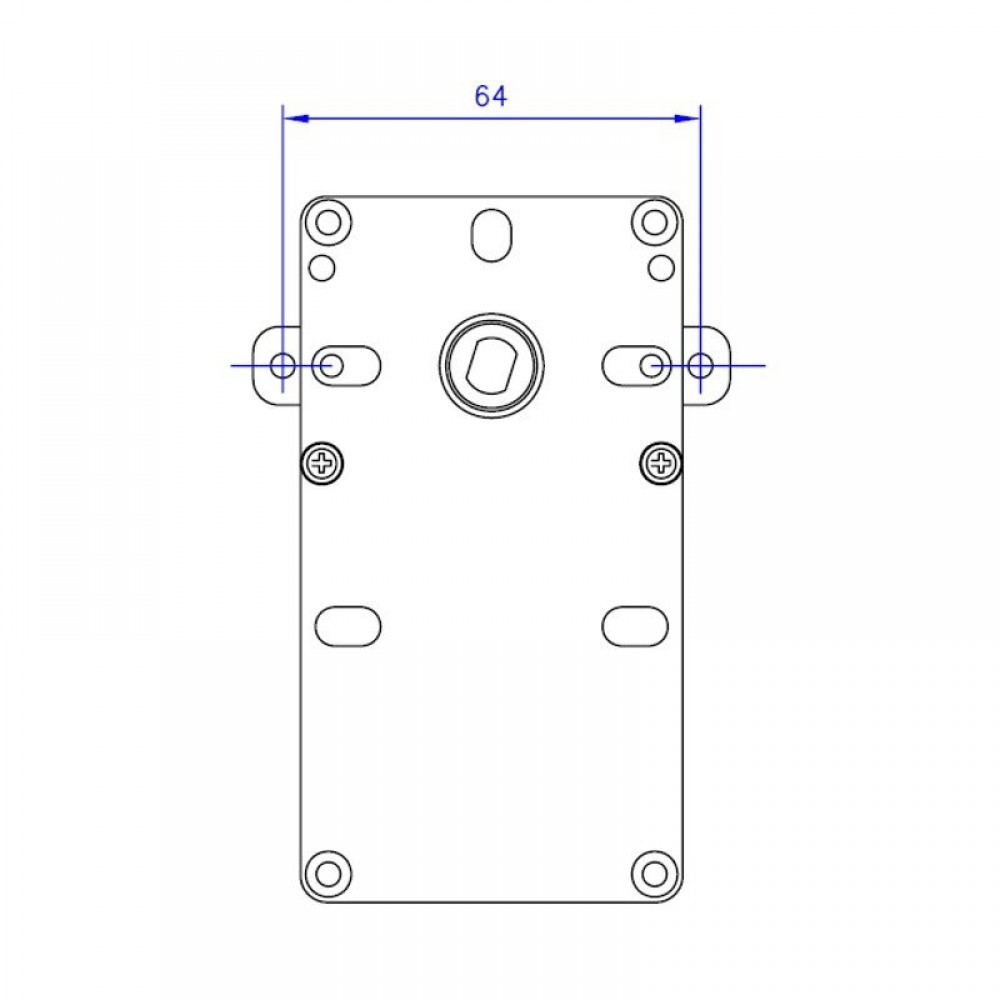

Dimension Depth (mm) 108
Dimension Width (mm) 73
Dimension Height (mm) 73
Warranty 6 months
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 21
Type Gear motor
Rotation speed (rpm) 3
Magnetic core (mm) 26
Shaft diameter (mm) 8.5
Shaft milling double
Rotation clockwise
Output torque (Nm) 20
Compatibility Karmek One, Caminetti Montegrappa
