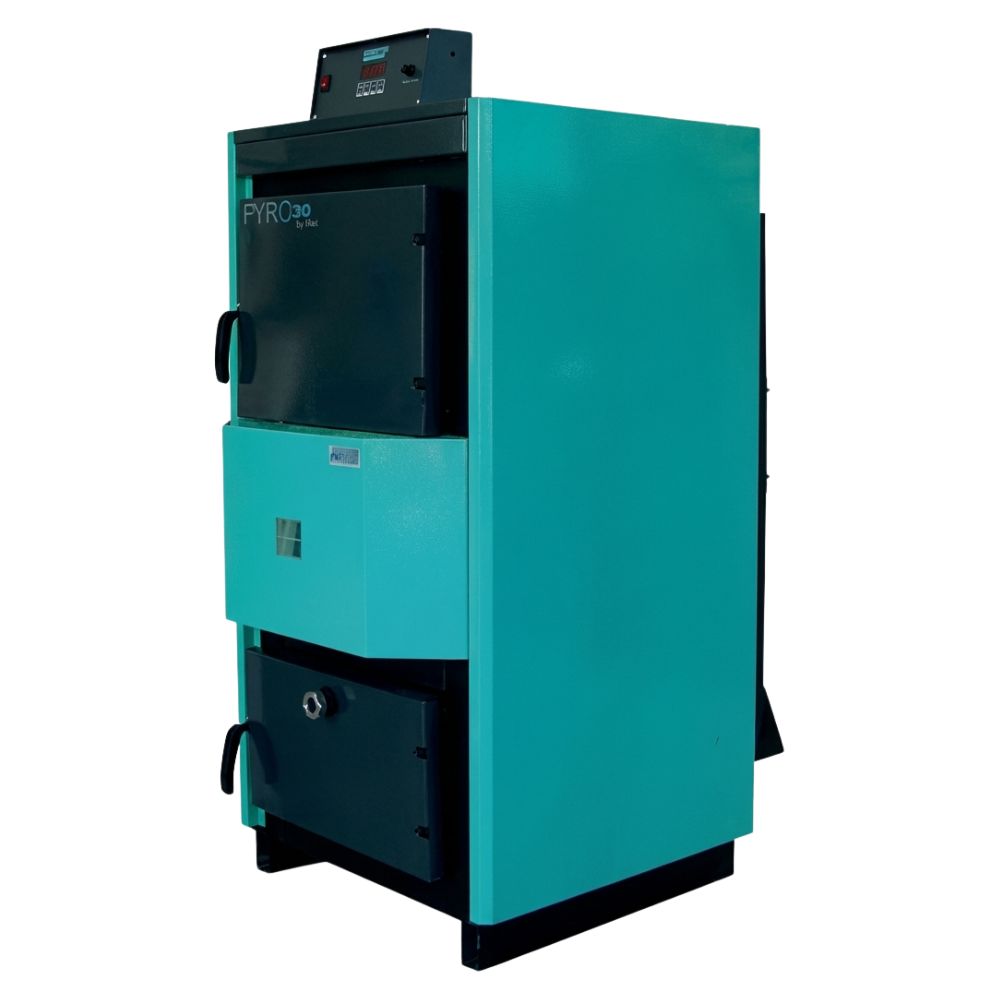

Wood gasification boiler for central heating Mavil Pyro 45, 44kW

Steel pyrolysis boiler PYRO – High efficiency and long life

The PYRO pyrolysis boiler is a modern solution for wood heating, based on the principle of wood gasification . Thanks to its innovative design, which complies with the EN 303-5 standard , the boiler ensures maximum thermal efficiency, minimal unburned residues and exceptional autonomy of operation.

How does the PYRO pyrolysis boiler work?

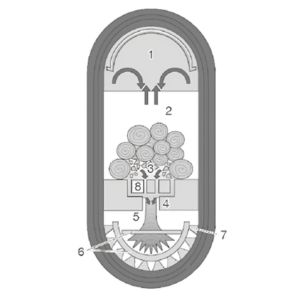

Unlike traditional wood-fired boilers, PYRO uses reverse flame combustion . The fuel mixture – composed of wood gases produced in the upper combustion chamber and primary combustion air – passes through the openings in the lower part of the boiler, where the characteristic reverse flame is created . This guarantees complete combustion of the fuel and significantly reduces the formation of unburned residues.

1. Wood storage
2. Gasification area
3. Charcoal area
4. Fireproof hearth
5. Backfire combustion chamber
6. Flue gas baffles
7. Heat exchange surfaces
8. 20 mm thick stainless steel plates

Technical specifications

• Type: Steel pyrolysis wood-fired boiler
• Thermal power: from 44kW
• Standard: EN 303-5
• Thickness of steel sheets: 8 mm
• Insulation: Fireproof with high heat resistance

Main advantages of the PYRO boiler

Exceptional autonomy

When properly sized and used, a full charge of the combustion chamber provides about 12 hours of operation . This means only two charges in 24 hours – a convenience that all households appreciate.

High-durability materials

The combustion chamber is made of 8 mm thick steel sheets , which guarantees a long service life. The internal refractory insulation with high thermal resistance optimizes the use of high temperatures and minimizes condensation phenomena.

High thermal efficiency

The special absorber allows the use of combustion air at a pressure other than atmospheric. This improves the gasification and combustion of the wood, increases the thermal efficiency and temperature in the combustion chamber, further reducing unburned residues.

Easy and safe operation

The boiler has an electronic control panel that monitors all the necessary parameters. The automatic smoke absorption system when the door is open makes loading convenient and safe. The built-in overheating protection mechanism provides additional peace of mind.


What is the PYRO pyrolysis boiler suitable for?

The PYRO boiler provides economical and efficient heating, suitable for single-family houses, villas and small industrial sites . With a power of 34 to 59 kW, it covers the needs of larger residential areas.

Why choose a pyrolysis boiler over a traditional wood-fired boiler?
