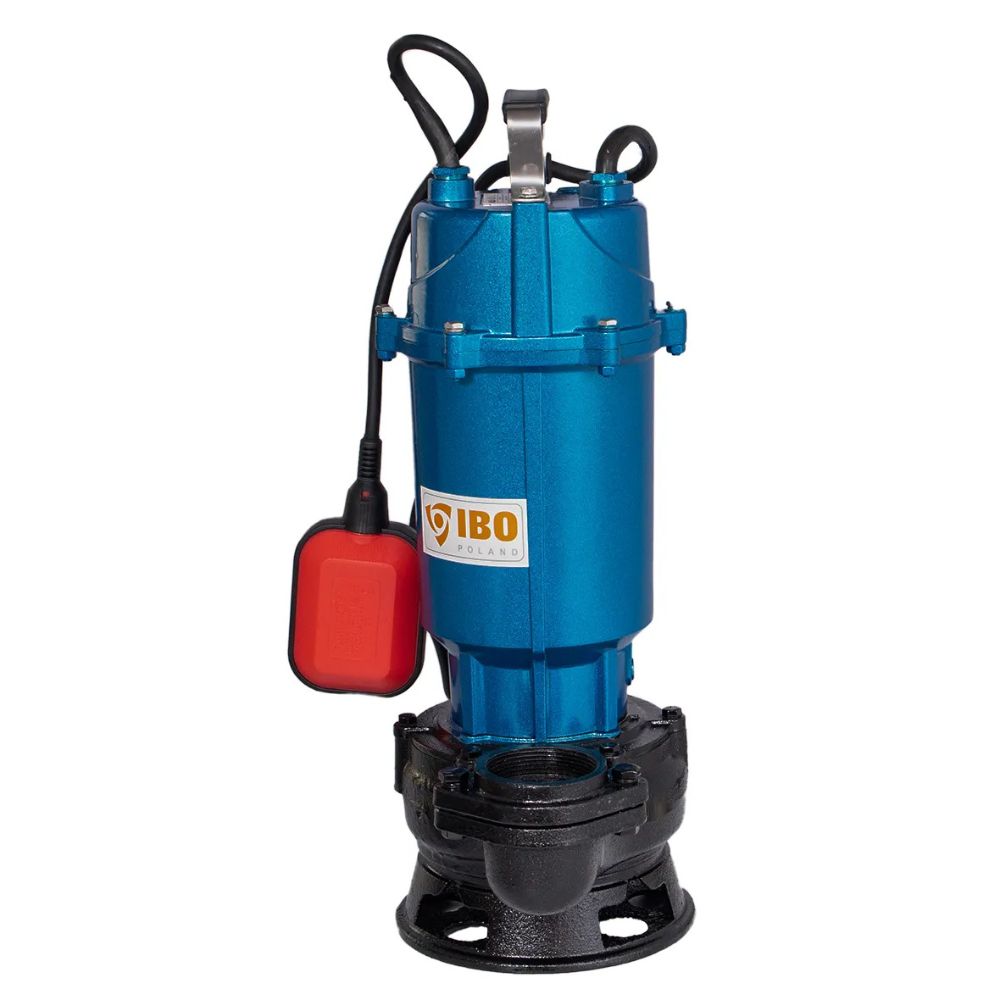

Submersible drainage pump for dirty water IBO Magnum 2900 with external float, power 550 W, head 11 m, flow 300 l/min

IBO Magnum 2900 is a compact and reliable submersible drainage pump , designed specifically for efficient pumping of dirty and waste water from septic tanks, flooded rooms, garages, basements and other problem areas. With a power of 550 W , a maximum flow rate of 300 l/min and a head of up to 11 meters , this model ensures fast and safe water removal even under heavy loads.

The motor housing is made of durable aluminum and the rotor is made of cast iron , which ensures high wear resistance when working with contaminated fluids. The IBO Magnum 2900 allows the passage of particles up to 35 mm , which makes it particularly suitable for domestic and light industrial applications where pumping of liquids with solid inclusions is required.

The built-in float switch ensures automatic shut-off at low water level, and the thermal protection in the motor winding protects the motor from overheating during prolonged operation. The pump has a 10-meter power cable , which facilitates its installation and mobility.

Technical parameters:

• Motor power: 550 W
• Voltage: 230 V
• Effort: 11 m
• Flow rate: 300 l/min
• Motor rotation speed: 2850 rpm
• Rotor bore: 35 mm
• Current consumption: 4.2 A
• Inlet/outlet: 2"
• Dimensions diameter/height: 26/40 cm
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Insulation class: B
• Operating mode: continuous
• Protection level: IP68
• Water pH: 5-8
• Motor housing: aluminum
• Shaft and rotor: stainless steel AISI 304
• Cable length: 10 m
• Weight: 12 kg
