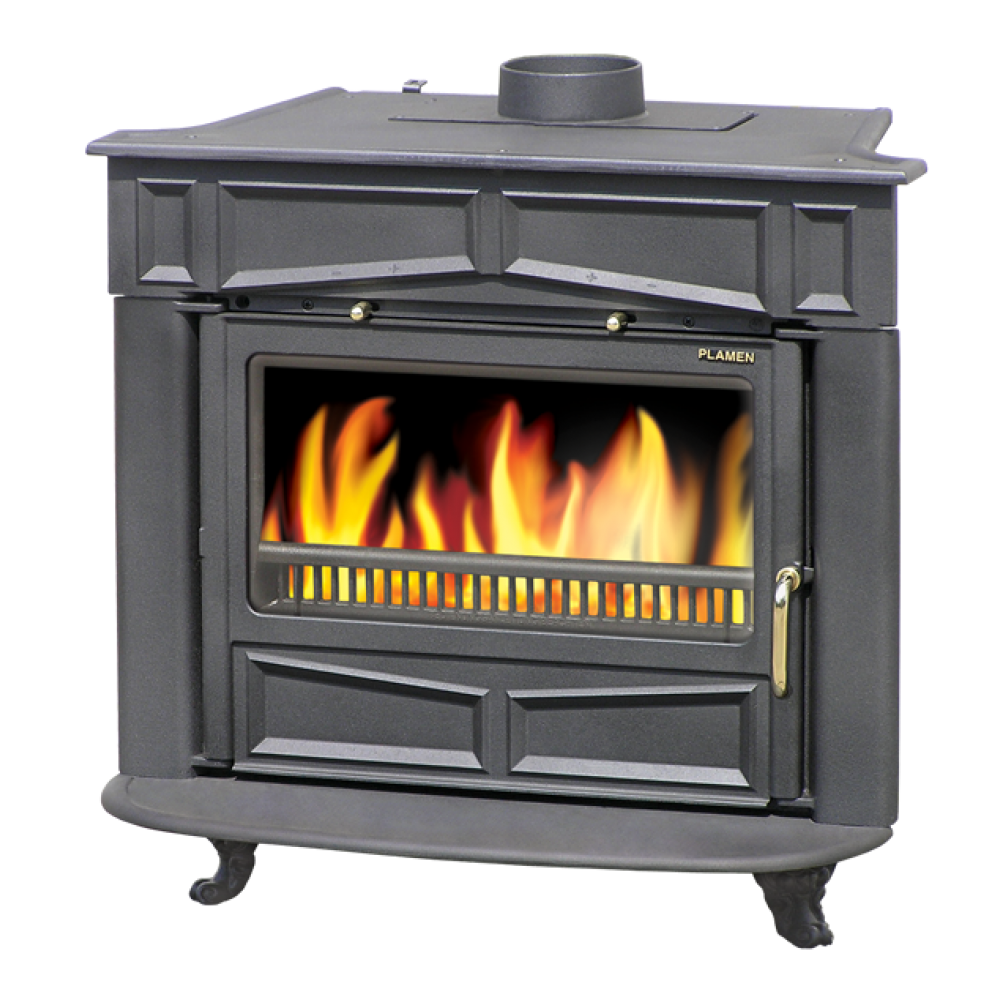

Wood burning stove Plamen Glas Franklin 11kW, Log
Type | File Information |
Declaration_of _performance_G las_Franklin.pdf File size 85.12KB | |
Manual_Glas_Fr anklin.pdf File size 8.18MB | |
Energy_efficie ncy_Glas_Frana klin.png File size 154.91KB |
Croatian cast iron wood heating stove Plamen Glas Franklin, part of the wood burner series. Comfort and coziness at an affordable price.
Free return
60 daysSee details
We accept payments
See details
Color: black
Fuel type – wood, coal.
Combustion chamber lined with firebricks that accumulate heat and increase burning temperature.
The combustion chamber is equipped with heat resistant ceramic glass.
Cast iron grate.
Equipped with two manual dampers:
Metal door handle.
Equipped with legs.
The stove may be either installed as a self-standing unit or encased in a masonry structure with customized decorative effects.
Panoramic door offers the view of the entire firebox and full experience of the open fire. The glass remains clean throughout the heating time.
Achieving the desired heat output depends on the selected fuel with the necessary caloricity and humidity; its subsequent kindling and refueling; the regulation of the primary and the secondary air as well as the draught; the organizing of effective air heat exchange etc.
Characteristics | |
Weight (kg) | 147.0000 |
Country of Manufacture | Croatia |
Dimension Depth (mm) | 630 |
Dimension Width (mm) | 860 |
Dimension Height (mm) | 800 |
Warranty | 2 Years |
Certification | CE |
Approximate heating surface (m²) | 77 |
Energy efficiency class | A |
Exhaust Location | Top side |
Nominal heat output (kW) | 11 |
Maximum heat output (kW) | 13 |
Efficiency (%) | 76.4 % |
Approximate heating capacity (m³) | 200 |
Construction material | Cast iron |
Heating type | Natural Convection |
Characteristics | Legs |
Lining | None |
Placement | Center |
Combustion chamber dimensions (Height, Width, Depth), mm | 260 x 550 x 310 |
Flue damper | No |
