Electric centrifugal single-stage pump with a maximum flow rate of 80 l/min, suitable for industrial and garden water supply
Save 5% with bank transfer.
Free return
60 daysSee details
We accept payments
See details
Applications
The electric single-phase centrifugal pump SAER CMP with a power of 0.37 kW is the ideal solution for domestic and garden water supply, as well as for maintaining pressure in hydrophore systems with expansion vessels. It operates at a voltage of 230 V and provides a maximum flow rate of 4.79 m³/h (80 l./min) and a head of up to 24.2 meters, making it an excellent choice for irrigation in agriculture and smaller industrial systems.
The pump body is made of cast iron, the shaft is made of stainless steel, and the impeller is made of durable technopolymer, which guarantees long-lasting and stable operation under intensive use. With a protection rating of IP44 and insulation class F , it provides safety and reliability in various climatic conditions.
Thanks to its compact size and low weight of 10 kg , the SAER CMP is easy to install and is suitable for horizontal, ground-mounted installation. It operates at a speed of 2900 revolutions per minute, maintaining a water temperature of up to +70°C and a maximum ambient temperature of up to +40°C .
Features
24,2 m | |
4.79 m3/h | |
16 - 24,2 m | |
4.79 - 0.1 m3/h | |
0,37 kW | |
230V | |
1'' | |
Shaft - stainless steel, housing - cast iron, impeller - technopolymer | |
IP44 | |
ground, horizontal | |
F | |
2900 rpm | |
10 | |
+70°C | |
+40°C |
Characteristics | |
Power (kW) | 0.37 |
Rate of flow | 80 l/min |
Water pump head (m) | 24 |
Type | File Information |
![]() |

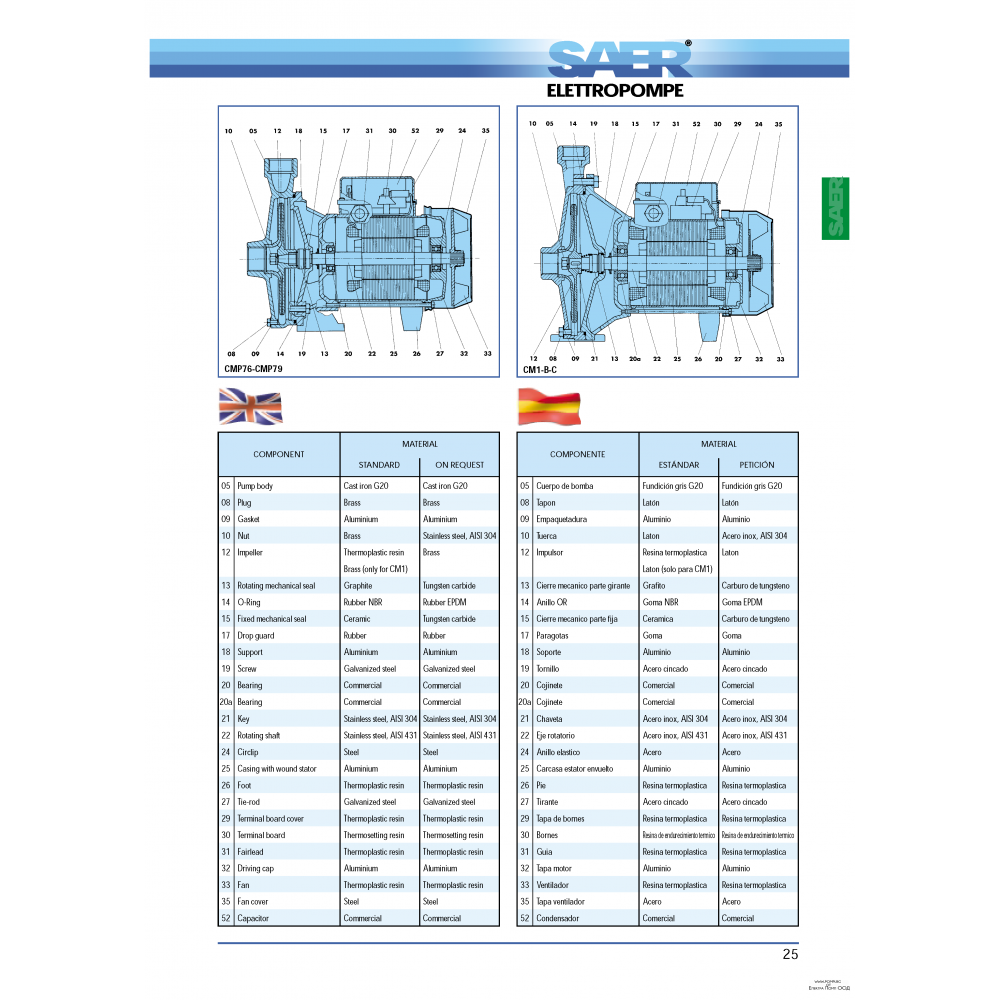

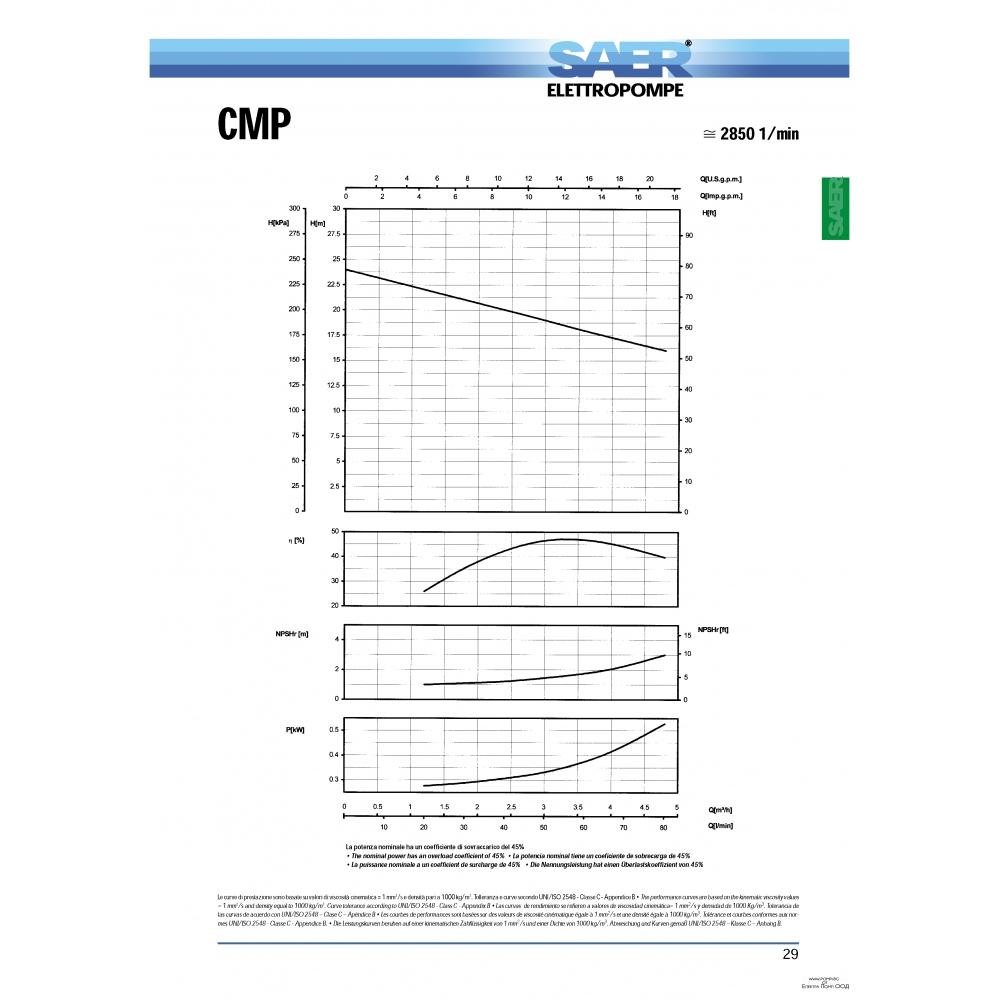

Technical data_cmp.pdf File size 311.87KB |
