Electric centrifugal single-stage pump with a maximum flow rate of 100 l/min and a head of up to 30 m, suitable for domestic and small industrial needs.
Save 2% with bank transfer.
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details
Applications
The single-phase, single-stage centrifugal pump SAER CMP is a reliable and efficient solution for domestic and small industrial needs. It has a power of 0.55 kW and a standard operating voltage of 230 V. The inlet and outlet connection is 1" and the maximum flow rate reaches 6.03 m³/h (100 l./min) , at a head of 21 to 30 meters. Thanks to its compact design and weight of 12 kg , its installation is easy and convenient, even in limited spaces.
Made with a high-quality cast iron housing, stainless steel shaft and durable technopolymer impeller, the pump ensures a long service life and corrosion resistance. It is suitable for horizontal, ground-mounted installation and can be used both for garden and agricultural irrigation and for pressure boosting in hydrophore systems with expansion vessels.
With protection class IP44 and insulation class F , the pump guarantees safe and stable operation in various conditions. It supports a maximum water temperature of up to +70°C and an ambient temperature of up to +40°C , making it applicable in a wide range of domestic and semi-industrial situations. Its operating speed of 2900 rpm ensures high performance with minimal maintenance effort.
Features
| 30 m | |
| 6.03 m3/h | |
| 21 - 30 m | |
| 6.03 - 0.1 m3/h | |
| 0,55 kW | |
| 230V | |
| 1'' | |
| Shaft - stainless steel, housing - cast iron, impeller - technopolymer | |
| IP44 | |
| ground, horizontal | |
| F | |
| 2900 rpm | |
| 12 | |
| +70°C | |
| +40°C |
| Characteristics | |
| Power (kW) | 0.55 |
| Rate of flow | 100 l/min |
| Water pump head (m) | 30 |
| Type | File Information |

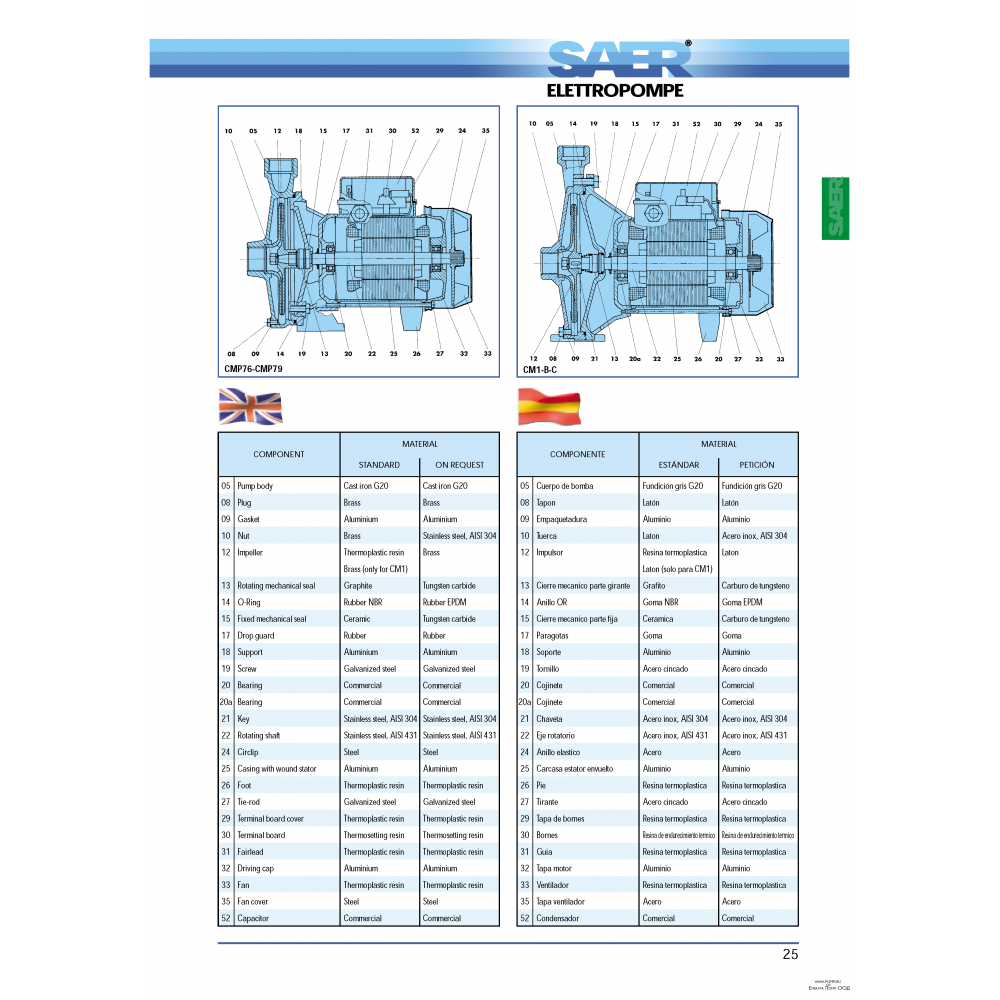

| Technical data_cmp_76-380v.pdf File size 311.81KB |
