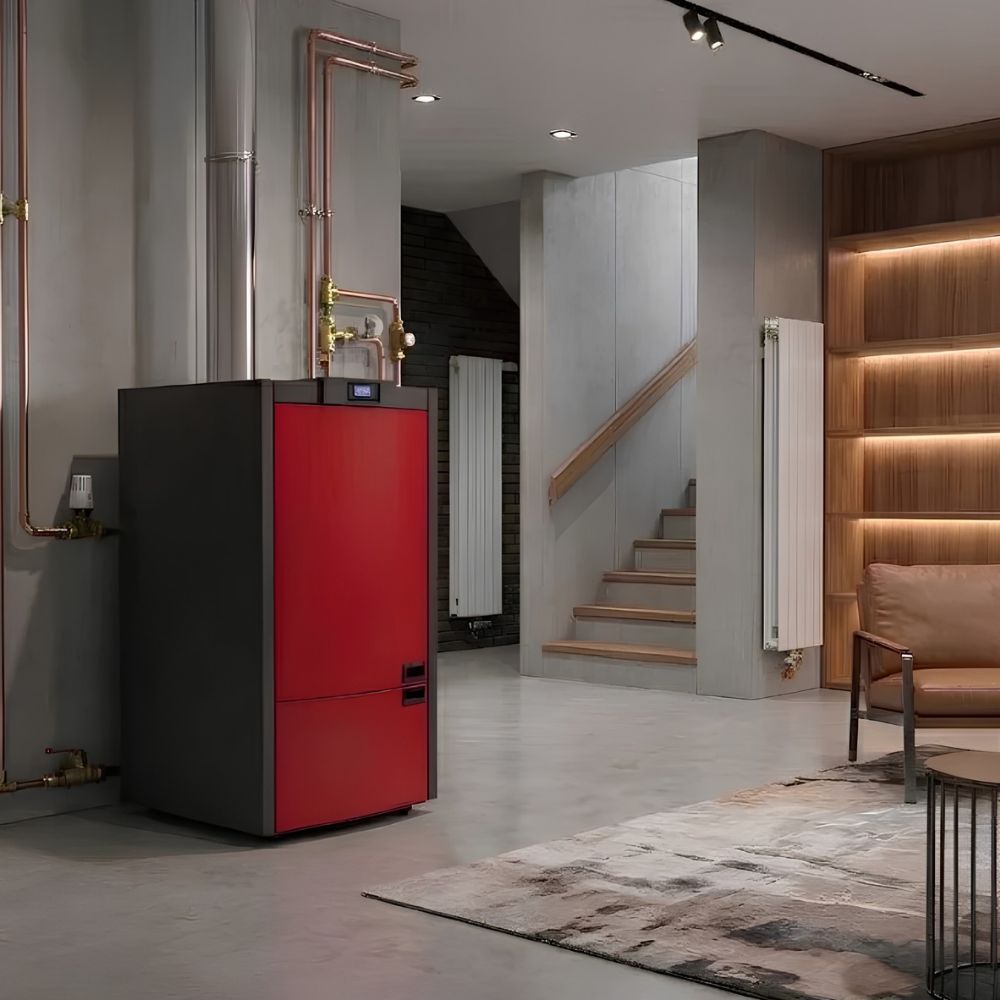

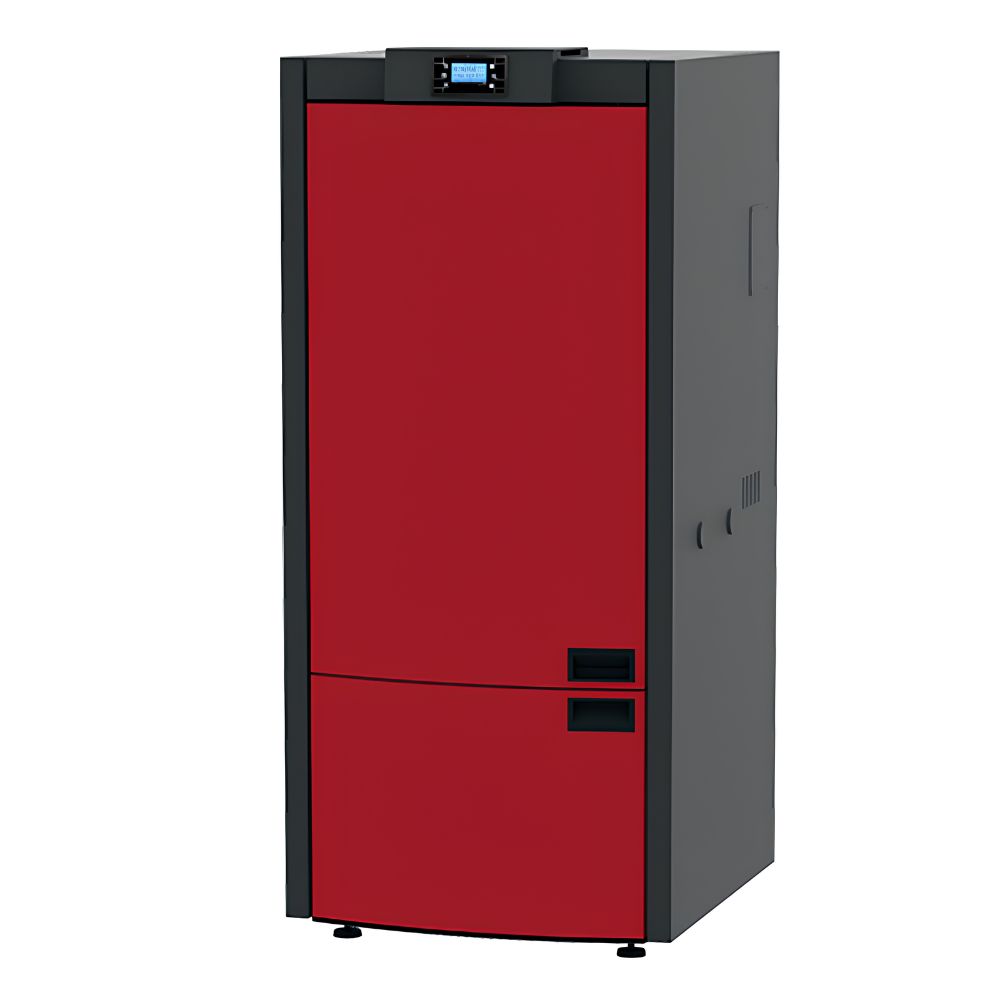

Pellet boiler Alfa Plam Commo Compact 32, 32kW

The Commo Compact 32 kW central heating pellet boiler has well-balanced dimensions and a simple design. Suitable for installation in basements and living spaces. The pellet boiler is designed for central heating of small buildings or offices. A high level of automation and innovative semi-automatic cleaning ensure maximum ease of use. High efficiency. Longer autonomous operation is possible by installing an additional pellet hopper.

Advantages:

• ​The vermiculite insulation of the combustion chamber door and the additional insulation of the boiler increase efficiency and the output transferred to the water.
• The components required for the heating system to operate are factory-fitted in the product.
• Built-in safety thermostats prevent the water in the boiler from overheating.
• The cleaning systems make the stove even easier to maintain and ensure reliable operation.
• Weekly programming of stove operation with 5 power levels.
• Option to heat domestic hot water (in the boiler) and connect to an underfloor heating system.
• Remote control via Android and iOS app (optional).
• The base of the pellet boiler firebox is made of very thick cold-rolled steel sheet, while the decorative casing has a high-quality, heat-resistant powder coating. The top, bottom and firebox are made of special sheet steel.
• The inside of the firebox is lined with a double steel sheet, which ensures high thermal resistance of the boiler. The firebox is fitted with an insulated door, which reduces heat loss. The door closes hermetically. The boiler is insulated with stone wool.

Micronova smart control:

• Contemporary design;
• High combustion efficiency;
• Economical and environmentally clean combustion;
• Reduced harmful emissions;
• Several power levels;
• Weekly programmer;

The pellet boiler's values may vary depending on the installation site. The technical data are given for information only and are not binding. The manufacturer reserves the right to make changes at any time in order to improve the product's characteristics.

Efficiency and energy efficiency class

Alfa Plam Commo Compact meets the Ecodesign standard. It has energy efficiency class A+, CE certification and a 2-year warranty. This ensures economical pellet consumption, complete combustion of the fuel and low harmful emissions, in line with European requirements. The Micronova control system and forced air circulation maintain optimal combustion at every power level. The recommended fuel is wood pellets with a diameter of 6–8 mm. The flue diameter is 80 mm, standard for pellet appliances.

Initial commissioning and set-up by an authorised technician are mandatory and are paid for by the customer.



① Flue gas fan

② Gear motor

③ Auger

④ Ambient temperature probe

⑤ Flue gas temperature probe

⑥ Igniter
⑦ Combustion chamber
⑧ Turbulator
⑨ Pellet hopper
⑩ Scraper for cleaning the flue gas chamber
