Smoke extractor for pellet stoves Eco Spar, Nordica Extraflame, Palazzetti, Piazzetta, Sideros, Palladio and others fan 160m³/h 50W 300Pa

Smoke extractor for pellet stoves Eco Spar, Nordica Extraflame, Palazzetti, Piazzetta, Sideros, Palladio and others fan 160m³/h 50W 300Pa

Fully compatible for EcoSpar pellet stoves up to 25kW

  • Stock: In Stock
  • SKU: 16.458.006
€ 143.64
incl. VAT
Ex Tax: € 119.70
2 or more € 140.40
3 or more € 132.60
Estimated delivery
17.Dec.2024
DHL Schenker
See Shipping Policy

Free return
60 daysSee details

We accept payments
    See details

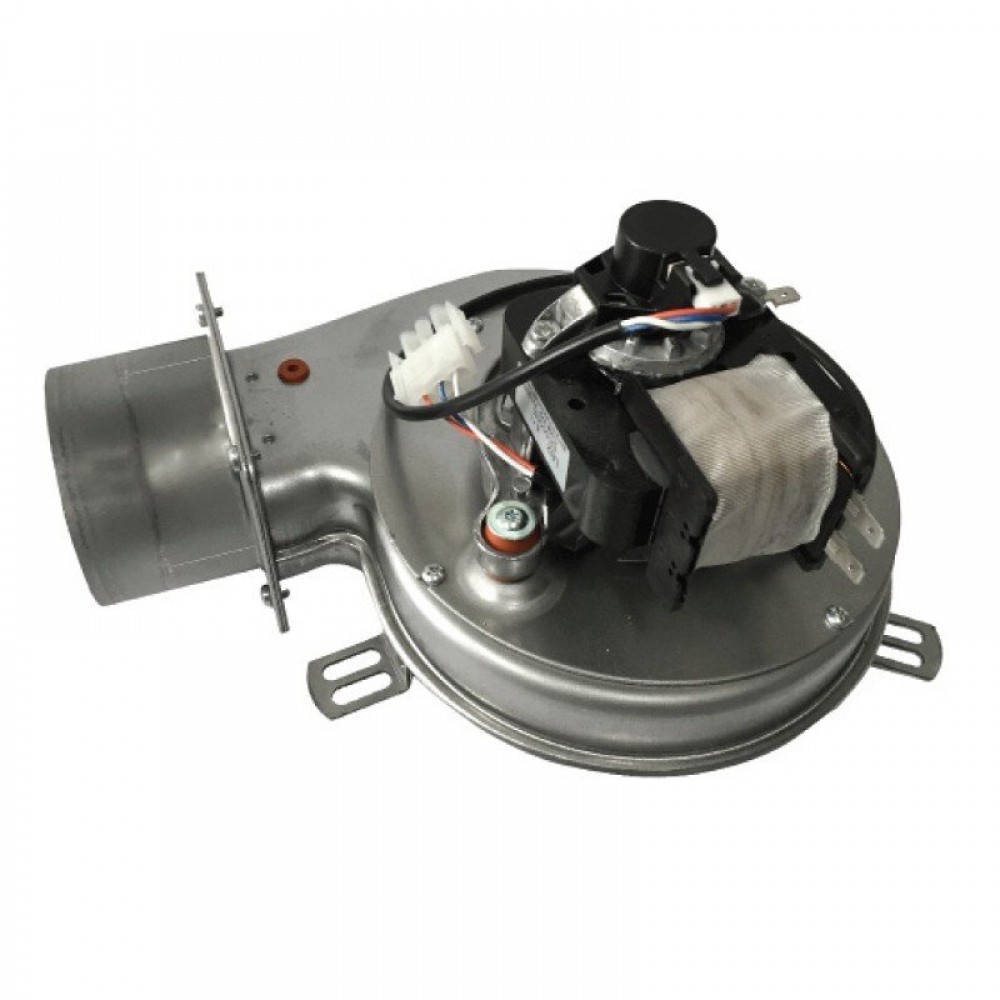

The smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 25 KW.

Can be mounted on:

EcoSpar - Auriga-Alba-Gemini-Karina-Tukana-Solara

NORDICA - MCZ - AMG

PALAZZETTI ref.  895713870 mod. Angelica - Caterina - Giada da rivestire - Isabella - Letizia - Margherita new - Penelope - Silvia - Slimmy - Tracy

PIAZZETTA ref. RF02010660 mod. P158T

SIDEROS mod. Gemini più

PALLADIO mod. Scozia 10 Kw

It can be set up in place of LN2 PL20 model and XIANG RRL152

Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.

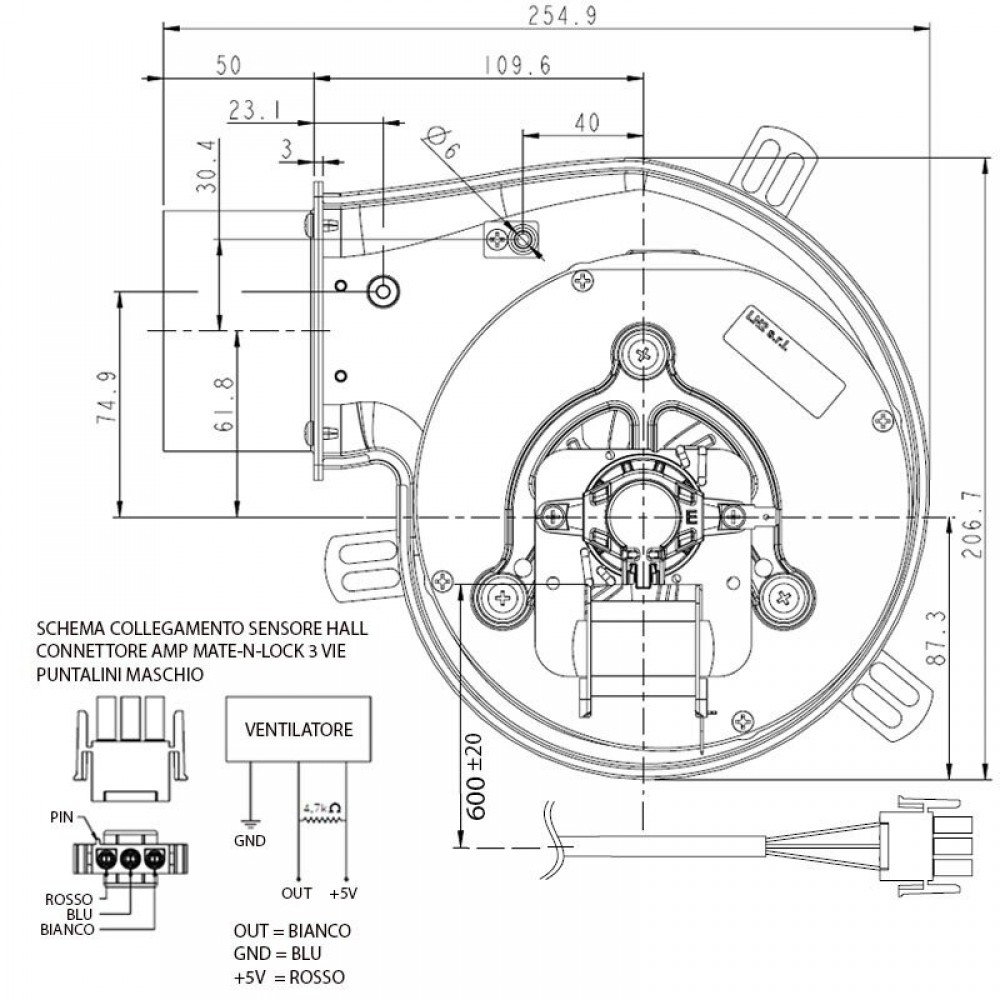

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).

In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.

Characteristics
Weight (kg) 1.0000
Power consumption (W) 50
Type Smoke extractor fan
Rotation speed (rpm) 2500
Generated pressure (Pa) up to 300Pa
Flange connector (mm) 80
Maximum airflow rate (m³/h) 160
Compatibility Eco Spar, La Nordica, Palazzetti, Piazzetta, Sideros, Palladio
