Tangential fan for pellet stoves.
Save 2% with bank transfer.
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details

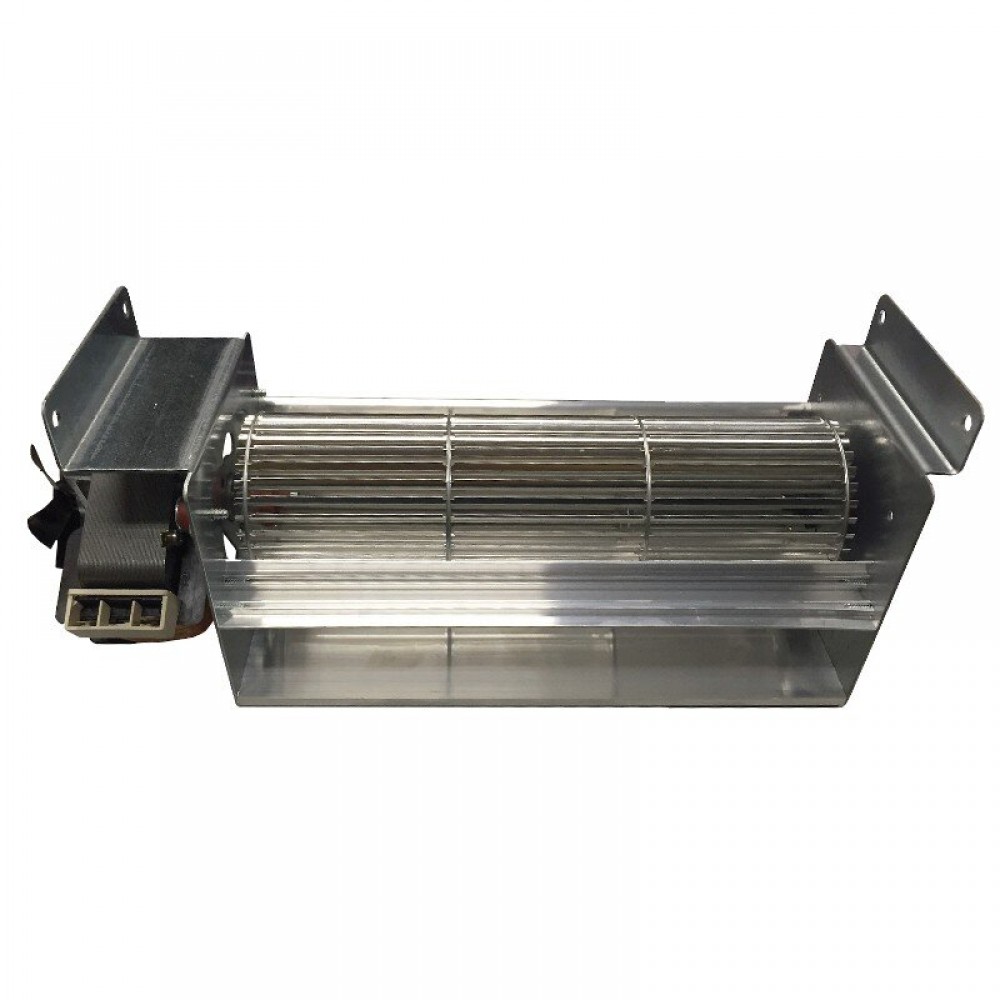

TGO 80/1-270/35 EMMEVI - FERGAS 153455 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
For stoves ITALIANA CAMINI - EDILKAMIN code 284870 for Iris model from the serial number 3617039 up to the serial number 3702078- while for 2004 and 2005 models they require the code 14706012
The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 337 m³/h.

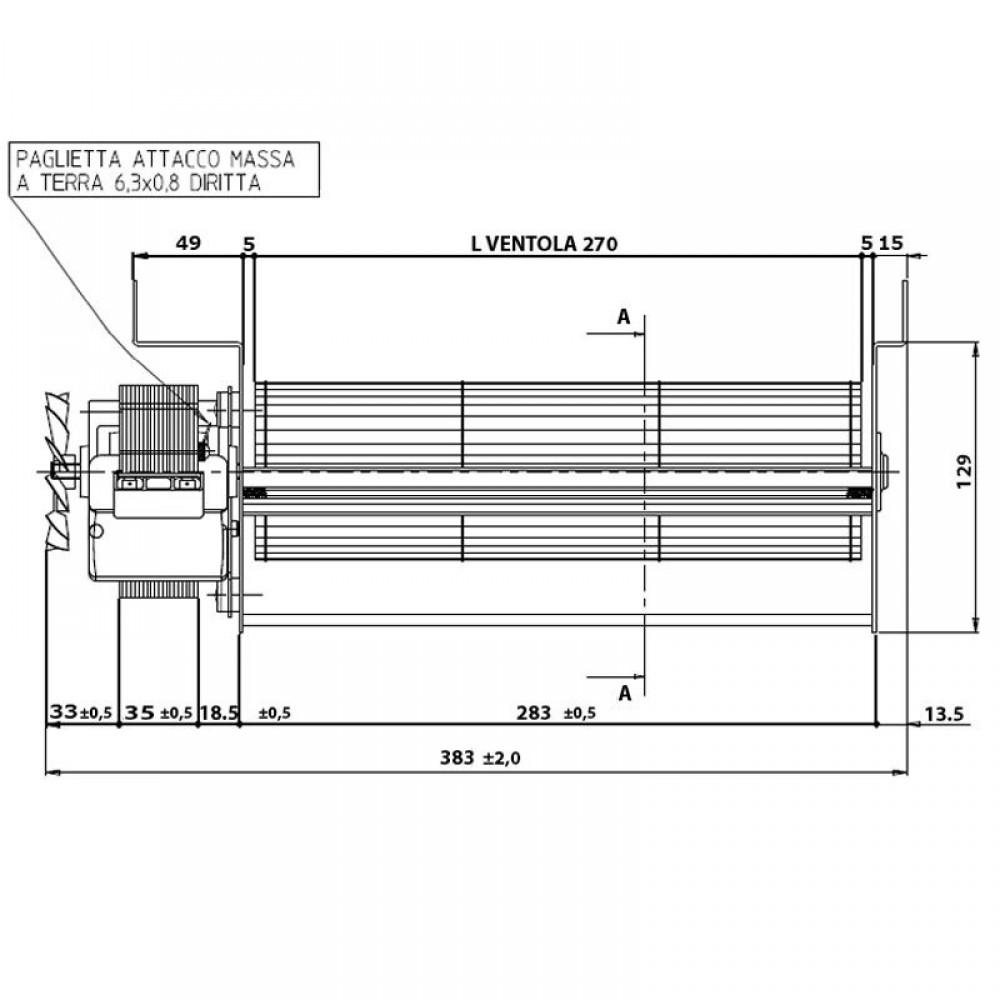

Thanks to its small size, its 383 mm total length and its 283 x 44 mm nozzle dimensions, the fan has severel employments.
It uses 82 Watt at full power.
| Characteristics | |
| Weight (kg) | 2.0000 |
| Country of Manufacture | Sweden |
| Dimension Depth (mm) | 130 |
| Dimension Height (mm) | 157 |
| Warranty | 6 months |
| MPN | 14706052 |
| Electric power supply (V/Hz) | 220-240/50-60 |
| Power consumption (W) | 82 |
| Type | Tangential fan |
| Total length [mm] | 383 |
| Maximum airflow rate (m³/h) | 337 |
| Magnetic core (mm) | 35 |
| Fan diameter (mm) | 80 |
| Fan length | 270 |
| Nozzle dimensions (mm) | 283 x 44 |
| Compatibility | Edilkamin, Italiana Camini |
