Smoke extractor/extractor fan for pellet stoves
Free return
60 daysSee details
We accept payments
See details

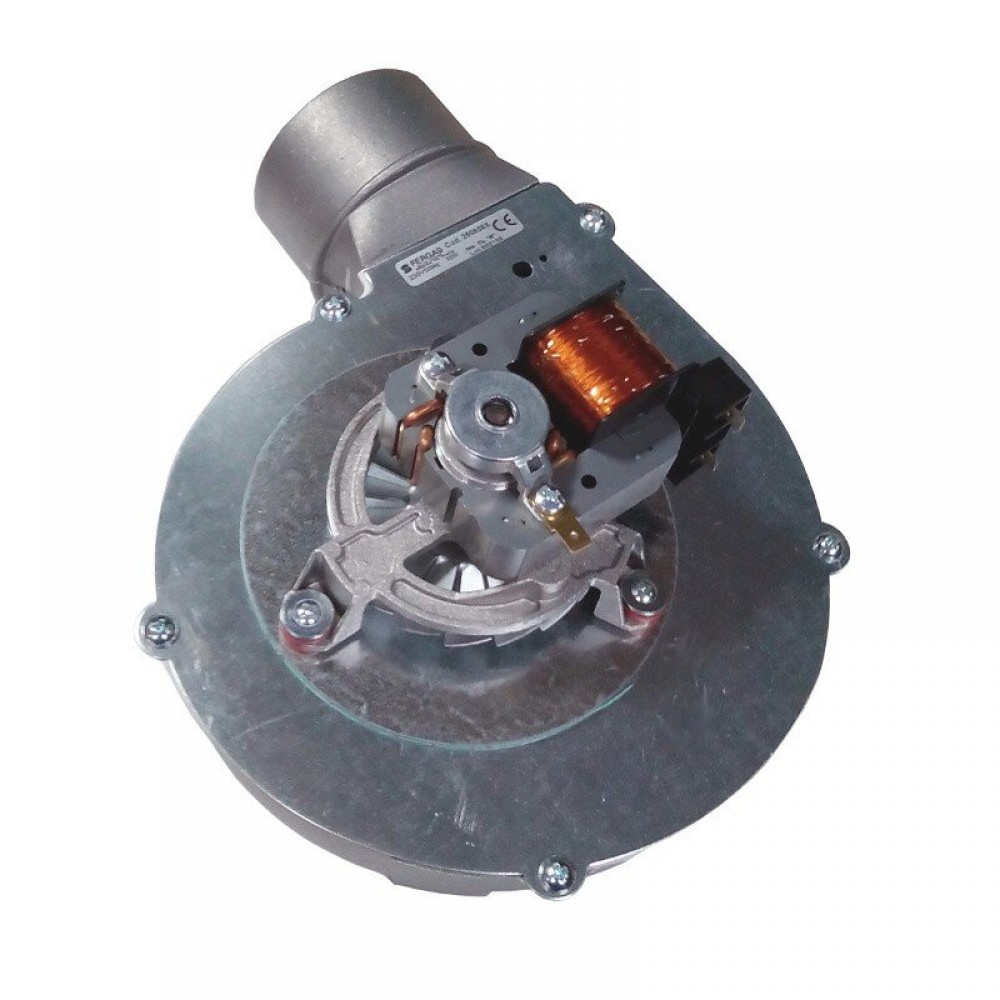

EMMEVI - FERGAS VFC1 120/NS-H20 cod. 260656X smoke extractor has been designed to be used for pellet stoves and biomass boilers.
Provided with spiral, which output diameter is of 80 mm, and inox steel rotor.
Designed to generate up-to-200Pa-pressures with a maximum airflow range of 132 m³/h. Insulation class: H
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Dimension Depth (mm) | 130 |
Dimension Height (mm) | 211 |
Warranty | 6 months |
MPN | 14706006 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 35 |
Type | Smoke extractor fan |
Rotation speed (rpm) | up to 1976 |
Generated pressure (Pa) | up to 200 |
Flange connector (mm) | 80 |
Maximum airflow rate (m³/h) | 132 |
Rotor diameter (mm) | 150 |
Compatibility | Others |
