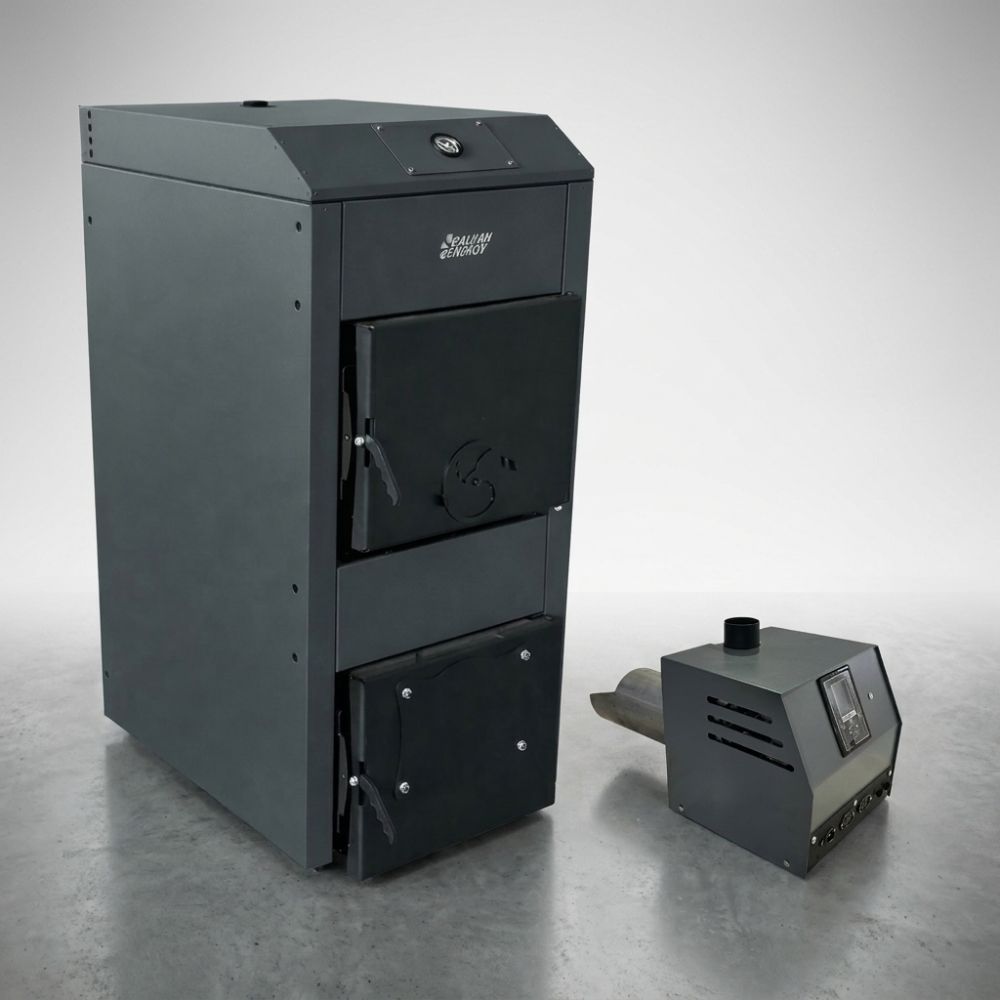

Wood boiler and pellet burner kit Balkan Energy, 40kW
- Stock: In Stock
- Brand: Balkan Energy
- SKU: 08.437.016
|
€ 22.32
Total: € 22.32
|
||||
|
€ 791.77
Total: € 791.77
|
||||
|
€ 424.58
Total: € 424.58
|
||||
|
€ 43.45
Total: € 43.45
|
||||
|
€ 99.00
Total: € 99.00
|
||||
|
€ 15.00
Total: € 15.00
|
||||
Main advantages
► Flexible heating – two types of fuel
-
Operation with solid fuel (wood) – classic mode with natural draft, controlled by a mechanical thermostat
-

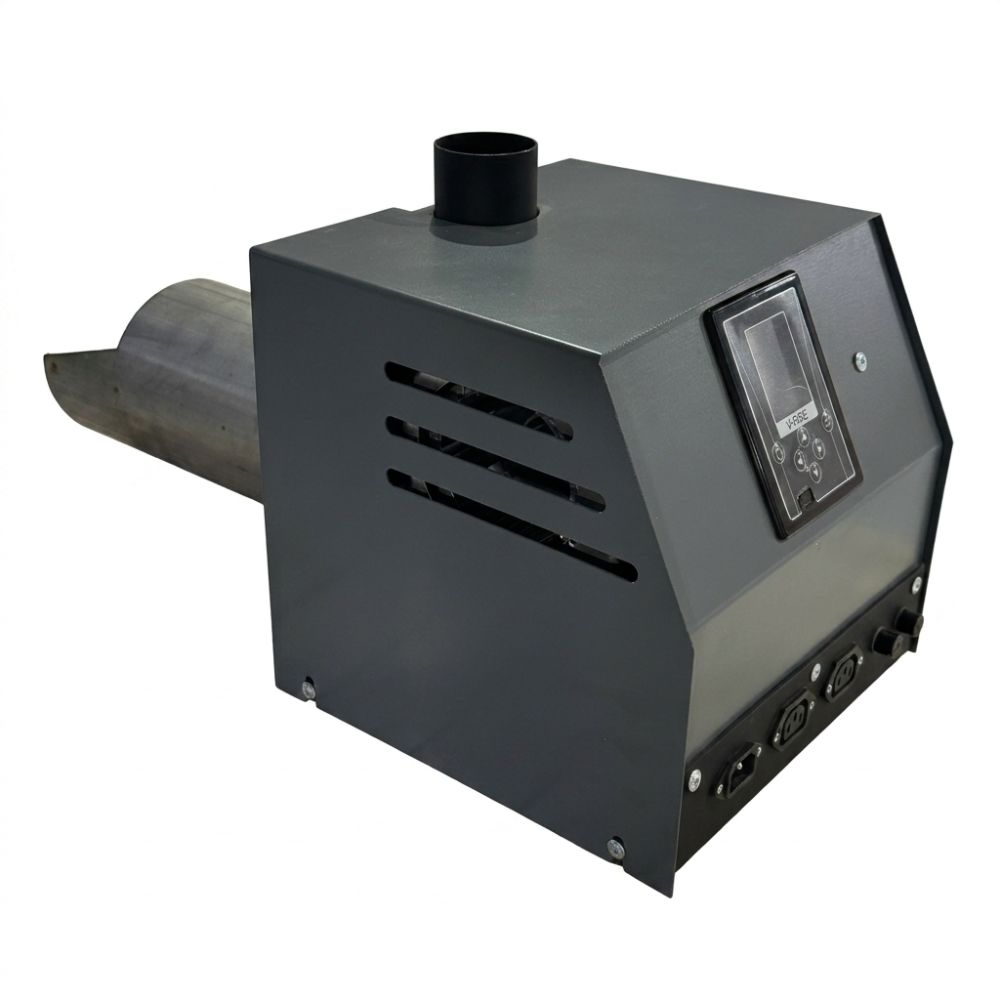

Pellet operation via a mounted pellet burner with fully automatic control
-
Easy switching between the two modes
► High efficiency
-
The boiler has a ribbed combustion chamber with a three-way flue gas path and turbulators.
-
Maximum heat exchange surface for optimal heat utilization
-
Energy class A+
-
The pellet burner operates with modulated power from 3.5 to 35 kW , adapting to the actual heating needs.
► Fully automated control (in pellet mode)
-

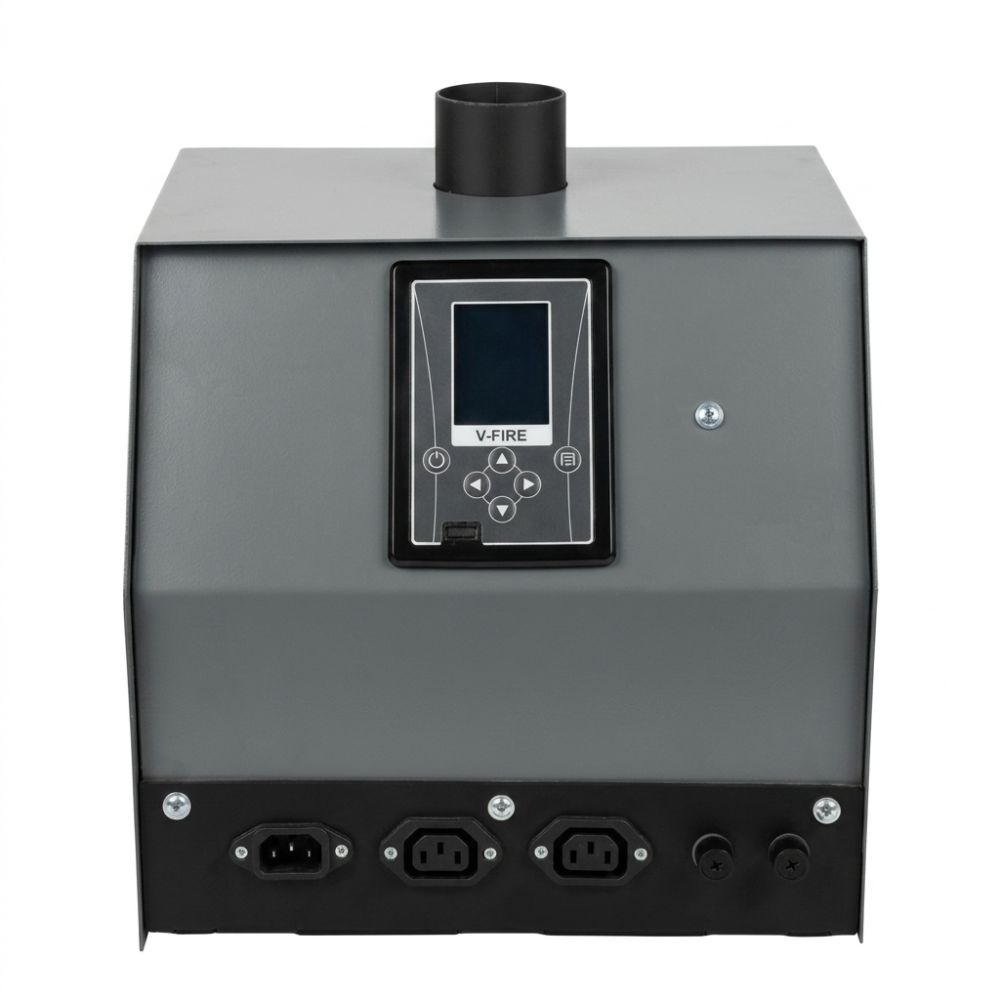

Intelligent control with color display in Bulgarian
-
Automatic power adjustment in 3 stages
-
Programming up to 3 working periods within the day
-
Remote control via smartphone app
-
Wi-Fi management and real-time internet monitoring
► Automatic mechanical cleaning
-
Removable combustion grate that automatically cleans the combustion chamber
-
Intermediate cleaning during operation without interrupting the process
-
Minimal need for manual maintenance
► Safety
-
Safety elements: thermostat for overheating protection, safety coil and safety valves
-
Full system self-diagnosis
-
Temperature sensor against backfire
-
Internal auger with backfire protection
Technical specifications
| Parameter | Boiler BE 40 | Pellet burner SC 35 |
|---|---|---|
| Thermal power | 40 kW | 4–35 kW (modulated) |
| Energy class | A+ | — |
| Heated area | 210 m² | — |
| Heated volume | 560 m³ | — |
| Fuel | Wood up to 450 mm | Pellets 6–8 mm |
| Control system | Mechanical thermostat | Color display, intelligent control |
| Ignition | — | Ceramic heater 300 W |
| Water shirt (manta) | 100 L | — |
| Combustion chamber | 85 L | 140 × 330 mm |
| Weight | 350 kg | 27 kg |
| Dimensions (W × H × D) | 590 × 1300 × 970 mm | 350 × 300 × 600 mm |
| Insulation | High-performance heat-resistant wool | — |
| Connecting to the water installation | G 1½" (inlet/outlet) | — |
| Chimney | 150 mm | — |
| Working pressure | 3 bar | — |
| Drainage | G ½" | — |
| Emergency coil | Yes | — |
| Overheating protection | Yes | Yes |
| Flue gas temperature (operating mode) | < 200°C | — |
| Consumption (Standby mode) | — | 2 W/h |
| Consumption (operating mode) | — | 15–150 W/h |
| Warranty | 2 years | 12 months |
| Certificate | CE, EN 303-5 | — |
Construction and materials
-
High-quality steel housing with a thickness of 5 mm
-

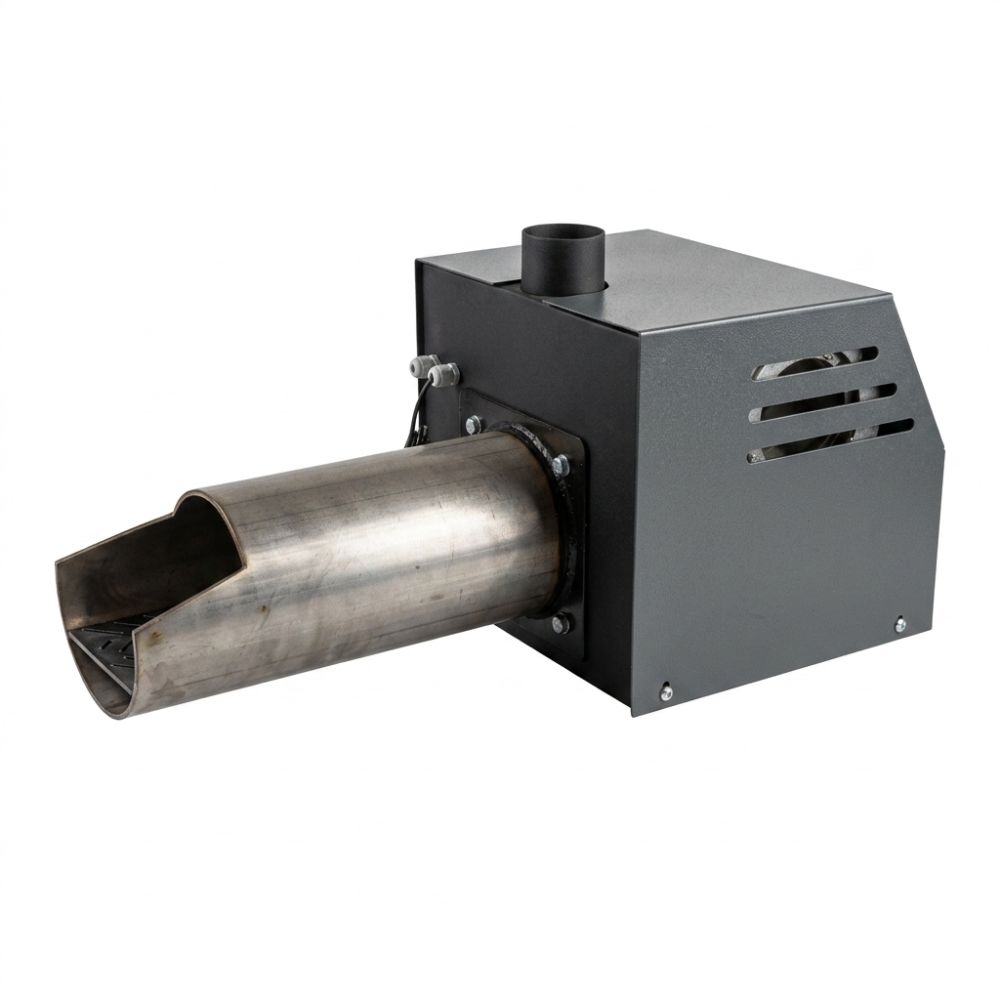

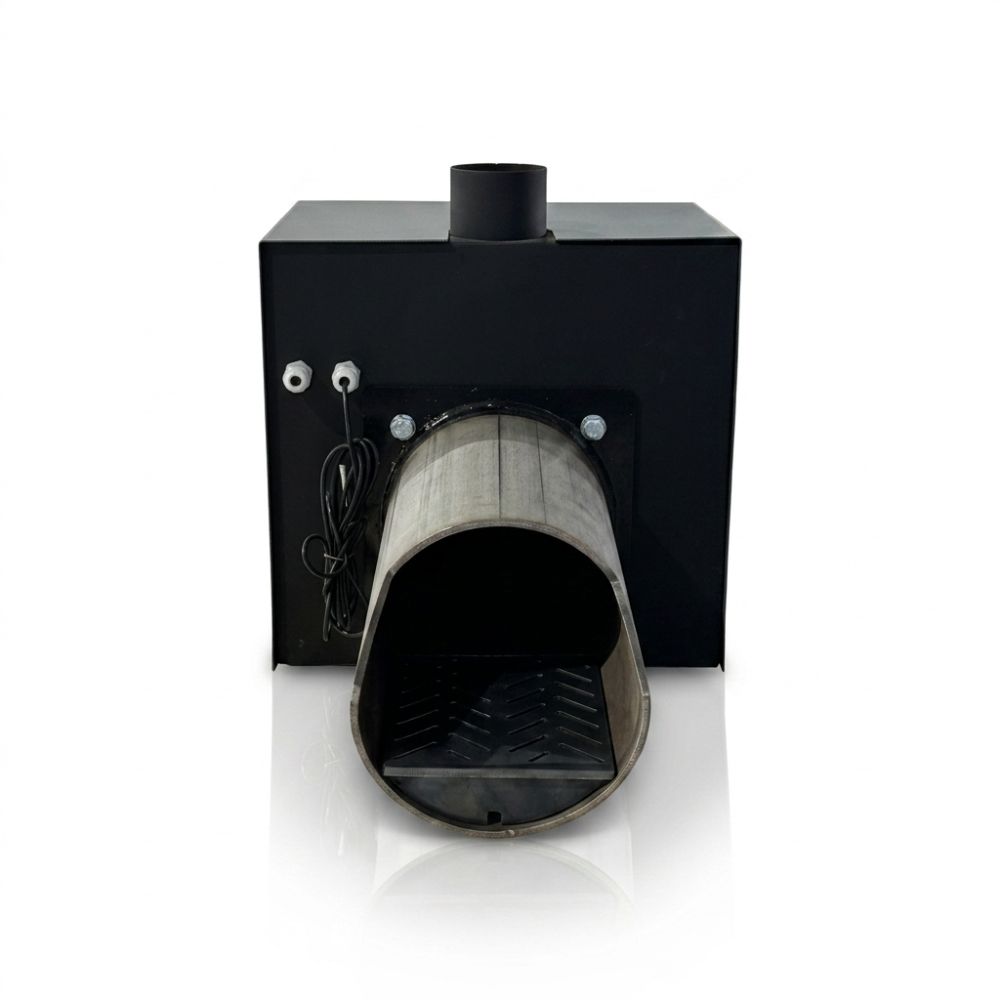

Pellet burner with 4 mm thick stainless steel head
-
High-efficiency ceramic boiler insulation
-
Glass wool in doors
-
CE certified boiler, compliant with EN 303-5 standard
Installation and management
The system offers flexibility in installation:
-
The boiler is pre-prepared with a hole for mounting a pellet burner.
-
The mounting kit (flange) is available separately.
-
Ability to control circulation pumps and domestic hot water boiler
-
Option to connect to a room thermostat and weekly programmer
Advantages of the combined system
✓ Economy – ability to choose the most profitable fuel at the moment
✓ Convenience – automated control in pellet mode
✓ Reliability – ability to use wood if necessary
✓ Productivity – energy class A+ and low emissions
✓ Control – internet monitoring and remote control
| Type | File Information |
 |
Declaration of conformity_EN.pdf File size 549.79KB |
|
EC Certificate _EN.pdf File size 981.57KB |
|
Energy label_Balkan Energy 40.pdf File size 170.91KB |
|
International Registration Certificate_EN.pdf File size 1.28MB |
|
Technical data _EN.pdf File size 6.42MB |
|
Test report_EN.pdf File size 3.02MB |
|
Instructions_Balkan Energy_EN.pdf File size 1.09MB |
