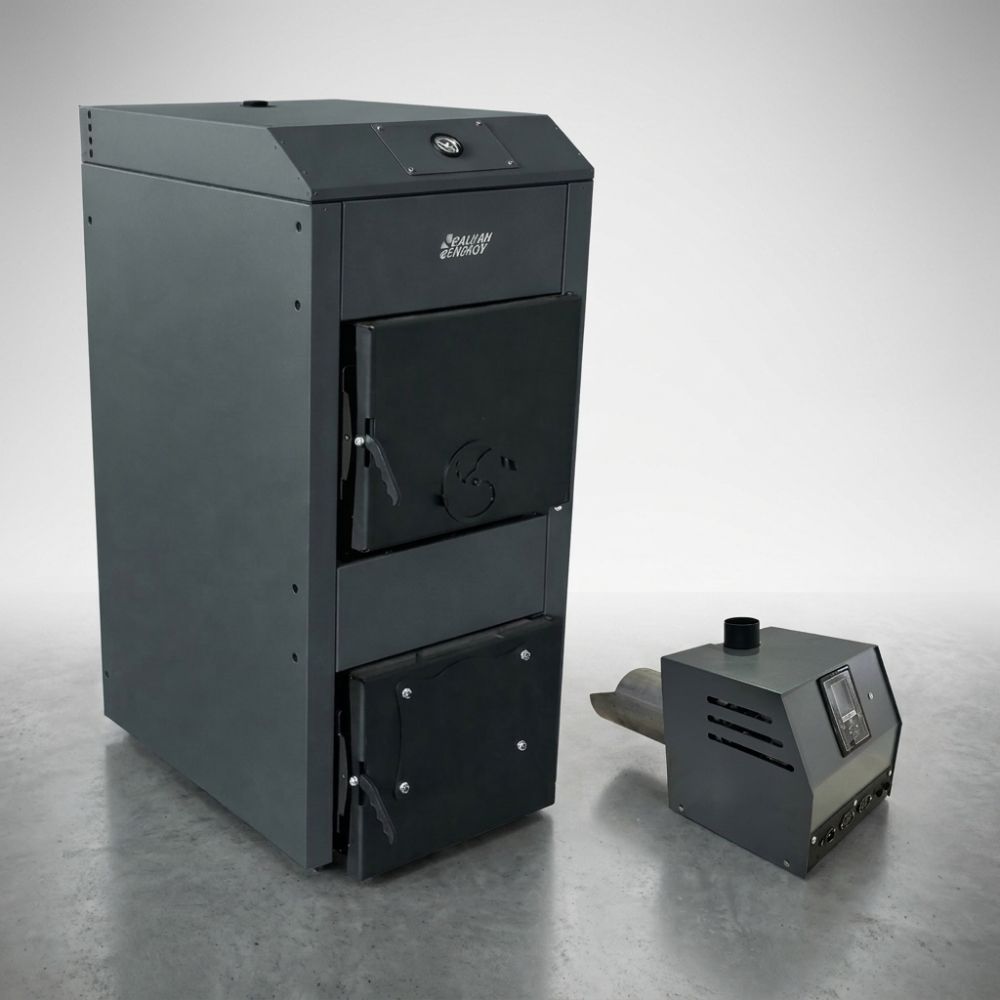

Wood boiler and pellet burner kit Balkan Energy, 30kW

Main advantages

► Flexible heating – two types of fuel

• Operation with solid fuel (wood) – classic mode with natural draft, controlled by a mechanical thermostat

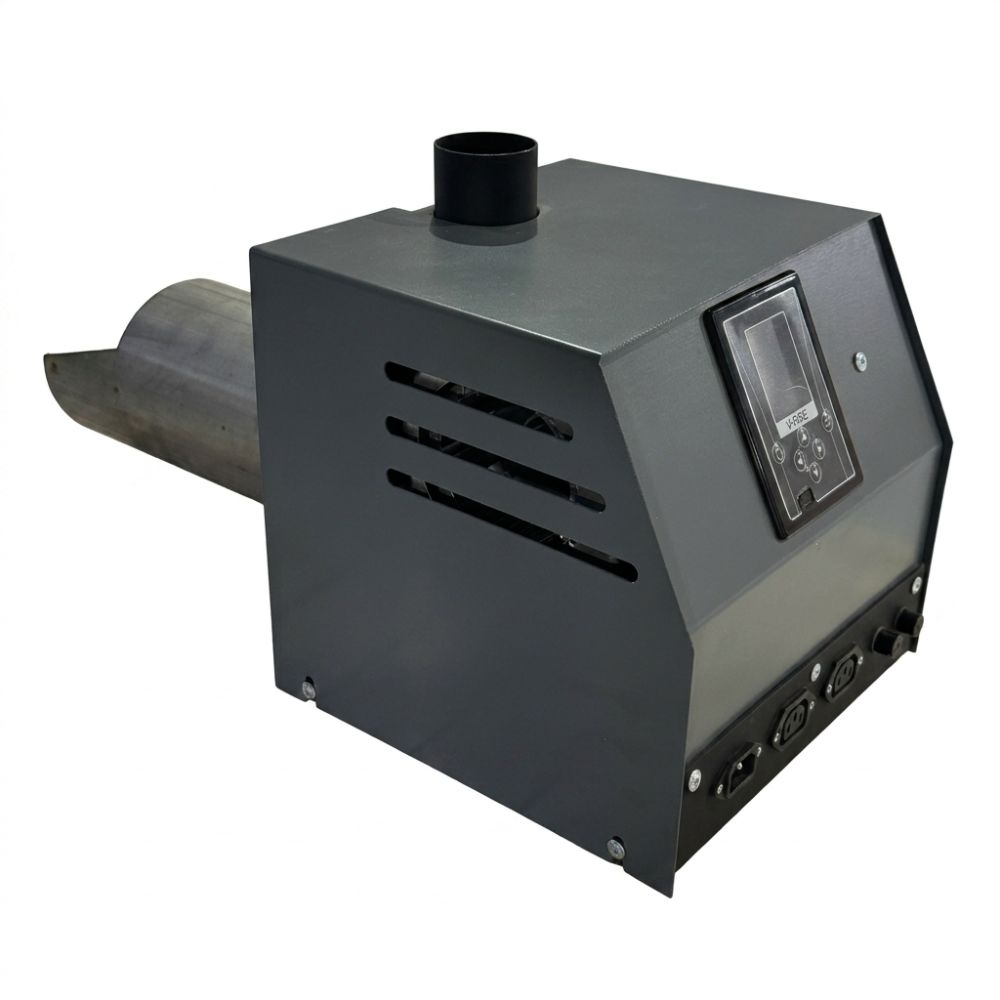

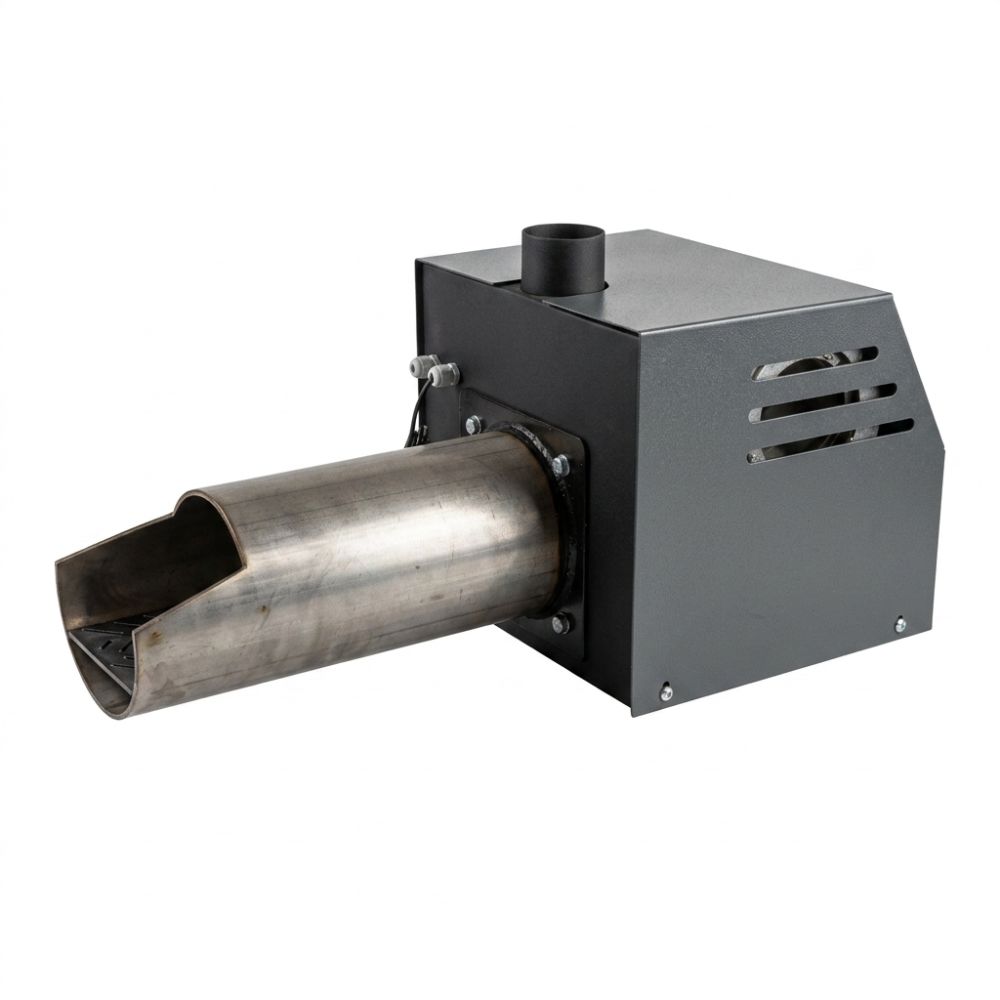

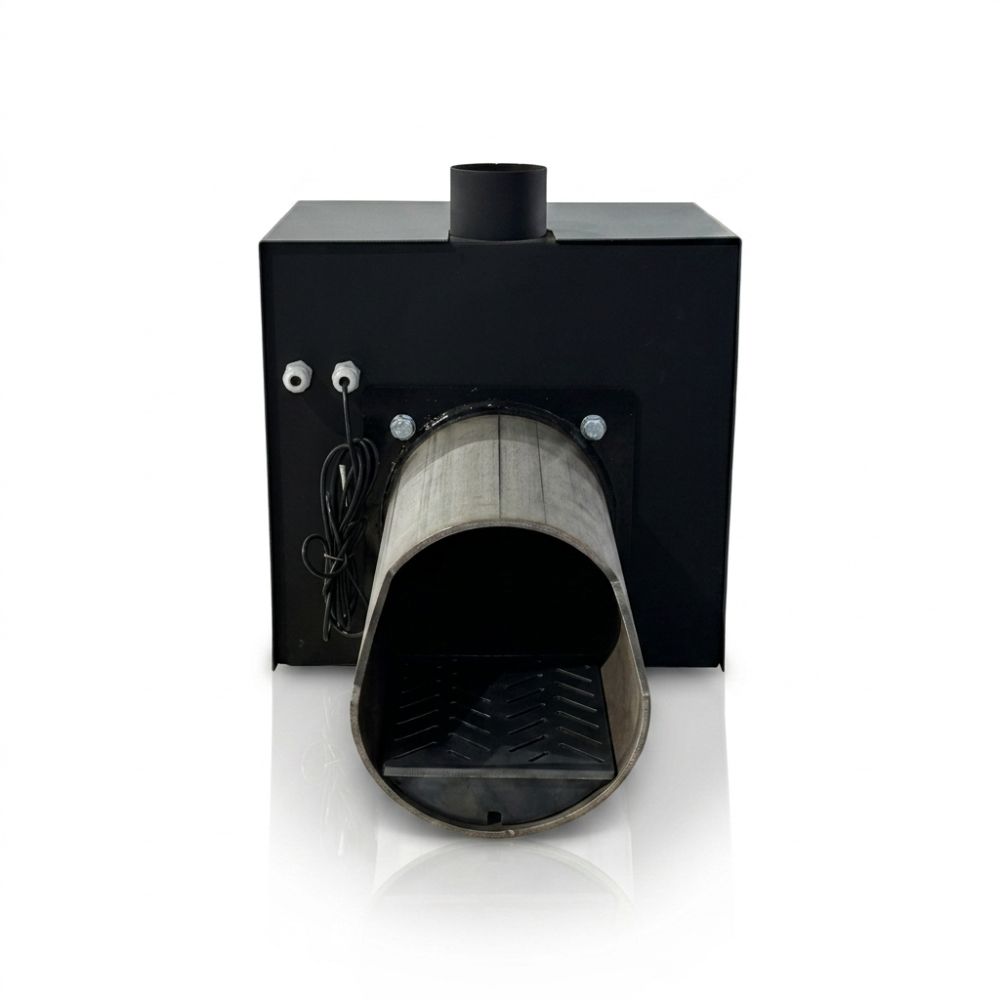

• Pellet operation via a mounted pellet burner with fully automatic control

• Easy switching between the two modes

► High efficiency

• The boiler has a ribbed combustion chamber with a three-way flue gas path and turbulators.

• Maximum heat exchange surface for optimal heat utilization

• Energy class A+

• The pellet burner operates with modulated power from 3.5 to 35 kW , adapting to the actual heating needs.

► Fully automated control (in pellet mode)

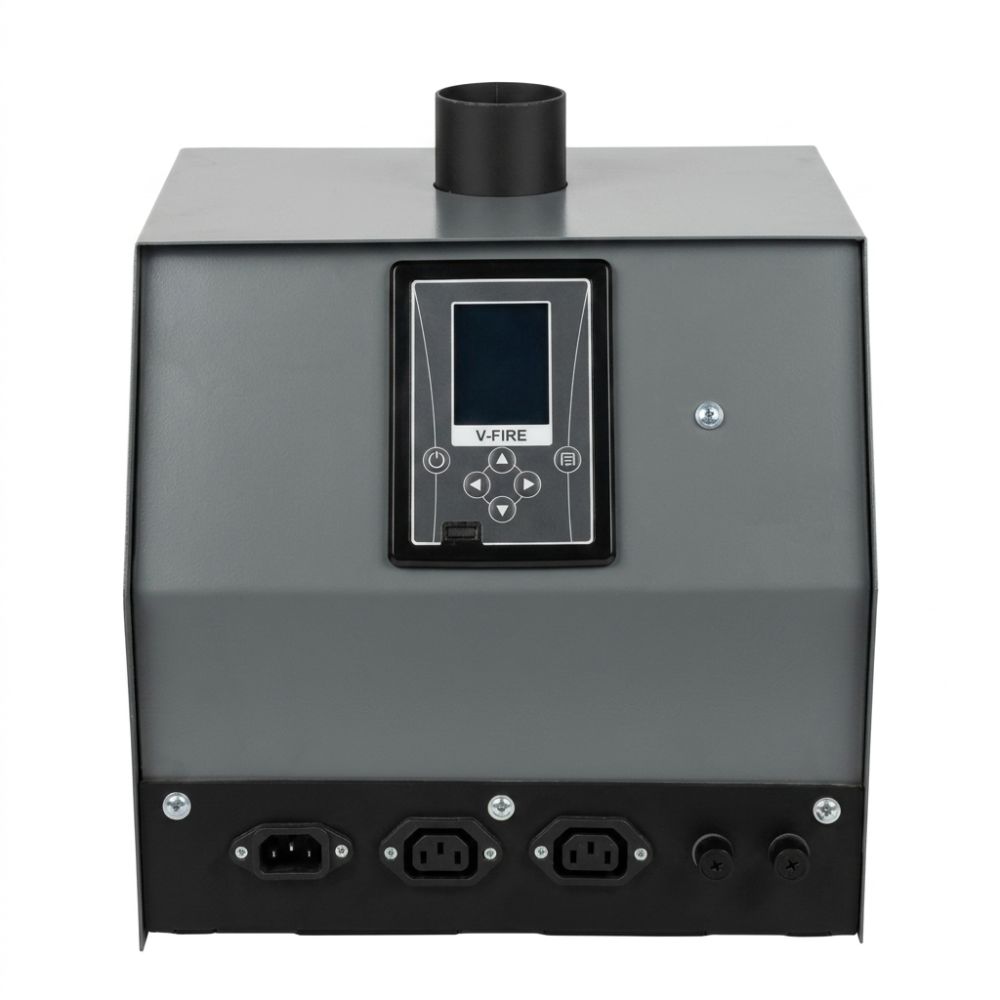

• Intelligent control with color display in Bulgarian

• Automatic power adjustment in 3 stages

• Programming up to 3 working periods within the day

• Remote control via smartphone app

• Wi-Fi management and real-time internet monitoring

► Automatic mechanical cleaning

• Removable combustion grate that automatically cleans the combustion chamber

• Intermediate cleaning during operation without interrupting the process

• Minimal need for manual maintenance

► Safety

• Safety elements: thermostat for overheating protection, safety coil and safety valves

• Full system self-diagnosis

• Temperature sensor against backfire

• Internal auger with backfire protection

Technical specifications

Construction and materials

• High-quality steel housing with a thickness of 5 mm

• Pellet burner with 4 mm thick stainless steel head

• High-efficiency ceramic boiler insulation

• Glass wool in doors

• CE certified boiler, compliant with EN 303-5 standard

Installation and management

The system offers flexibility in installation:

• The boiler is pre-prepared with a hole for mounting a pellet burner.

• The mounting kit (flange) is available separately.

• Ability to control circulation pumps and domestic hot water boiler

• Option to connect to a room thermostat and weekly programmer

Advantages of the combined system

✓ Economy – ability to choose the most profitable fuel at the moment
✓ Convenience – automated control in pellet mode
✓ Reliability – ability to use wood if necessary
✓ Productivity – energy class A+ and low emissions
✓ Control – internet monitoring and remote control
