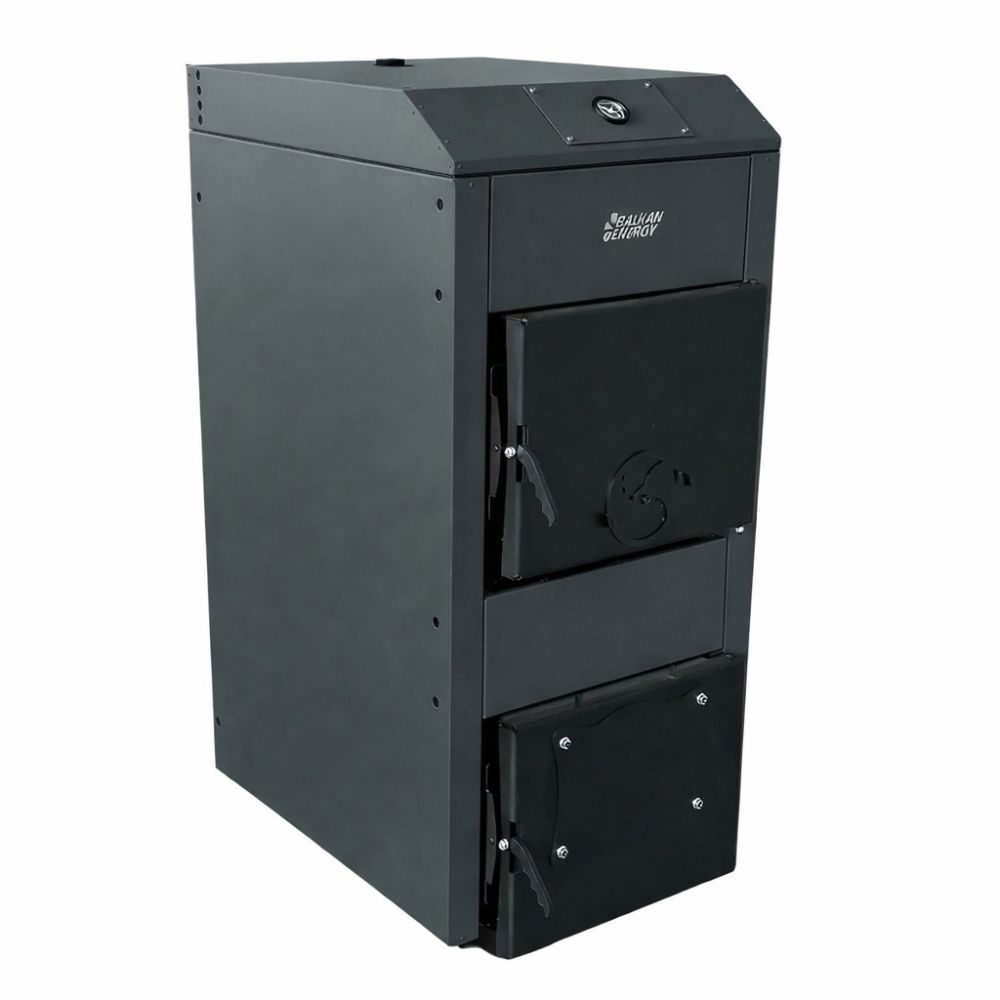

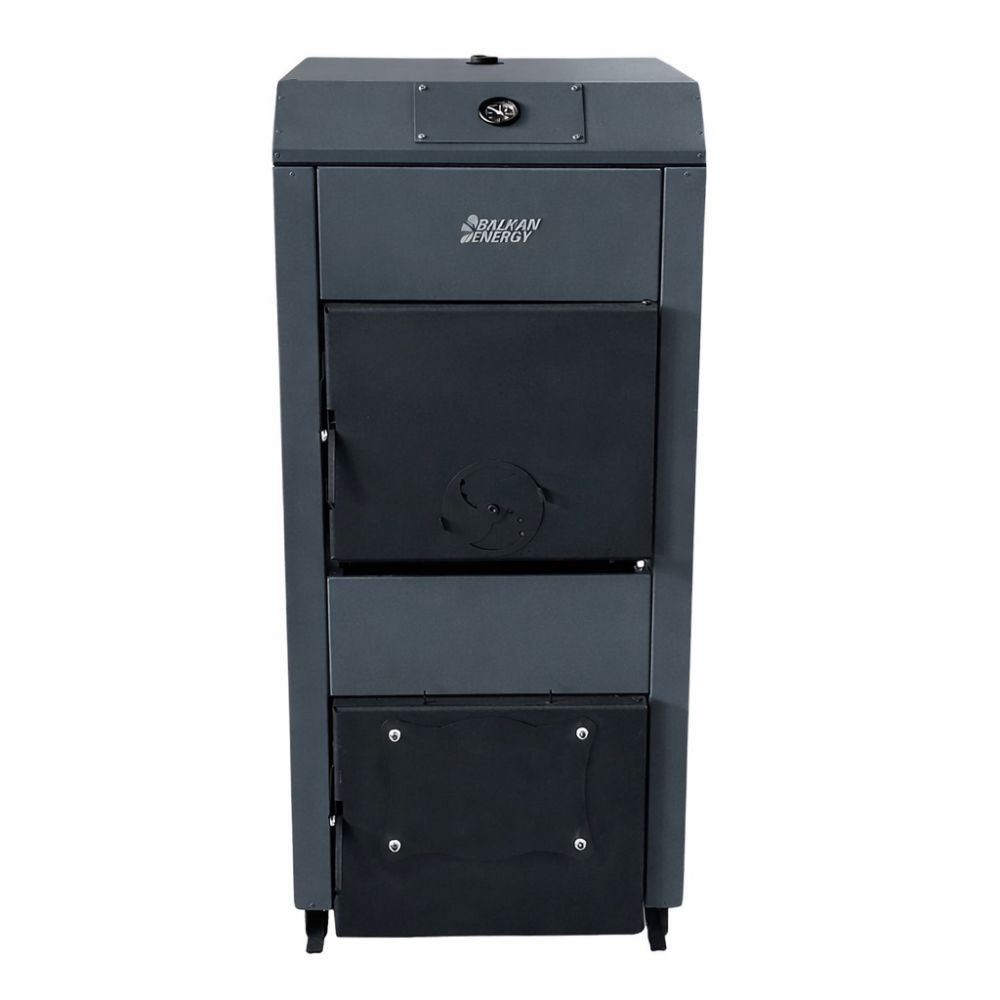

Wood stove furnace Balkan Energy 30, 30kW

Product Features:

Construction:

- The boiler body is made from high-quality 5mm thick steel.
- It features a large combustion chamber with a large heat exchange surface and low impedance for more efficient draft.

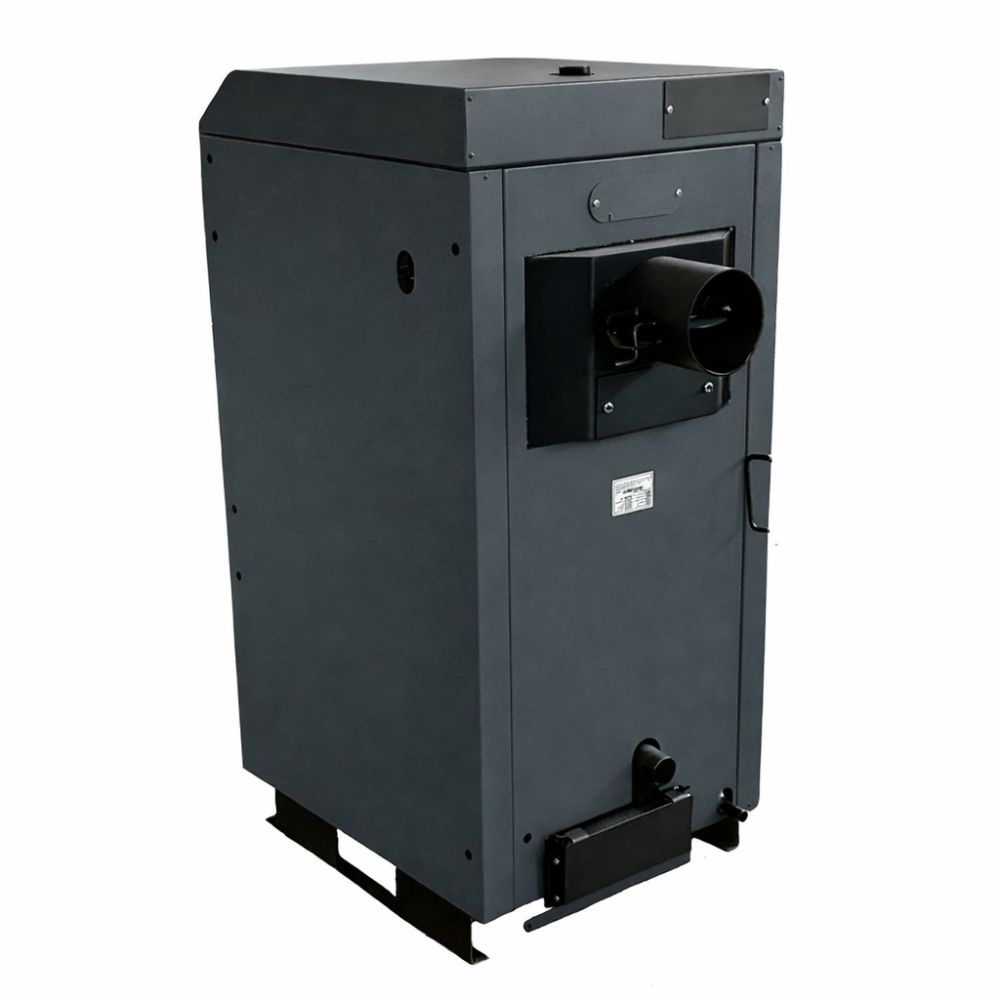

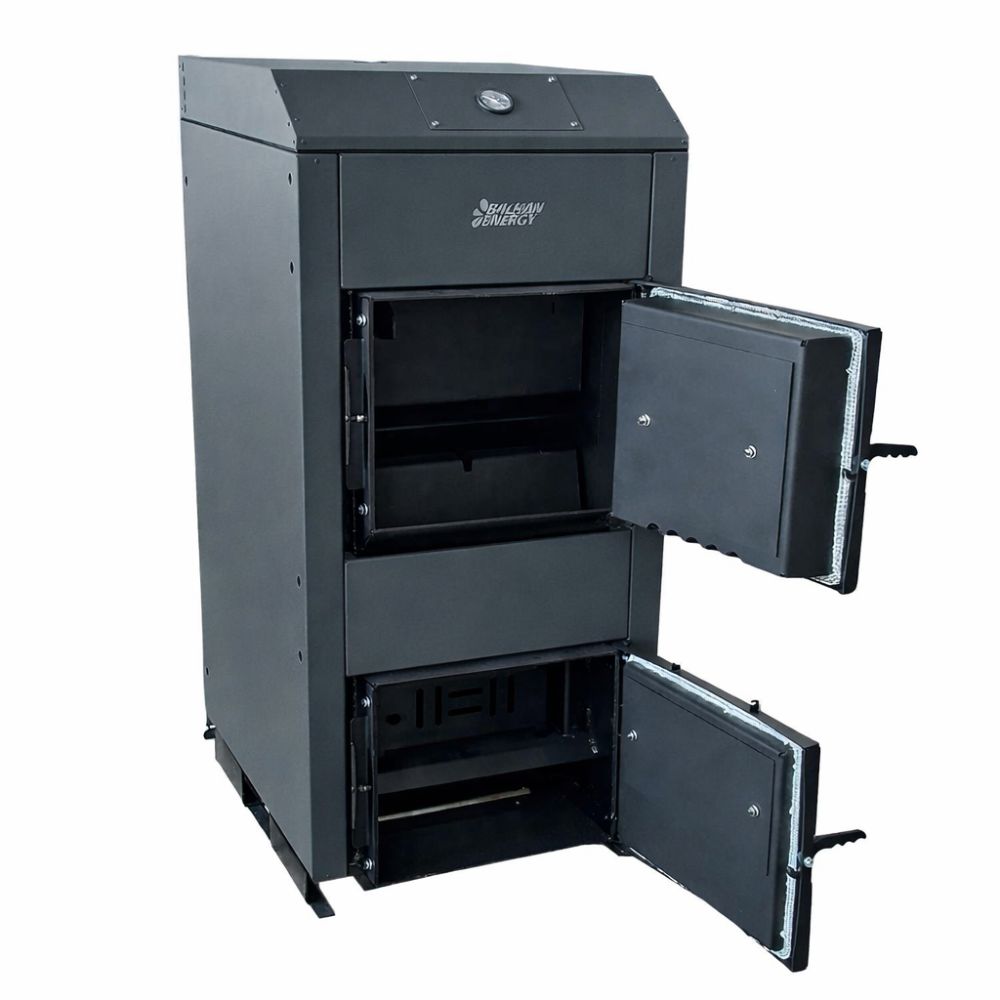

- A large door allows for easy loading of large pieces of wood.

Efficiency:

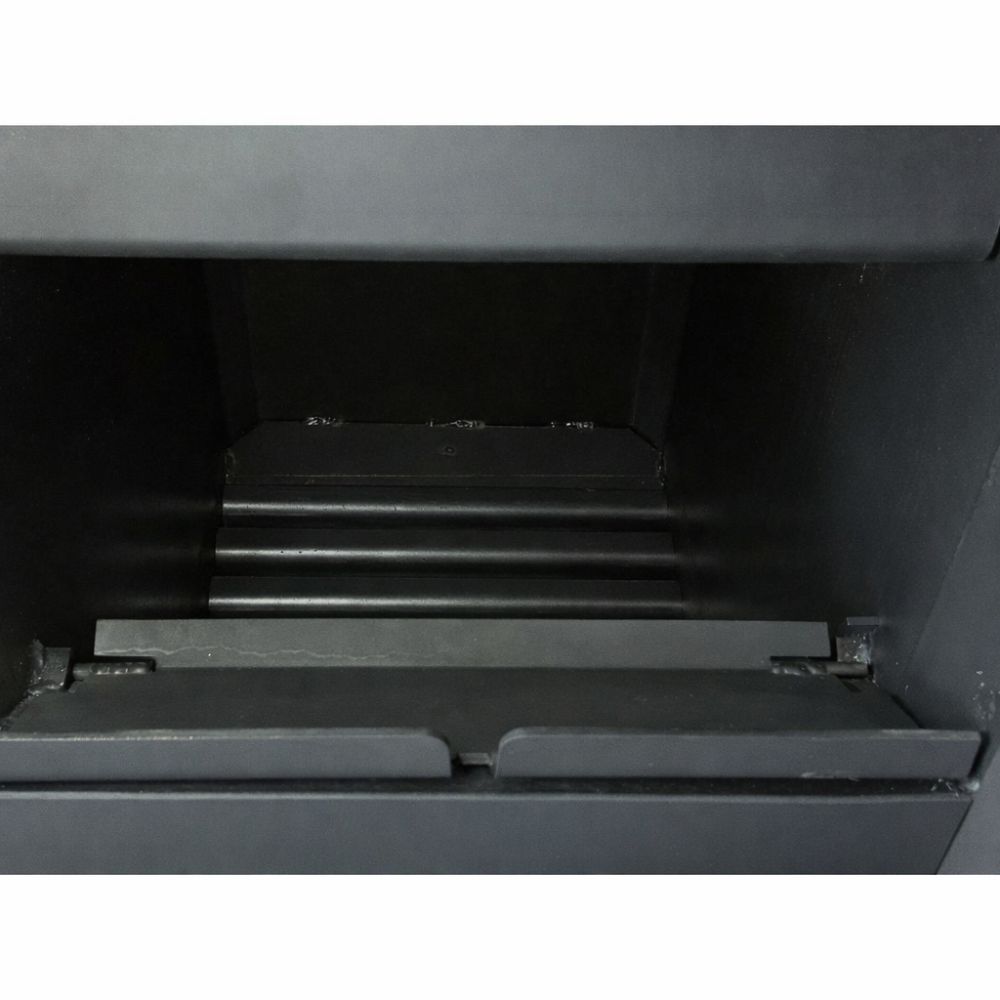

- The combustion chamber is ribbed and designed with a triple flue path to maximise heat exchange.
- The third flue path features large-diameter pipes to control the exhaust gas flow effectively, with turbulators to regulate the speed of the exiting flue gases and optimise the efficiency .
- The combustion chamber is fully encased by the mantle to enhance heat exchanging efficiency.
- The boiler is externally insulated with dense ceramic stone wool, designed to withstand high temperatures.
- A thermostatic draft regulator automatically adjusts the air supply for combustion by opening or closing a flap on the bottom door based on the boiler's temperature.

Additional Features:

- A ribbed combustion chamber and triple exhaust path enhance heat exchange.
- The last exhaust path uses large-diameter pipes and can add turbulators to adjust the exhaust gas speed.

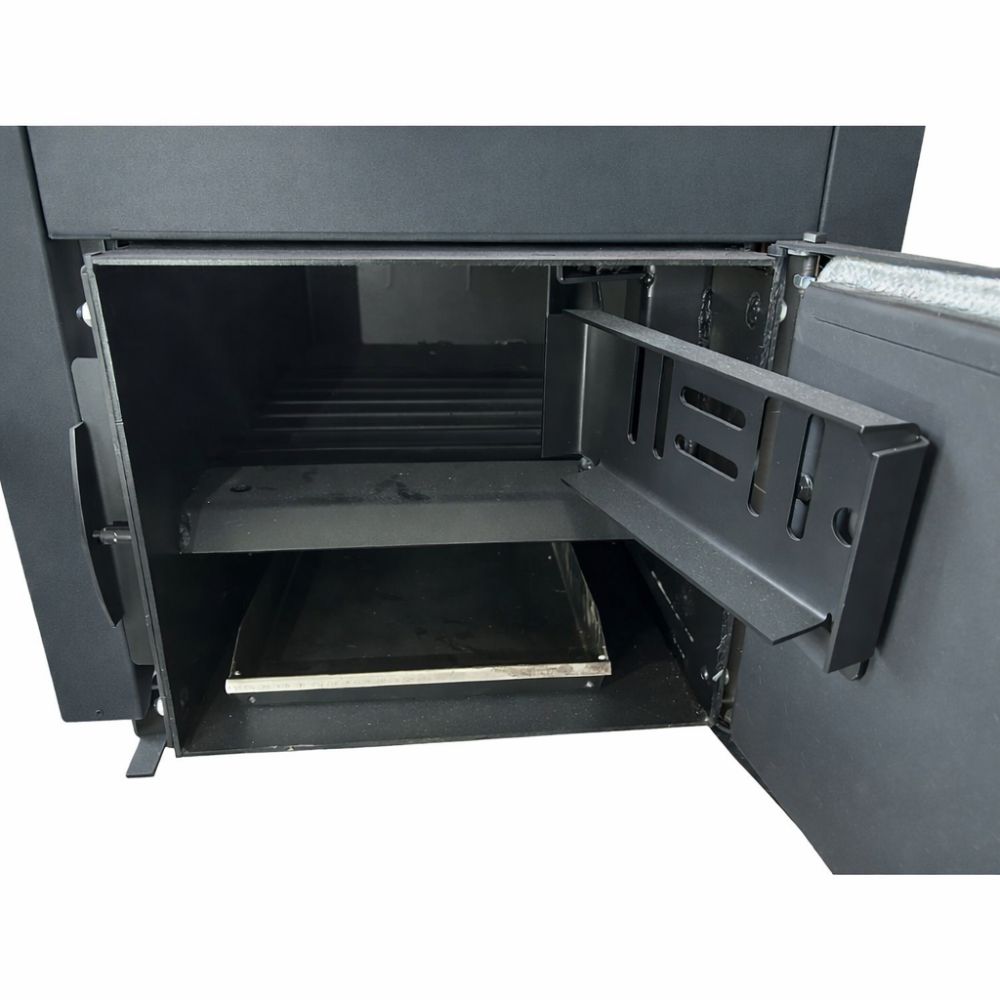

- The lower door is designed to accommodate a pellet burner with an optional neck flange.

Safety Features:

To ensure safe and reliable operation, several safety components are required:
- A mechanical chain wood boiler thermostat (traction controller).
- A 3-bar pressure relief valve (included with the product).
- A heat expansion cooler located at the back and top of the boiler must be connected to the water supply network using a thermal valve with a remote sensor (not included with the product). In case of overheating, this system releases water into the heat exchanger, dissipating excess heat into the environment.

Certifications:

This product complies with EN 303-5 standards and is CE certified.

Parts of the boiler - scheme

1 - Combustion chamber
2 - Fuel filler door
3 - Ash cleaning door
4 - Pressure fan (for boilers with fan)
5 - ST-81 zPID control (for boilers with fan)

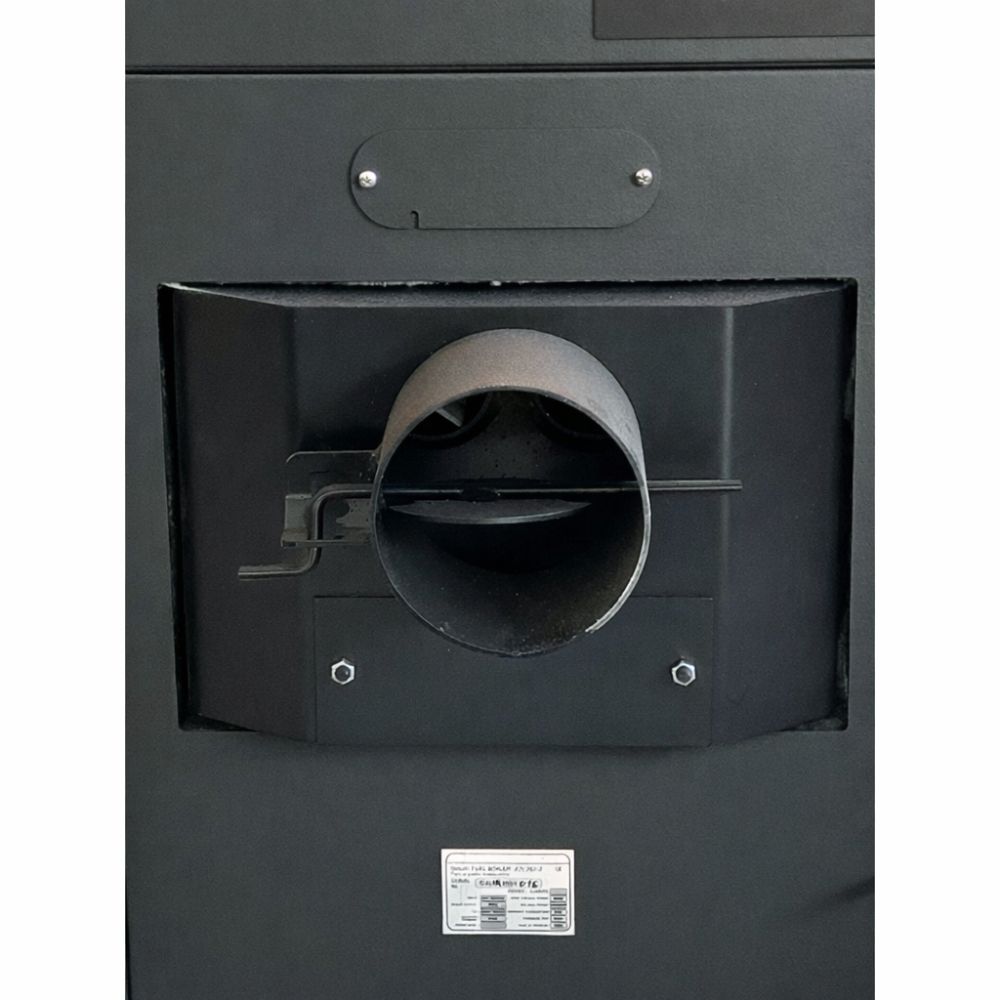

6 - Chimney
7 - Valve for regulating draft in the chimney
8 - Inspection hole for chimney cleaning
9 - Sensor thermometer (for boilers without fan)
10 - Emergency coil
11 - Valve for secondary air
12 - Air supply valve (for boilers without fan)
13 - Mechanical temperature regulator (for boilers without fan)
14 - Cable socket cover
15 - Inspection cover for sensors
16 - G 1½“ Water inlet fitting
17 - G 1½“ Water outlet fitting
18 - G ½“ Connection for filling and draining the boiler
19 - Burner mounting hole cover
20 - Safety hatch for the ash
21 - Door for securing the chimney
22 - Upper safety door
23 - Ash tray
24 - Air distributor
25 - Fuse
26 - Boiler safety thermostat – STB

Example schemes for connecting a boiler to different types of heating installations
