Back Boiler Fireplace Prity C W28, 28.2 kW

Back Boiler Fireplace Prity C W28, 28.2 kW – cast iron door and powerful heating in a compact body

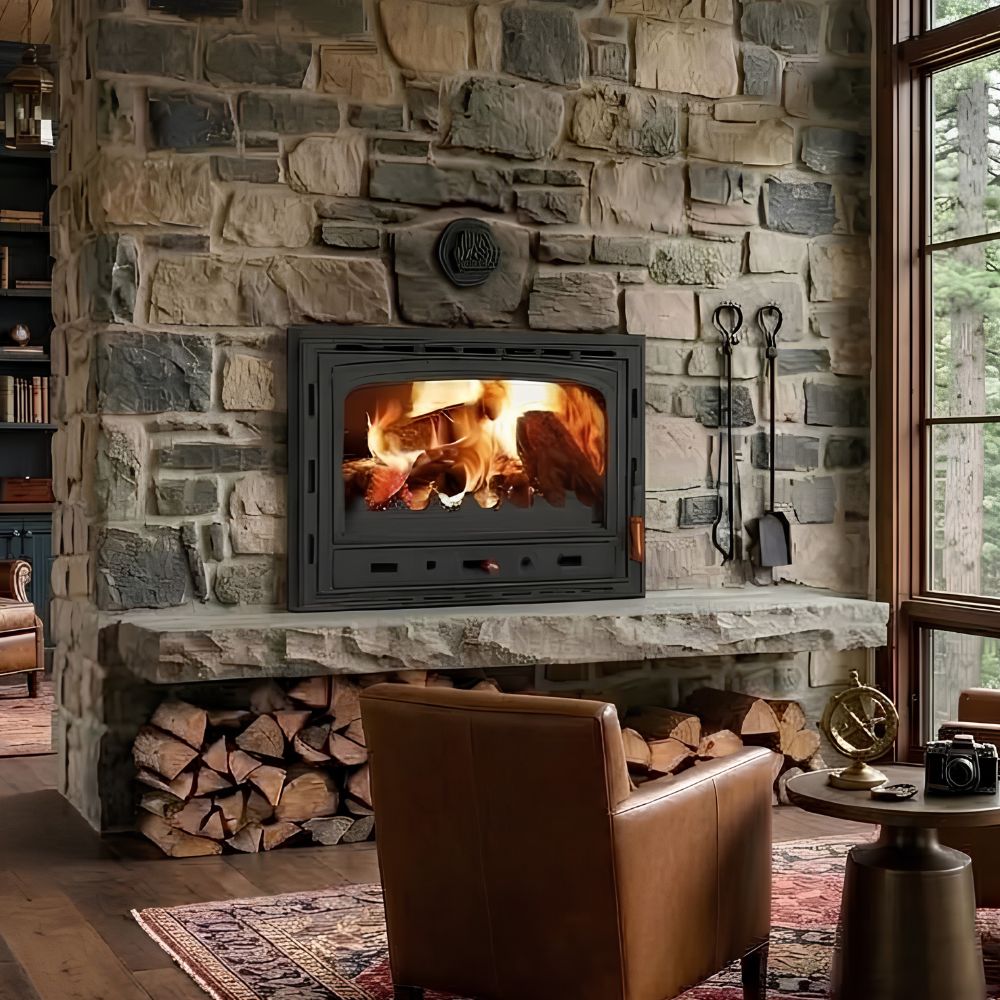

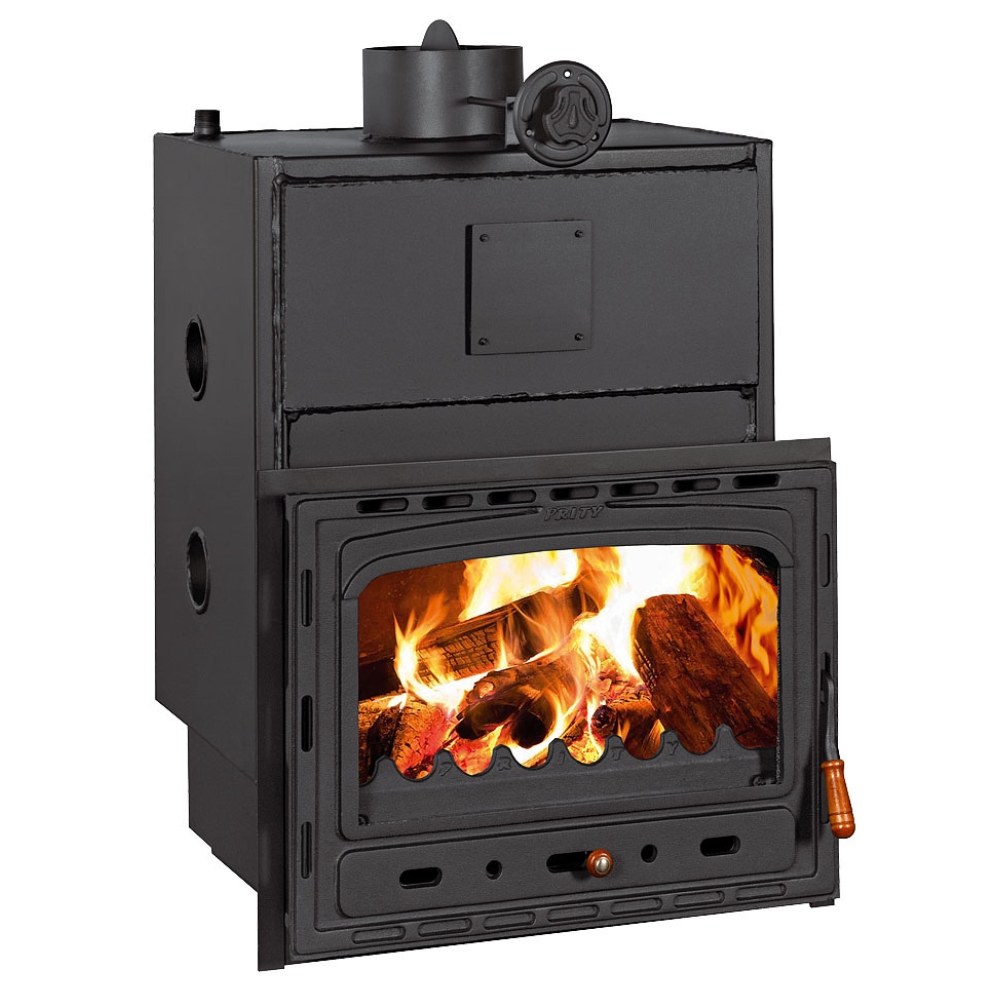

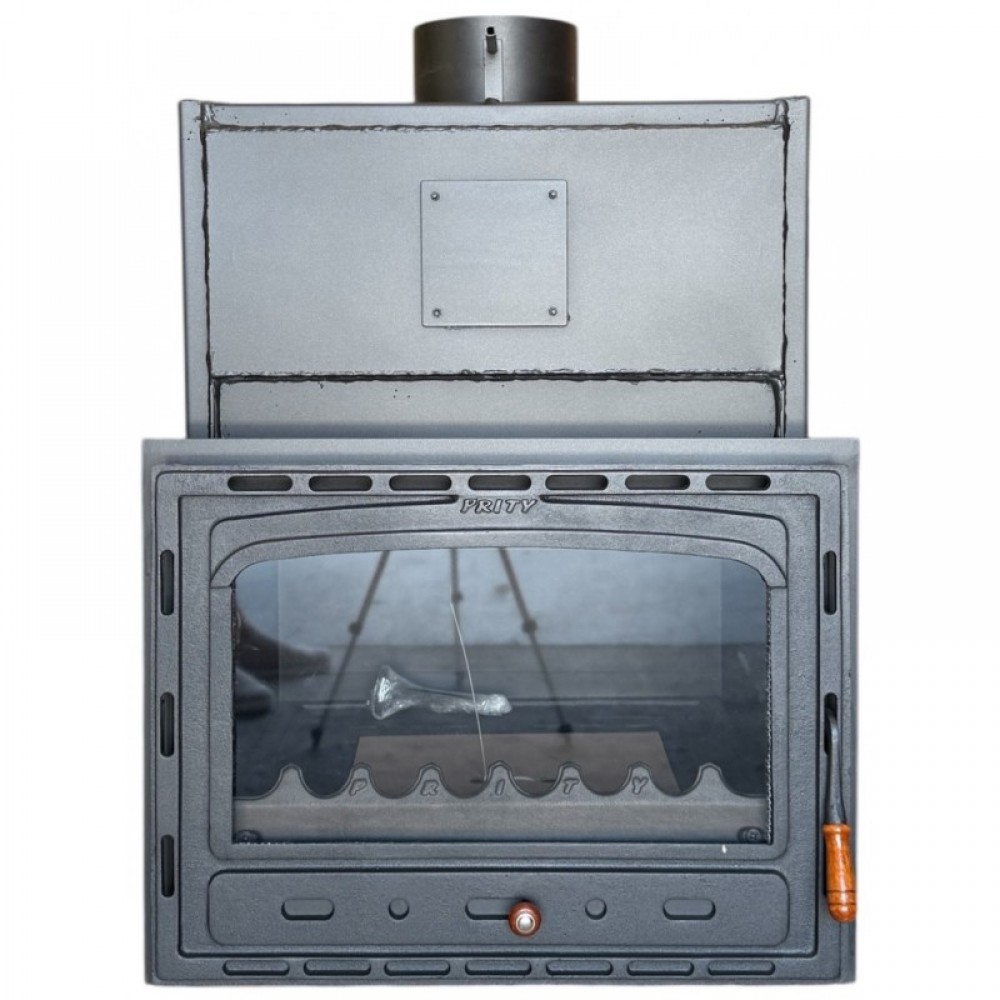

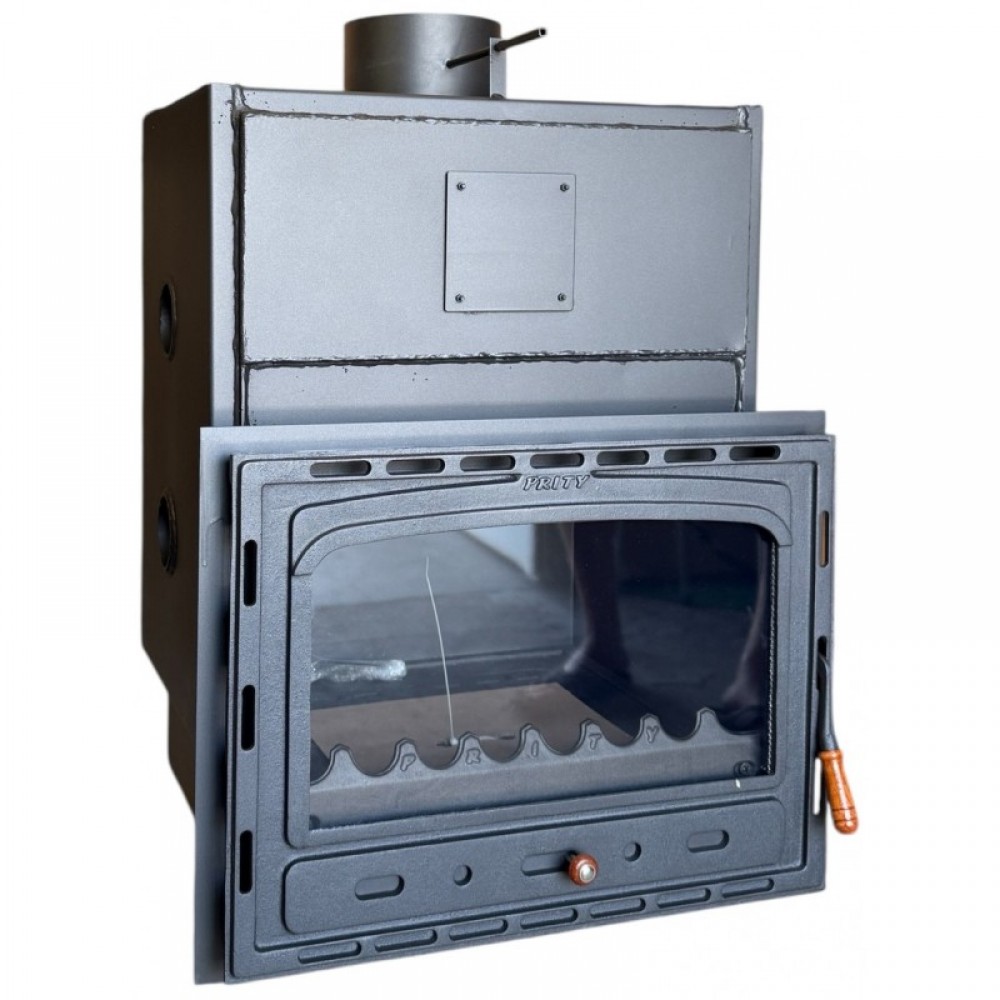

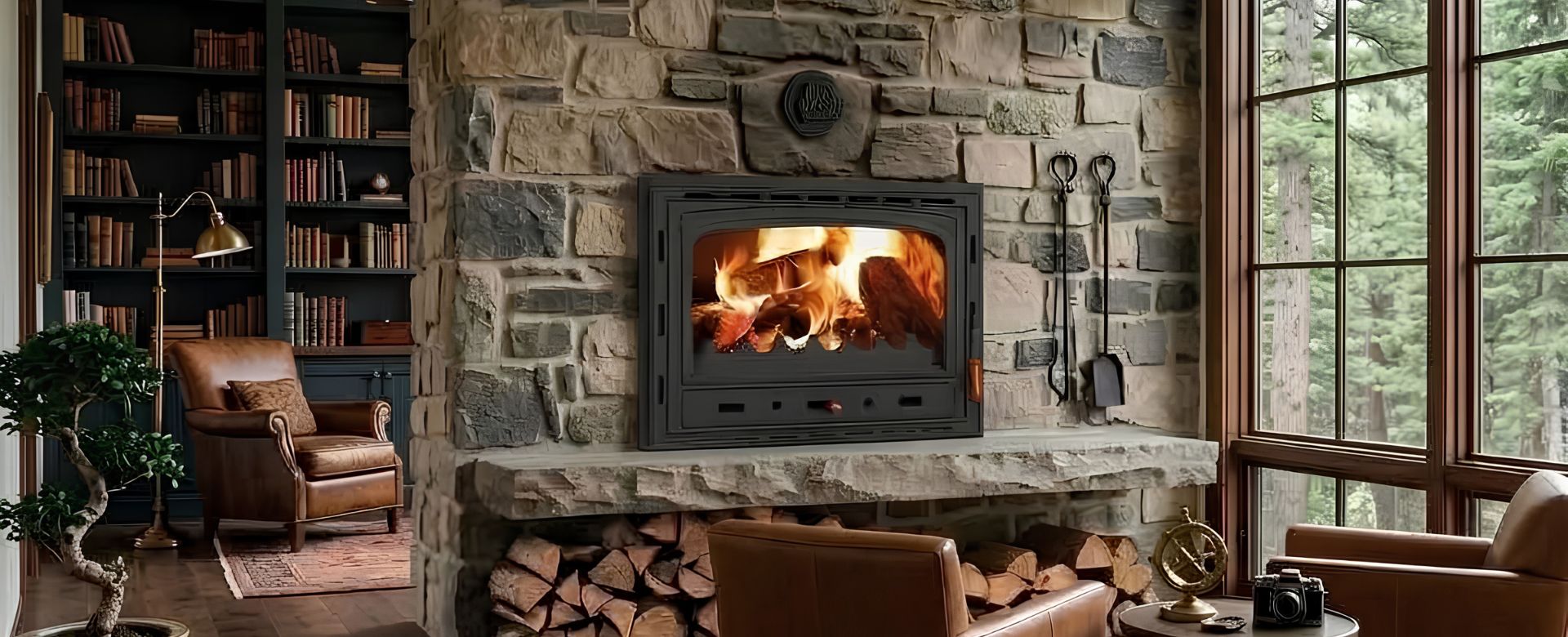

The Prity C W28 Wood Burning Fireplace in an elegant black graphite finish is a front-facing model with a cast iron door, designed for large houses where a single fireplace needs to take over the heating of the entire home. The 28.2 kW back boiler supplies the radiators, while around 5 kW more heat radiates directly into the room where the fireplace is installed. This allows it to heat an area of up to 188 m². Despite its high output, the body is only 660 mm wide, and the internal ash pan and the ability to load logs up to 53 cm make maintenance easy. With energy class A, 78.6% efficiency and a 3-year warranty, this fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity C W28 Wood Burning Fireplace

• Cast iron door – sturdy, resistant to high temperatures and with a classic look.
• 28.2 kW back boiler – powerful heating of the whole home via radiators.
• Additional radiant output of around 5 kW – the room with the fireplace is heated directly.
• Heated area of up to 188 m² – suitable for large houses and villas.
• Compact body – only 660 mm wide with an output of over 28 kW.
• Logs up to 53 cm – 380 x 535 x 465 mm combustion chamber for generous loading.

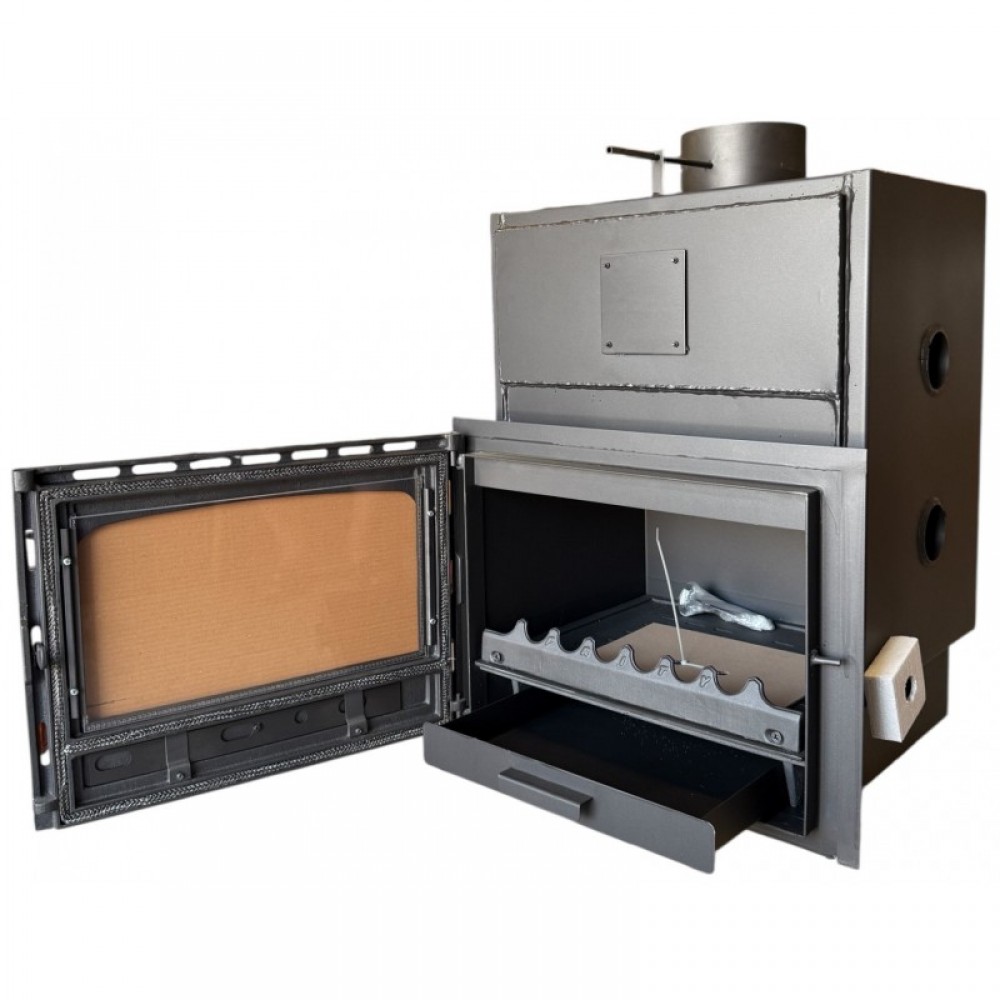

• Internal ash pan – easy and clean cleaning.
• 36 L back boiler – steady heat transfer to the heating system.
• Thermal shock resistant ceramic glass and cast iron grate – a clear view of the flame and even burning.
• Combustion control damper and manual flue outlet damper – for control over the flame and the chimney draught.
• 3-year warranty – a longer warranty than wood burning fireplaces without a back boiler.

Efficiency and Energy Class

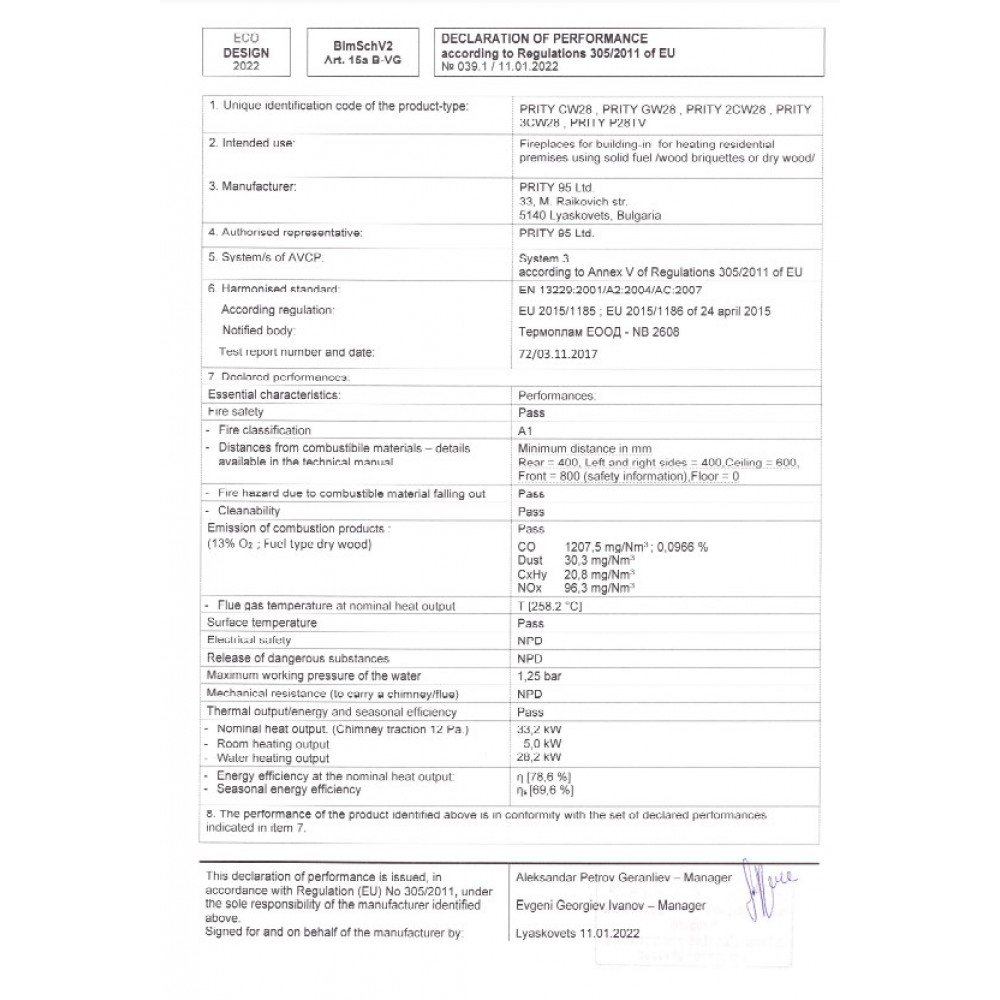

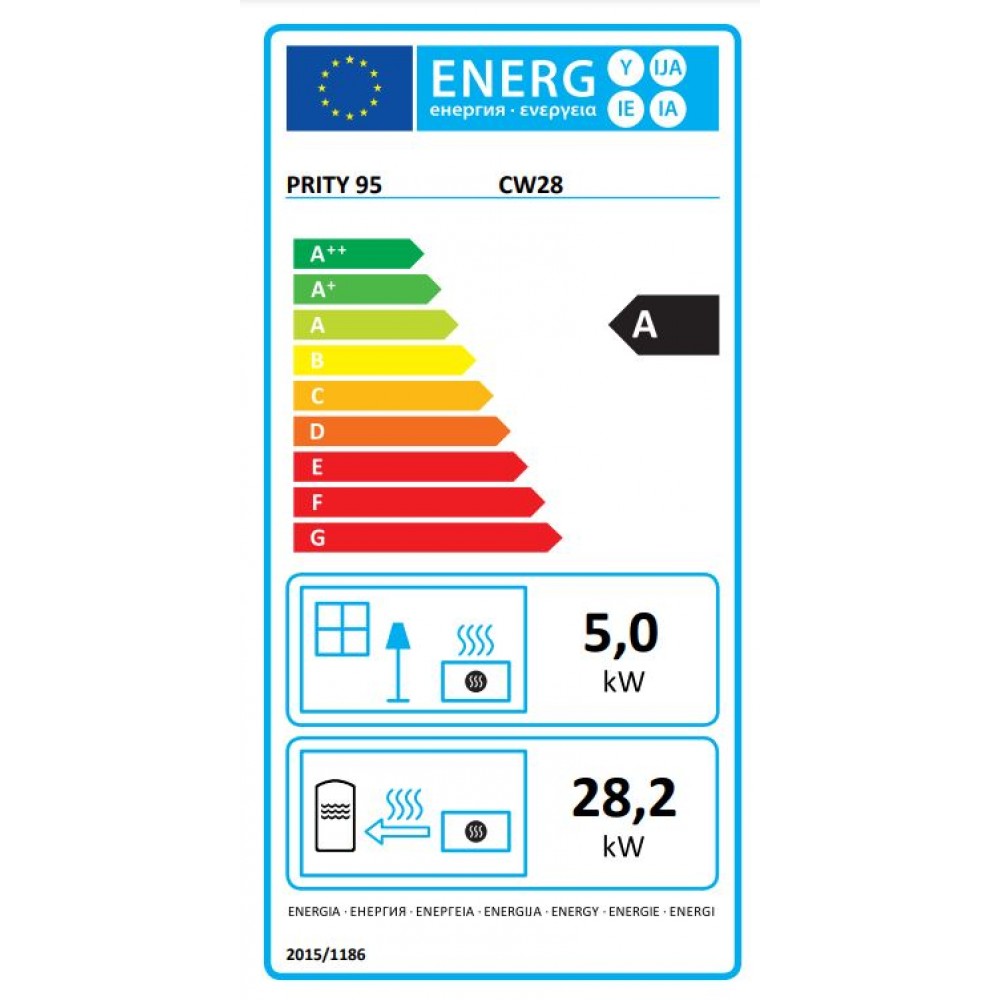

The Prity C W28 Wood Burning Fireplace meets the European Ecodesign requirements, which guarantees low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, 78.6% efficiency, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm, with a top flue outlet, and the required draught is 12.2 Pa.

Important for Installation and Operation

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a 1.5 bar safety valve is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is advisable to power the circulation pump via a UPS so that it keeps working during a power cut.
• If the system contains copper components, protect it from electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.

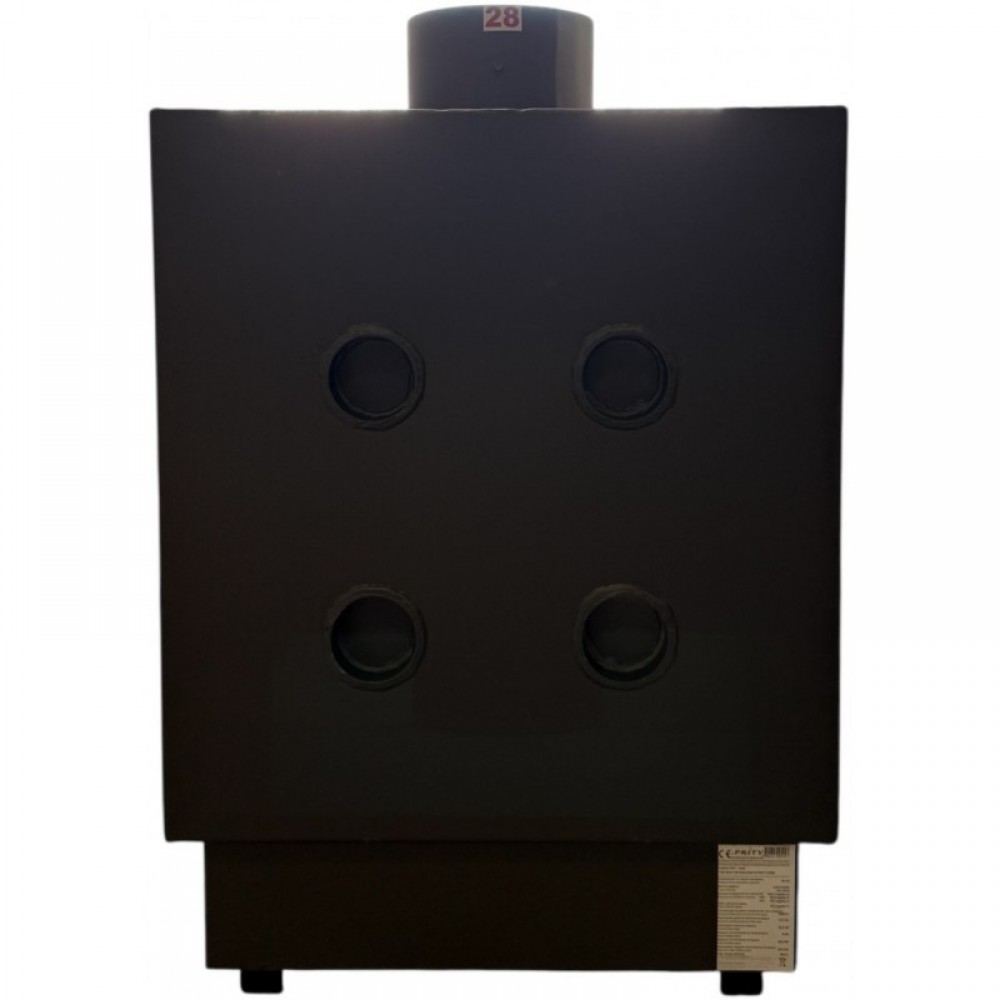

• The fireplace requires a chimney with a diameter of 200 mm. The connection to the system is via a G 1" inlet and outlet.
• The fireplace is heavy (160 kg, without water) – check the load-bearing capacity of the floor.
