Back Boiler Fireplace Prity TC W28, 28 kW

Back Boiler Fireplace Prity TC W28, 28 kW – Wide Three-Window Panorama and Powerful Radiator Heating

The Prity TC W28 Back Boiler Fireplace in an elegant black graphite finish combines a wide panoramic view of the fire through three windows with powerful central heating. The wide front window and the two side windows reveal the flame from three sides, while the 910 mm wide combustion chamber creates an impressive, long fire – a true feature in a spacious living room. The 28 kW back boiler supplies the radiators in the home, while a further approx. 5 kW of heat is radiated directly into the room where the fireplace is installed. This allows it to heat an area of up to 188 m². The wide chamber takes logs up to 58 cm, which reduces cutting and makes loading easier. With energy class A, an efficiency of 75.5% and a 3-year warranty, the fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity TC W28 Back Boiler Fireplace

• Wide three-window panorama – the fire can be seen from the front and from both sides.
• 910 mm wide combustion chamber – a long, impressive flame.
• Logs up to 58 cm – less cutting and easier loading.
• 28 kW back boiler – powerful heating of the whole home via radiators.
• Additional radiant output of approx. 5 kW – the room with the fireplace is heated directly.
• Heated area up to 188 m² – suitable for large houses and villas.
• 33 L back boiler – steady heat transfer to the heating system.
• Thermal-shock-resistant ceramic glass and cast iron grate – a clear view of the flame and even combustion.
• Combustion control damper and manual flue damper – for control over the flame and the chimney draught.
• 3-year warranty – a longer warranty than Wood Burning Fireplaces without a back boiler.

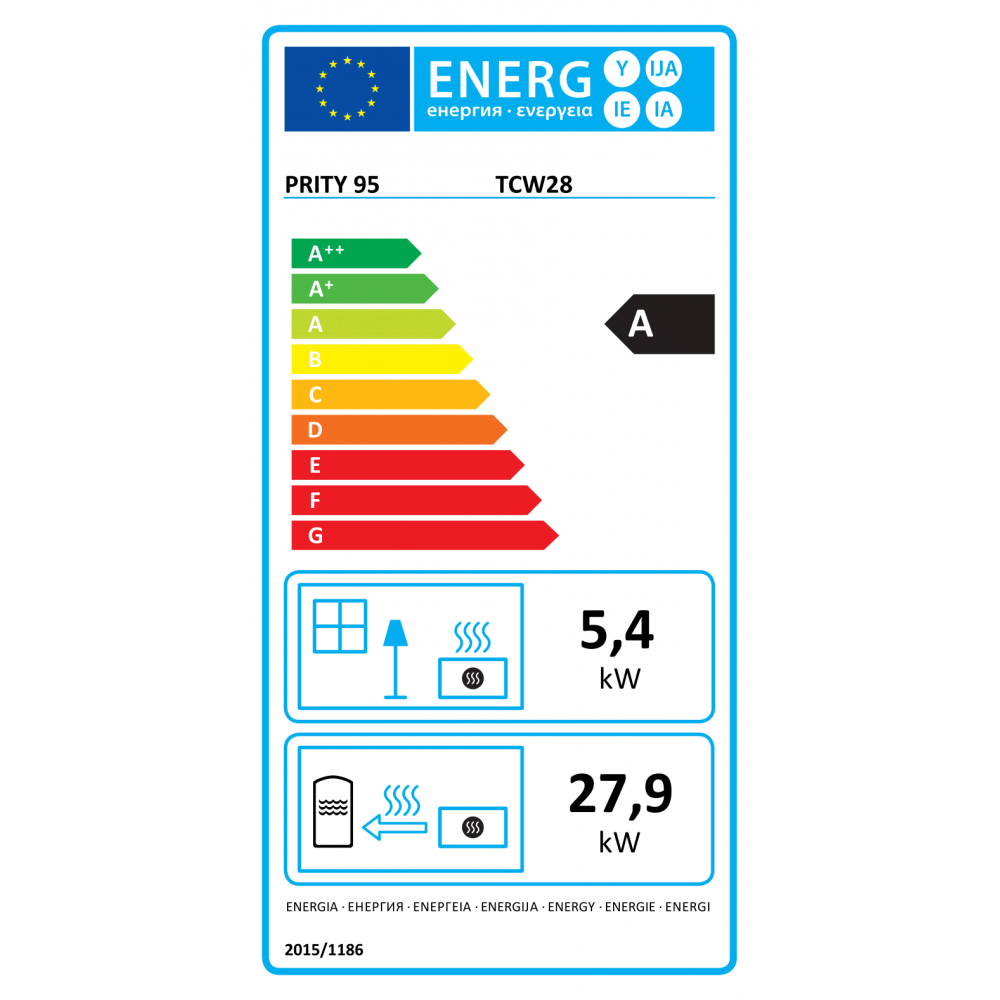

Efficiency and Energy Class

The Prity TC W28 Back Boiler Fireplace meets the European Ecodesign requirements, which ensures low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, an efficiency of 75.5%, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm with a top outlet, and the required draught is 12.6 Pa.

Important Notes on Installation and Use

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a safety valve rated at 1.5 bar is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is recommended to power the circulation pump via a UPS so that it keeps running during a power cut.
• If the system contains copper components, protect it against electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. Connection to the system is via a G 1" inlet and outlet.
• The body is wide (1080 mm) and heavy (211 kg, without water) – allow for a sufficiently wide recess and check the load-bearing capacity of the floor. When cladding, leave both side windows exposed.

Technical Specifications
