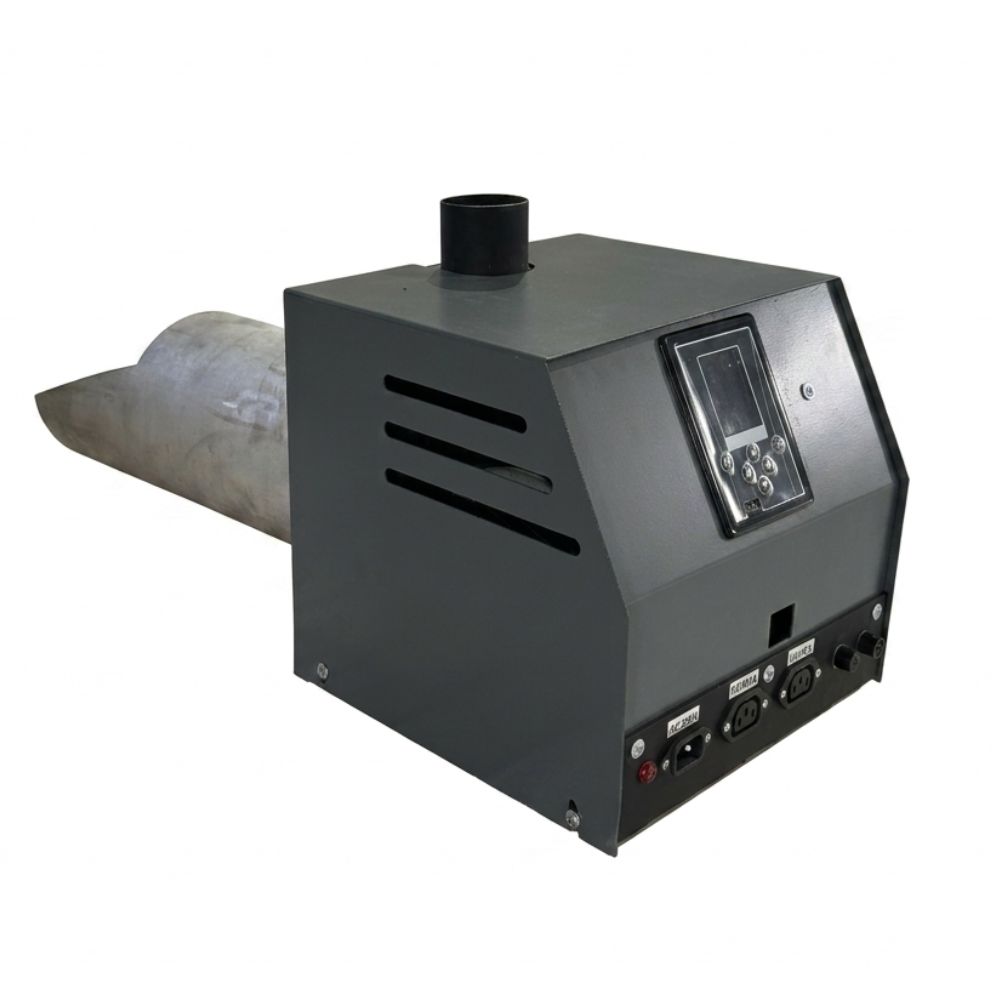

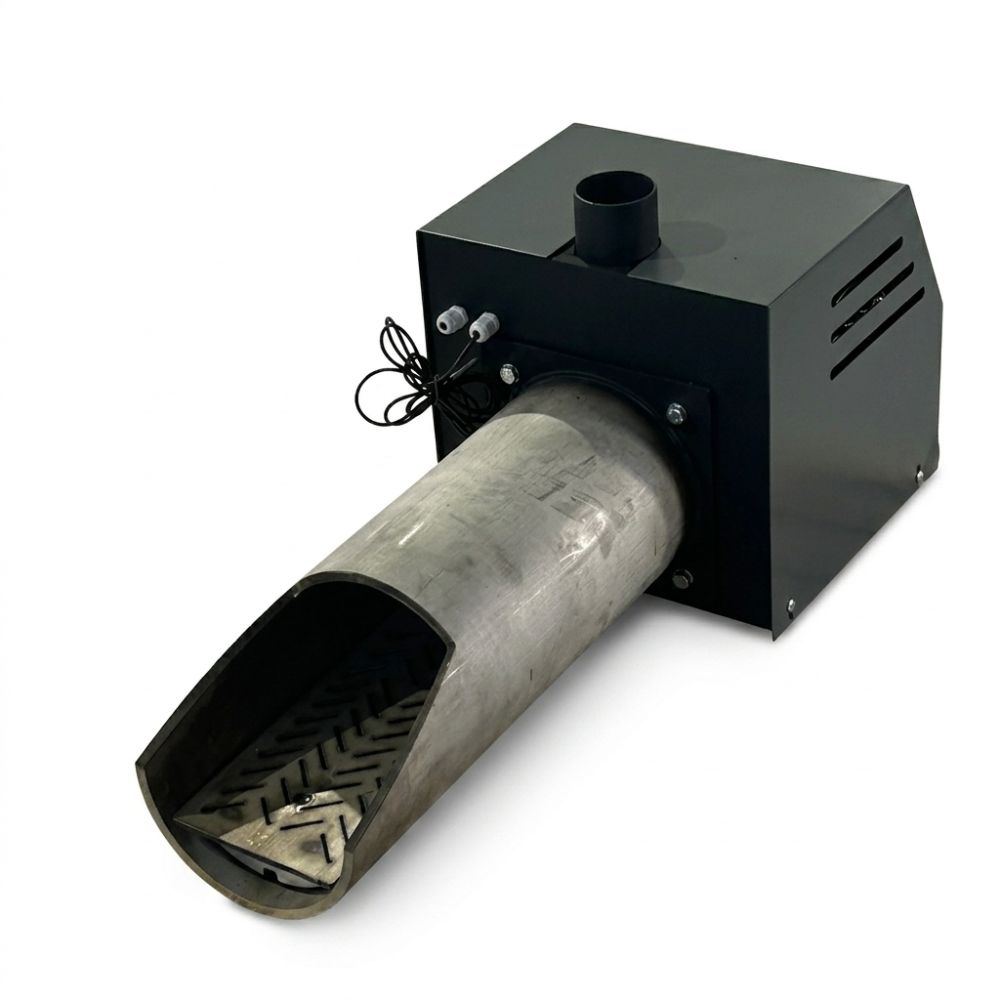

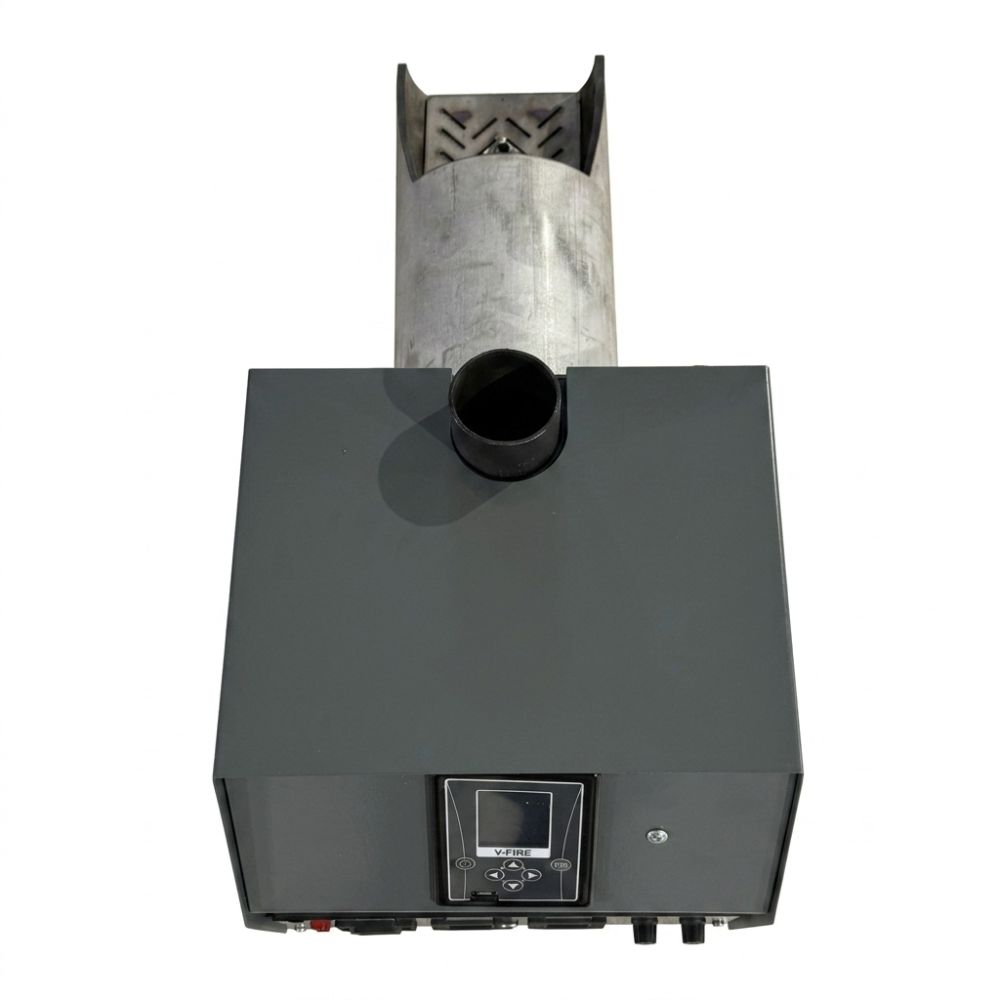

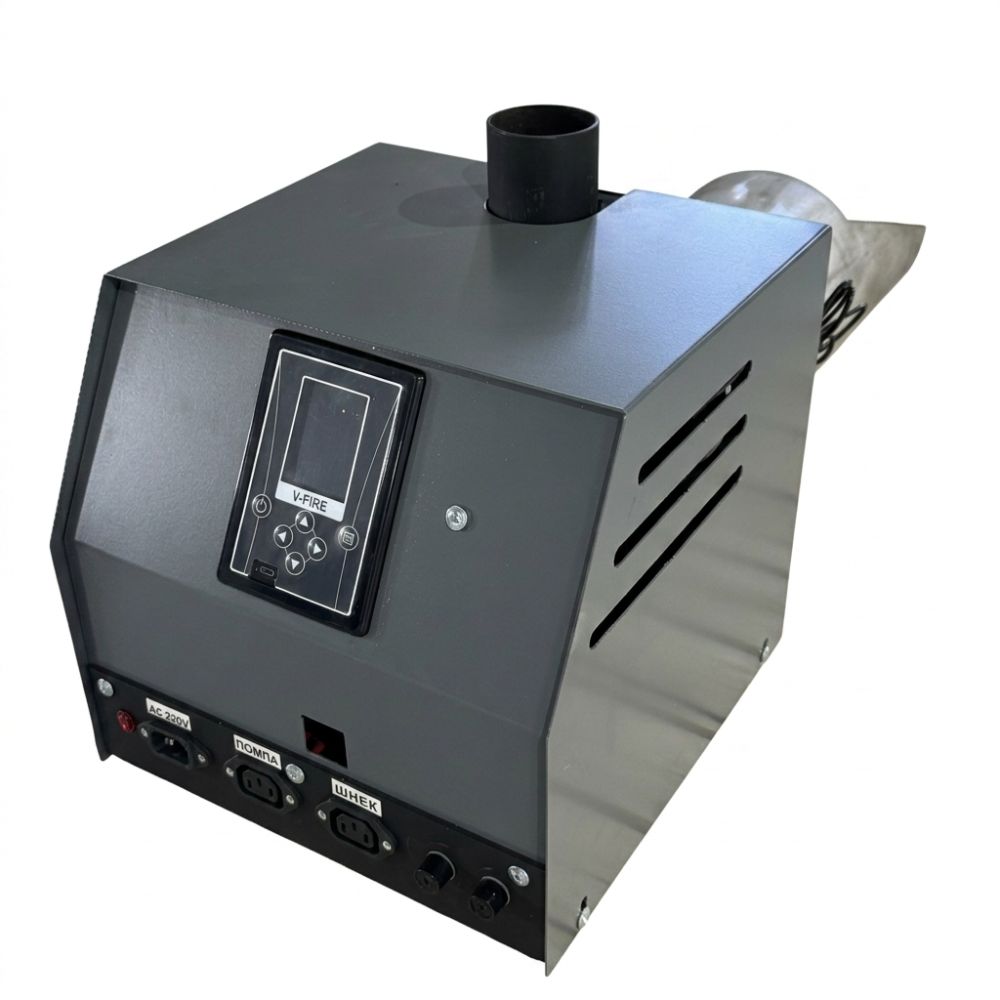

Pellet Burner Balkan Energy SC 100, 100 kW

Main advantages of the SC 100 pellet burner

► Fully automated operating mode

The pellet burner has an intelligent control system that automatically controls the combustion process for maximum efficiency and constant temperature.

Allows:

• Setting all combustion process parameters
• Programming up to 3 work periods per day
• Setting the desired boiler temperature
• Automatic power adjustment in 3 stages
• Temporary fire maintenance mode to reduce frequent ignition and extinguishing

► Automatic mechanical cleaning

The SC 100 is equipped with a removable combustion grate that automatically cleans the combustion chamber, pushing out accumulated ash and debris. This allows long-term operation without manual cleaning , which is a serious advantage over many standard models.

Additional intermediate cleaning during operation , without stopping the combustion process, keeps the combustion area always clean and ensures constant efficiency.

► Fast ignition and stable operation

The burner uses 2 ceramic heaters of 300W each (total 600W) , which ensure quick ignition through hot air and reaching operating mode in minimal time.

► Remote control and intelligent control

SC 100 offers the possibility of:

• Control via smartphone app
• Real-time Internet monitoring
• Embedding a Wi-Fi modem
• Connection to PC or GSM/GPRS modem
• Remote diagnostics and software upgrade

► Maximum safety

For safe and trouble-free operation, the burner has:

• Full system self-diagnosis
• Notification when a problem occurs
• Anti-backfire temperature sensor
• Internal auger against backfire
• Control of circulation pumps and domestic hot water boiler
• Possibility of connecting to a room thermostat and weekly programmer

Why choose the SC 100 pellet burner?

One of the biggest advantages of the SC 100, 100kW is the ability to operate from a minimum power of 10 kW to a maximum of 100 kW without the need for cleaning , which significantly reduces maintenance and operating costs.

The model is equipped with a 4 mm stainless steel head , an external auger included in the price , as well as Bulgarian language controls for easy setup and convenient operation.

Technical specifications

• Thermal power: 15 – 100 kW
• Operating range: 10 – 100 kW
• Fuel: Pellets 6 and 8 mm, agro pellets, pits up to 20 mm
• Ignition: 2 × 300W ceramic heaters (600W)
• Power supply: Single-phase 220V
• Consumption in operating mode: 15 – 250 W/h
• Standby consumption: 2 W/h
• Weight: 45 kg
• Dimensions (W x H x D): 350 × 300 × 800 mm
• Dimensions outside the boiler: 350 × 300 × 500 mm
• Combustion chamber dimensions: 220 × 300 mm
• Minimum boiler door opening: Ø220 mm
• Minimum combustion chamber dimensions: 450 × 450 × 600 mm
• Warranty: 12 months
