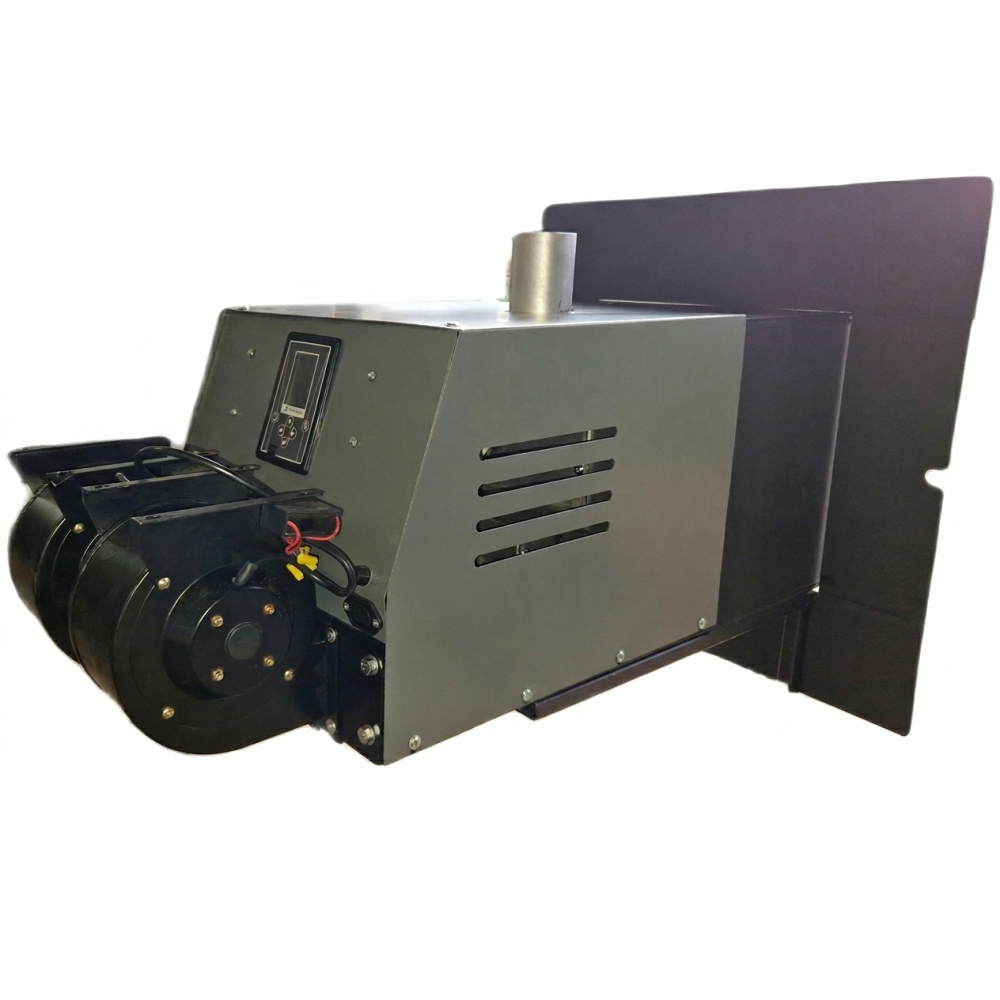

Pellet Burner Balkan Energy SC 350, 350 kW

Main advantages of the SC 350 pellet burner

► Fully automatic operation

The burner has an intelligent control system that automatically controls the entire combustion process. All parameters can be adjusted according to the needs of the specific site for maximum economy and efficiency.

► Automatic mechanical cleaning

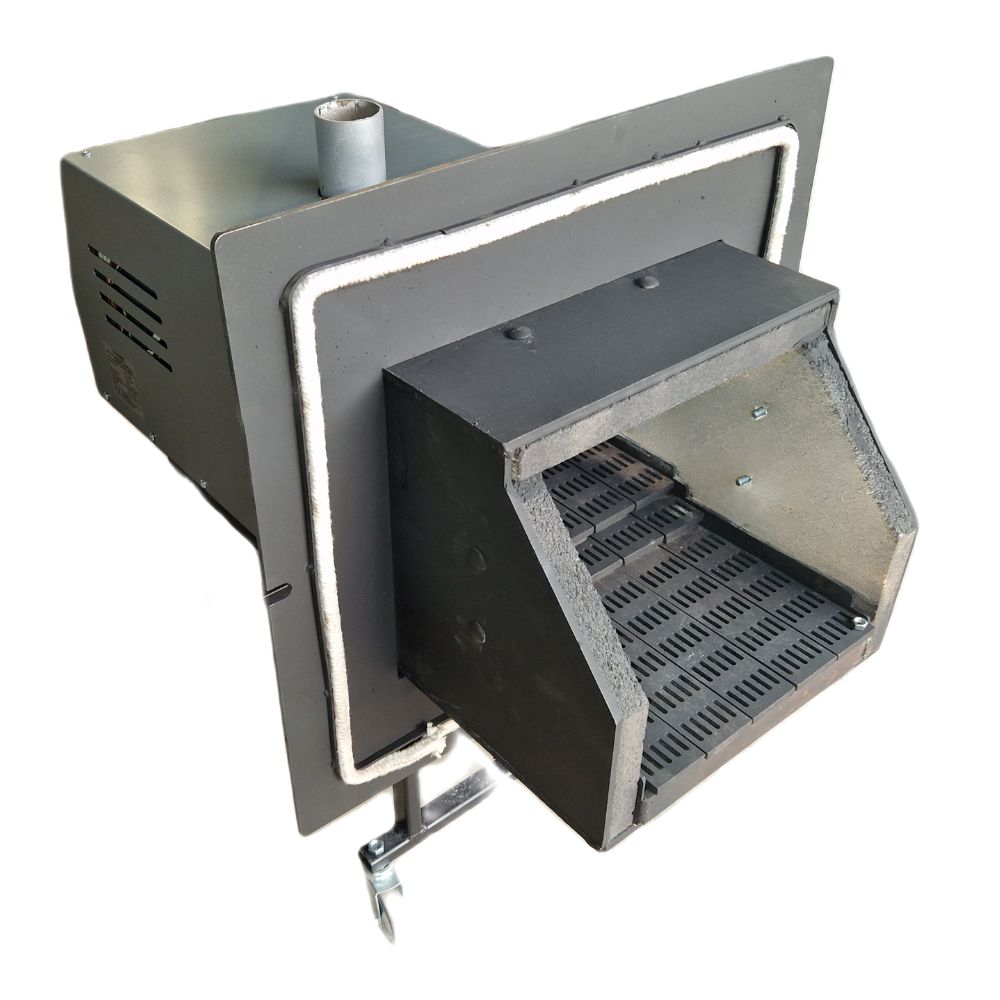

The SC 350 is equipped with a movable fuel grate that moves back and forth, automatically cleaning the combustion chamber and expelling accumulated ash and slag. This allows for long operation without the need for manual cleaning .

Additional intermediate cleaning during operation , without interrupting the combustion process, guarantees a constantly clean combustion zone and high efficiency.

► Fast and reliable ignition

The model uses a 900W Japanese ceramic lighter , providing quick ignition and rapid reach of operating mode through hot air technology.

► Intelligent heating control

The burner offers:

• Setting all combustion parameters
• Programming up to 3 time periods daily
• Setting the desired boiler temperature
• Automatic power adjustment in 3 stages
• Mode for maintaining the fire and reducing frequent ignition and extinguishing
• Support for up to 4 preset profiles for different fuels


► Remote monitoring and management

SC 350 allows:

• Control via smartphone app
• Constant control via the internet
• Wi-Fi modem option
• Connection to PC or GSM/GPRS modem
• Remote diagnostics and software upgrade

► Maximum safety

For safe and reliable operation, the burner has:

• Full system self-diagnosis
• Notification when a problem occurs
• Anti-backfire temperature sensor
• Internal auger for backfire protection
• Control of heating pumps and domestic hot water tank
• Possibility of connecting to a room thermostat and weekly programmer

Why choose the SC 350 pellet burner?

One of the key advantages of the SC 350, 350kW is its ability to maintain power from 50 kW to 350 kW without the need for cleaning , which sets it apart from many competing models. This means less maintenance, lower operating costs and a continuous heating process .

The burner has a 4 mm stainless steel head , an external auger included in the kit, as well as convenient controls in Bulgarian .

Technical specifications

• Thermal power: 30 – 350 kW
• Operating range: 50 – 350 kW
• Fuel: Pellets 6 and 8 mm, agro pellets, pits up to 20 mm
• Ignition: Ceramic heater 900W
• Power supply: Single-phase 220V
• Consumption in operating mode: 100 – 900 W/h
• Standby consumption: 2 W/h
• Weight: 170 kg
• Dimensions (W x H x D): 550 × 500 × 1200 mm
• Dimensions outside the boiler: 350 × 300 × 400 mm
• Combustion chamber dimensions: 400 × 330 mm
• Minimum mounting hole: Ø140 mm
• Minimum combustion chamber dimensions: 250 × 250 × 400 mm
• Warranty: 12 months
