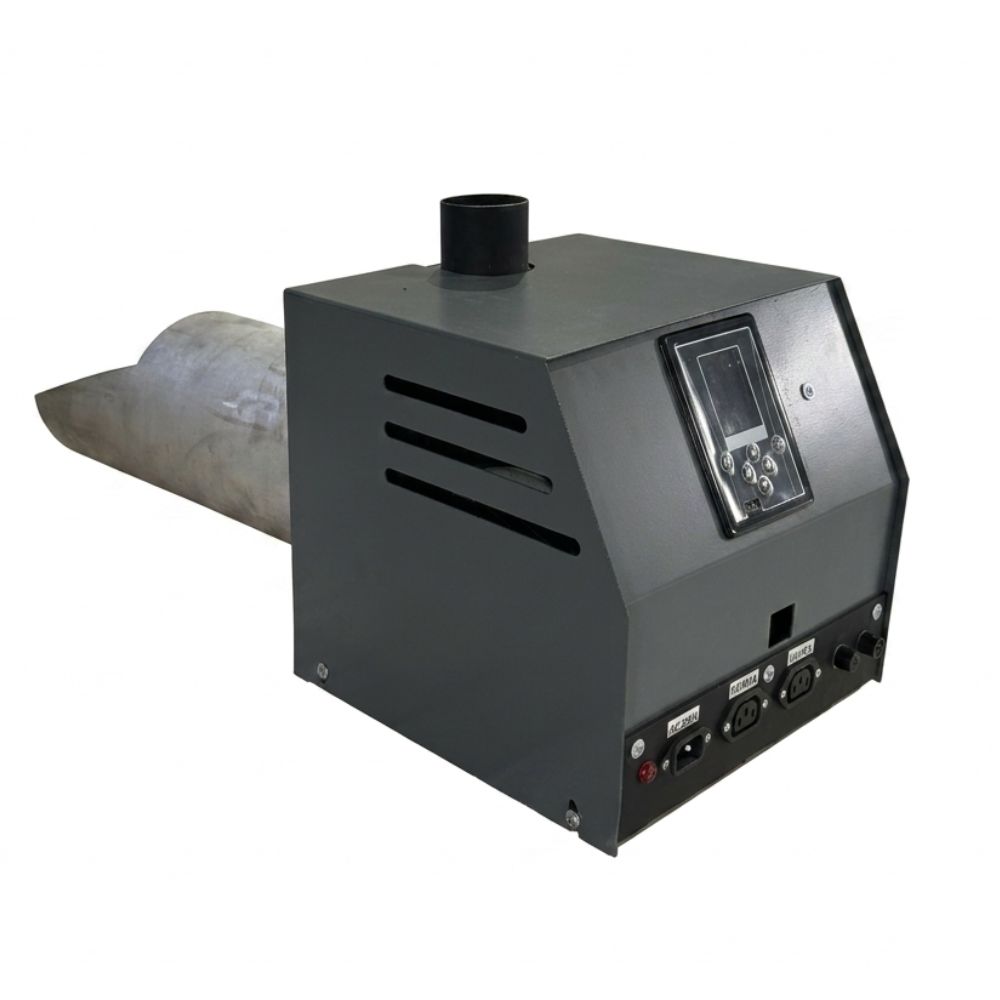

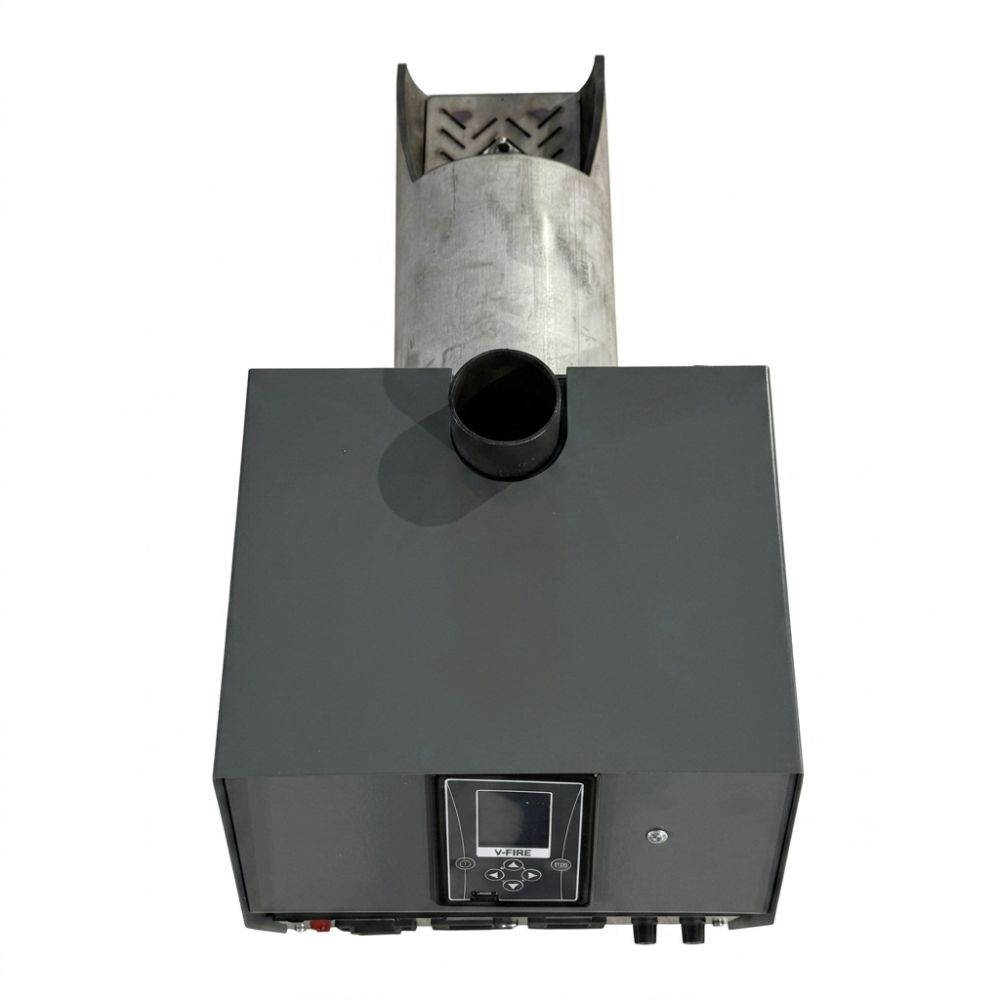

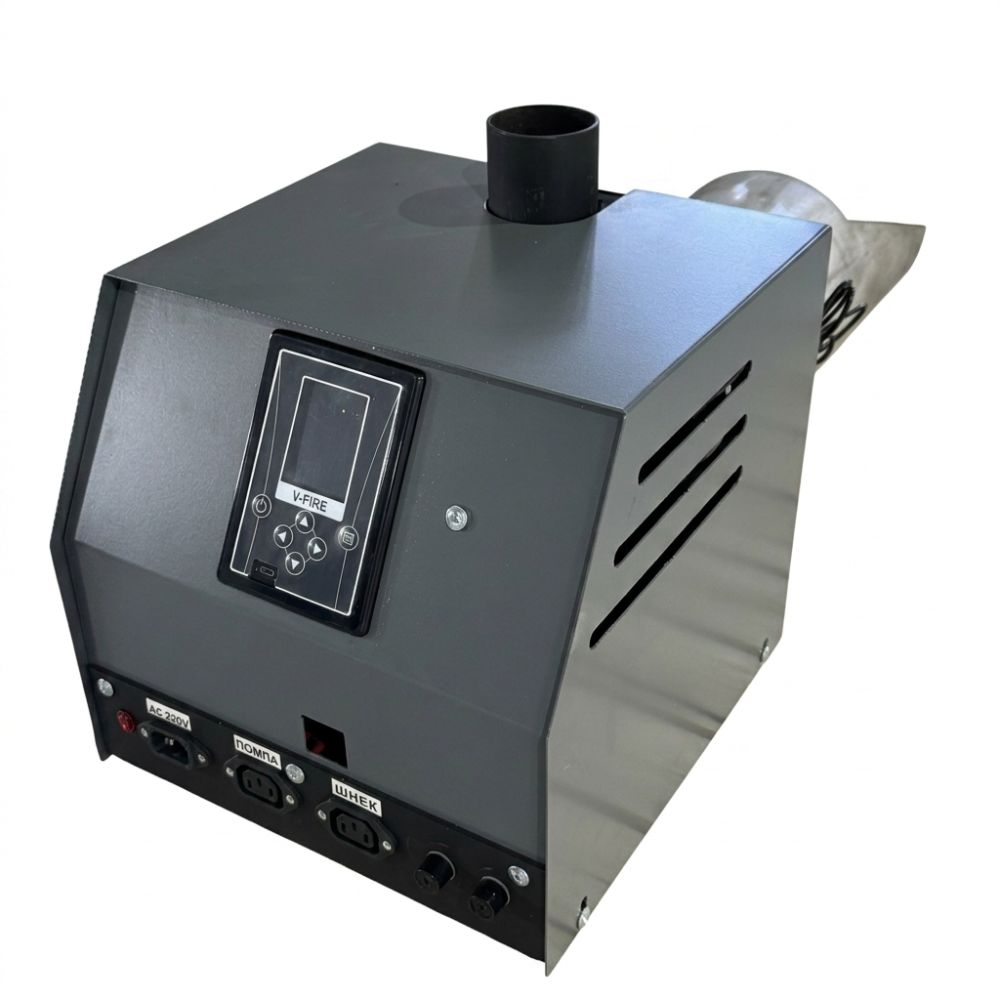

Pellet Burner Balkan Energy SC 70, 70 kW

Main advantages of the SC 70 pellet burner

► Fully automatic operating mode

The pellet burner has an intelligent control system that automatically regulates the combustion process and maintains the set temperature with maximum efficiency.

Management functions:

• Setting all combustion process parameters
• Programming up to 3 working periods per day
• Date and time support
• Setting the desired temperature in the boiler
• Automatic power adjustment in 3 stages
• Fire maintenance mode and reduction of ignition and extinguishing cycles

► Automatic mechanical cleaning

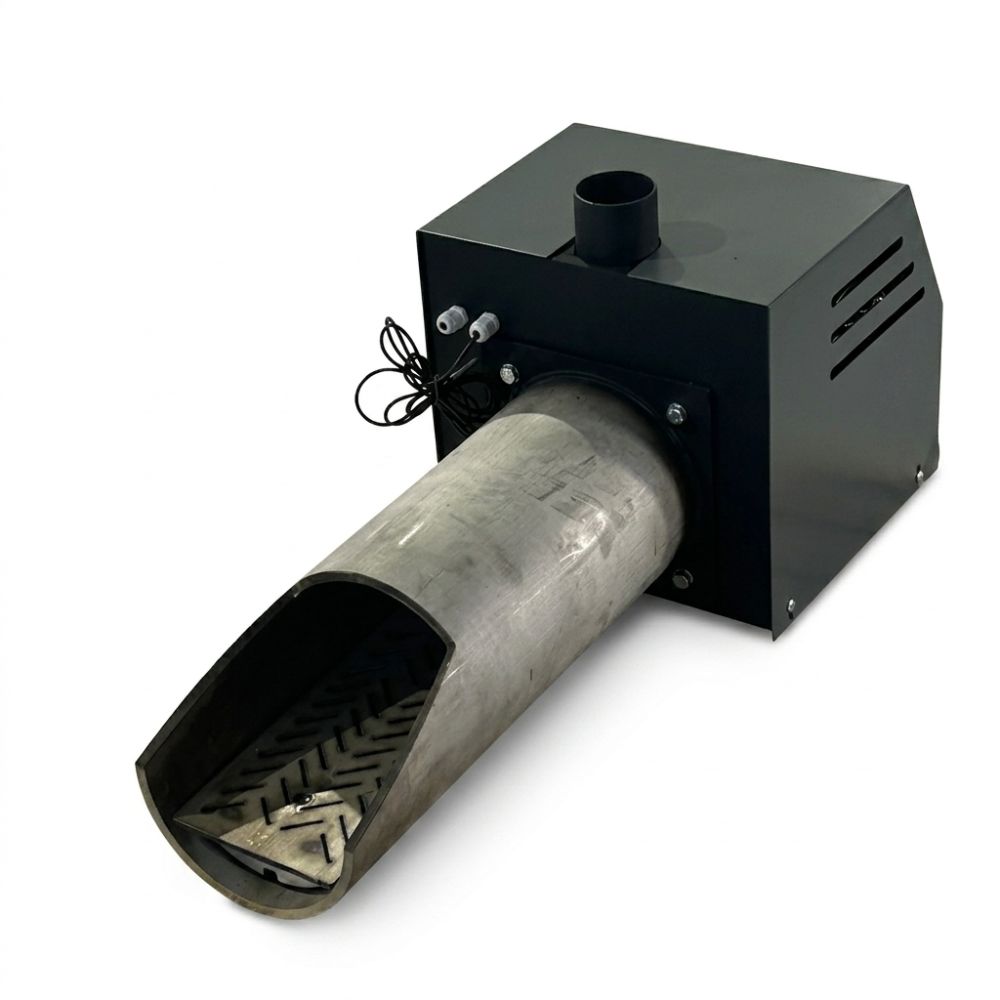

The SC 70 is equipped with a removable combustion grate that automatically cleans the combustion chamber by pushing out accumulated debris and ash. This ensures longer operation without the need for manual maintenance .

The burner also performs intermediate cleaning during operation , without interrupting the combustion process, which keeps the combustion zone always clean and optimizes efficiency.

► Fast and efficient ignition

The model uses 2 Japanese ceramic heaters of 300W each (total 600W) , which ensure quick ignition through hot air and rapid reaching of operating temperature.

► Intelligent remote control

SC 70 offers:

• Control via smartphone app
• Constant monitoring via the internet
• Wi-Fi modem option
• Connection to PC or GSM/GPRS modem
• Remote diagnostics and software updates


► Safety and reliable operation

The pellet burner has:

• Full system self-diagnosis
• Notification when a problem occurs
• Anti-backfire temperature sensor
• Internal auger against backfire
• Control of circulation pumps and domestic hot water boiler
• Possibility of control via room thermostat and weekly programmer

Why choose the SC 70 pellet burner?

One of the biggest advantages of the SC 70, 70kW is its ability to maintain power from 7.5 kW to 70 kW without the need for cleaning , which sets it apart from most standard models on the market.

The burner is equipped with a 4 mm stainless steel head , an external auger included in the price , as well as Bulgarian language controls , which ensure easy setup and convenient daily use.

Technical specifications

• Thermal power: 7.5 – 70 kW
• Operating range: 7.5 – 70 kW
• Fuel: Pellets 6 and 8 mm, agro pellets, pits up to 20 mm
• Ignition: 2 × 300W ceramic heaters (600W)
• Power supply: Single-phase 220V
• Consumption in operating mode: 15 – 250 W/h
• Standby consumption: 2 W/h
• Weight: 37 kg
• Dimensions (W x H x D): 350 × 320 × 800 mm
• Dimensions outside the boiler: 350 × 300 × 600 mm
• Combustion chamber dimensions: 170 × 330 mm
• Minimum boiler door opening: Ø170 mm
• Minimum combustion chamber dimensions: 450 × 450 × 500 mm
• Warranty: 12 months
