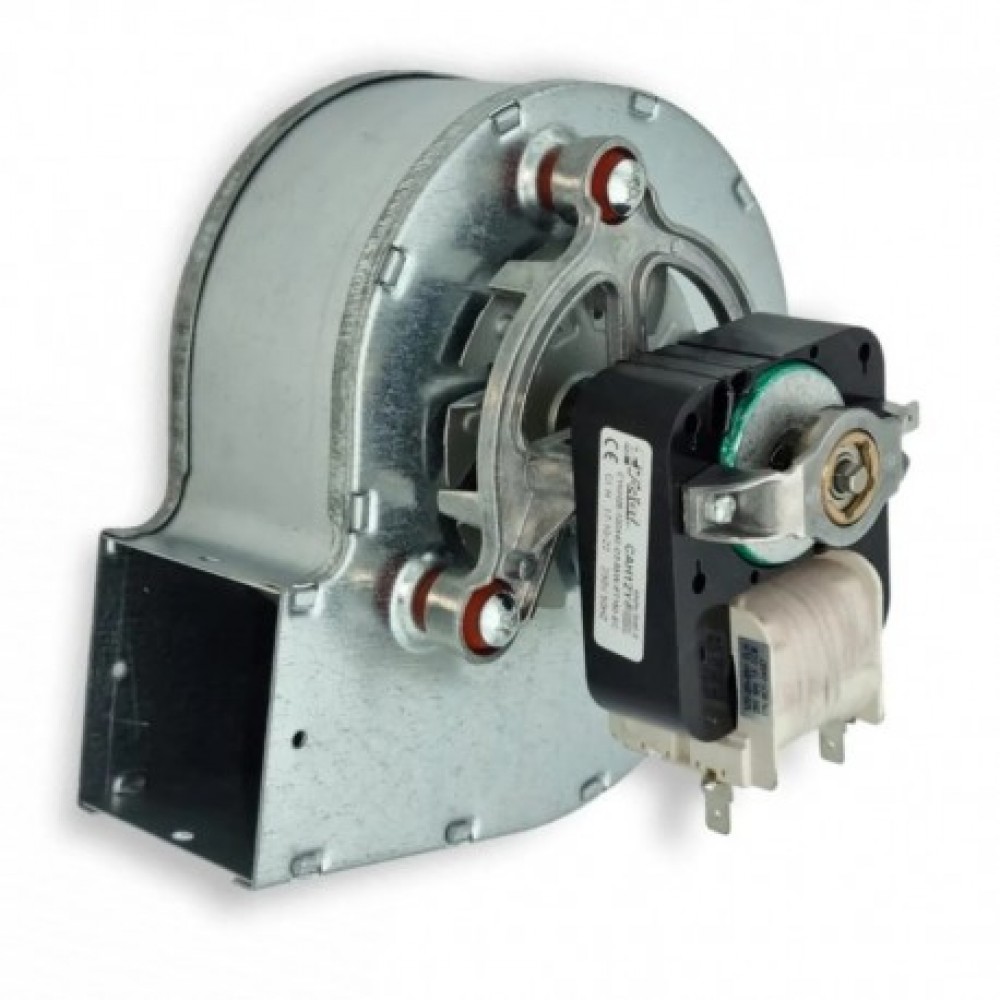

Centrifugal fan TRIAL CAH12Y5-001 / CYKH30-120X52-D3-80W-PT150 for pellet stoves and boilers biomass.
Maximum flow rate: 245 m³/h
Power consumption: 80 W

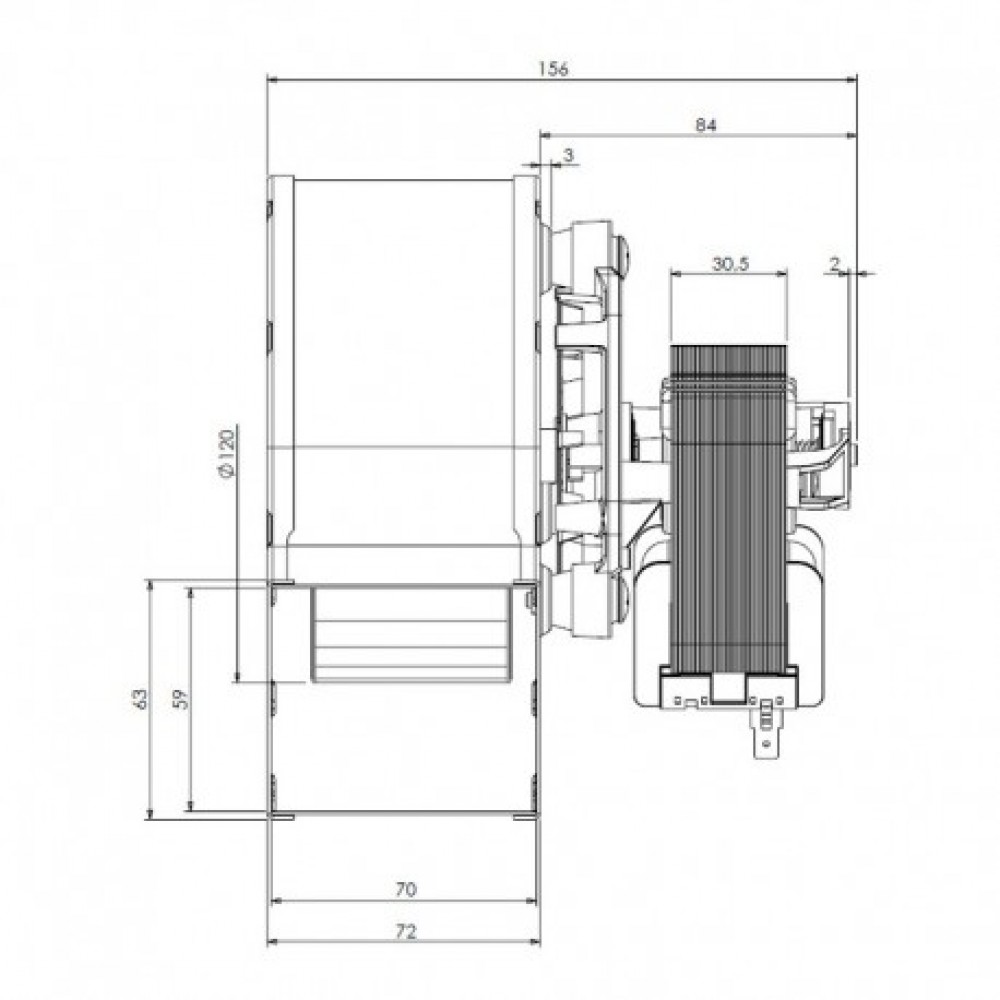

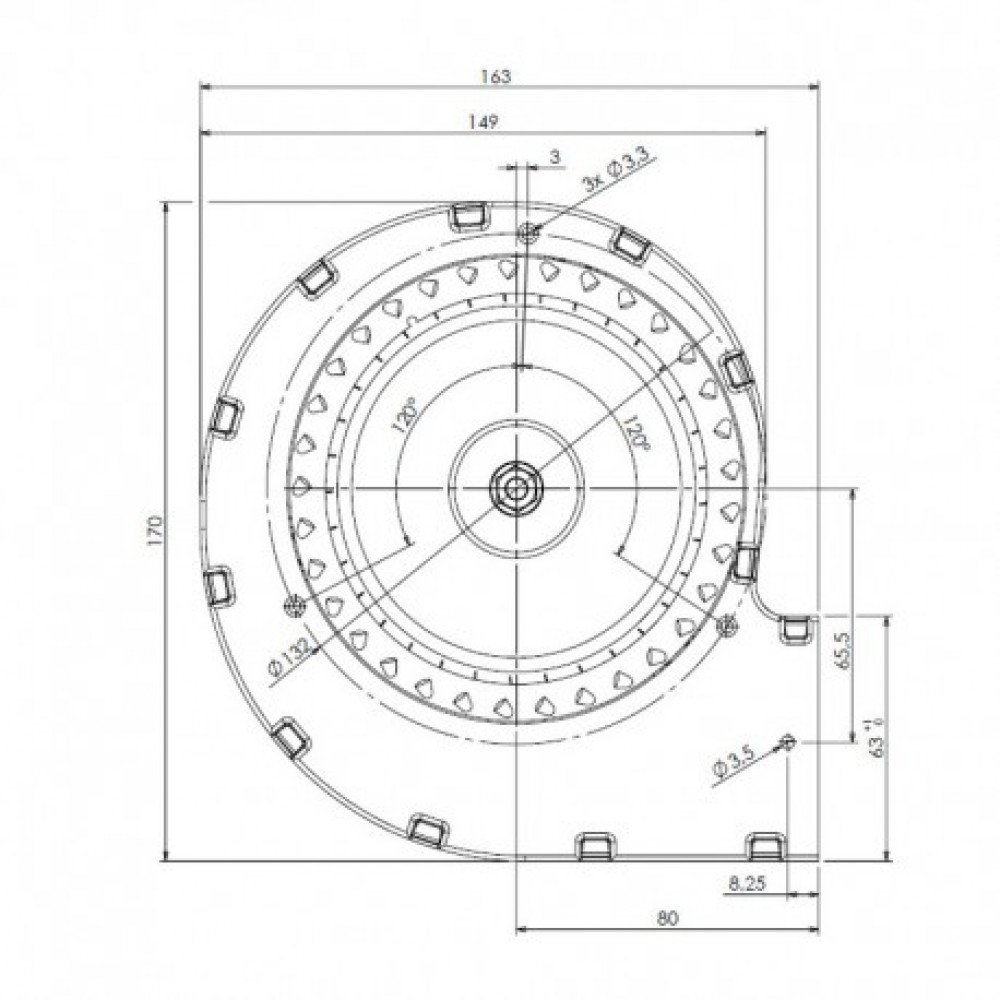

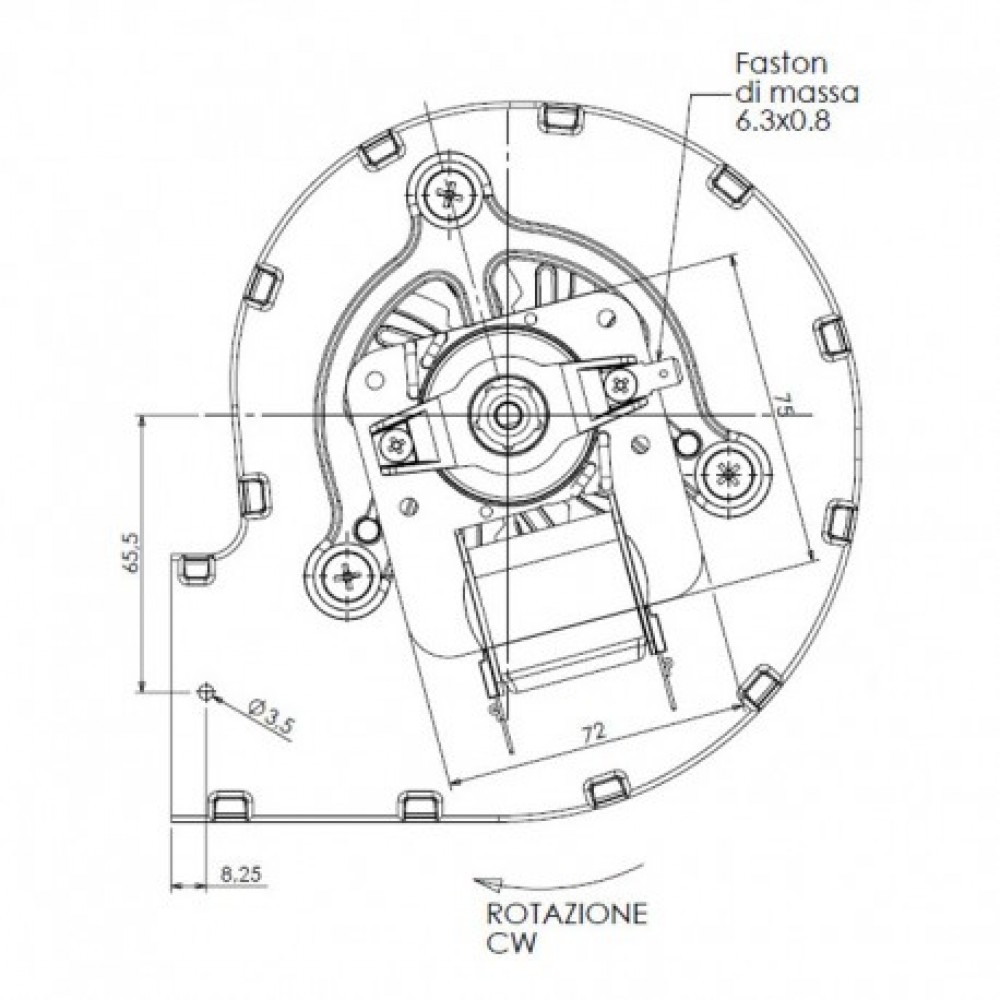

Total length: 163 mm
Dimensions of outlet nozzle: 63x70 mm
For high temperatures
Even air flow
| Characteristics | |
| Weight (kg) | 2.0000 |
| Warranty | 6 months |
| MPN | 14706182 |
| Electric power supply (V/Hz) | 220-240/50-60 |
| Power consumption (W) | 80 |
| Type | Hot air ventilator |
| Total length [mm] | 163 |
| Maximum airflow rate (m³/h) | 245 |
| Nozzle dimensions (mm) | 63x70 |
| Compatibility | Piazzetta, Extraflame, Thermorossi, Dal Zotto, Marocchi |
