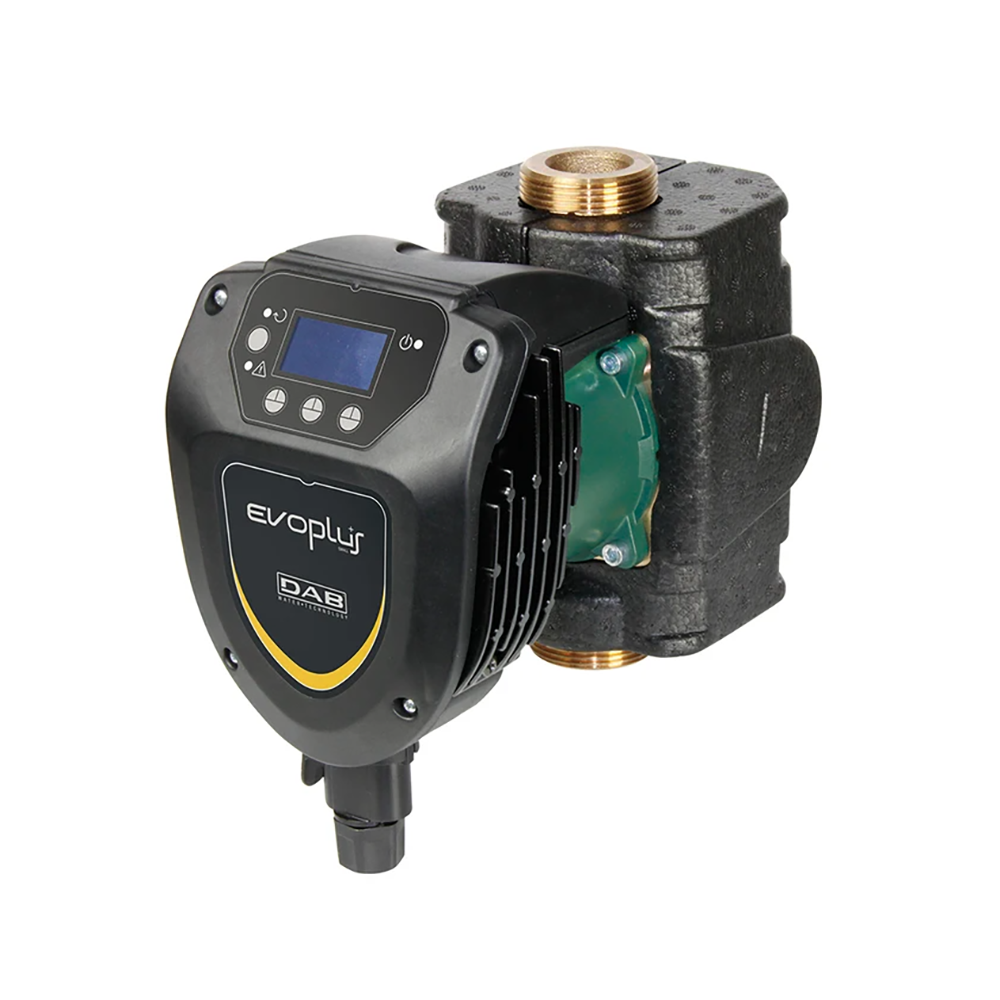

Electronic circulation pump DAB EVOPLUS 80/180XM, head 8 m, flow 10.8 m³/h, power 135 W

The DAB EVOPLUS 80/180XM circulation pump is a highly efficient electronic circulator designed for modern heating and air conditioning systems in residential and commercial buildings.

Thanks to its intelligent control and wet rotor, it automatically adapts its operation to the needs of the system, while ensuring maximum energy efficiency (EEI < 0.21), low noise level and increased comfort.

With compact dimensions and easy installation, the pump offers reliable and long-term operation with minimal operating costs.

Technical description

• Model – EVOPLUS
• Type – 80/180 XM
• EEI <0.21
• Max. fluid operating temperature [°C] – 110
• Operating temperature min. fluid [grd C] – 10
• Min. aspiration pressure at T=90C [mca] – 10
• Maximum WORKING PRESSURE [bar] 16
• EFFORT [m] – 8.2
• Max. Flow Rate [mc/h] – 10.8
• Pump housing connections [inch] – 2 G
• Height [mm] – 223
• Width [mm] – 140
• Distance between connections [mm] – 180
• Power supply [V/Hz] – 230/50
• Max. rated current [A] – 0.93
• Max. electrical power [KW] – 0.135
• Nino protection – IP44
• Insulation class – F
• Max. Speed ​​[rpm] – 2,900
• Weight [kg] – 2.8

APPLICATIONS

DAB EVOPLUS 80/180XM is widely used in heating, ventilation and air conditioning installations of various types of buildings. It is suitable for:

• Large residential buildings (cooperatives, blocks of flats, houses)

• Educational institutions (schools)

• Healthcare facilities (clinics, hospitals)

• Office buildings and administrative centers

• Commercial and industrial real estate

Thanks to electronic control, the pump provides adaptability to different loads and temperature conditions, while guaranteeing optimal performance.

HEATING APPLICATIONS
Heating needs in buildings vary throughout the day depending on the outside temperature and occupancy. DAB EVOPLUS 80/180XM is designed to adapt to these changes through intelligent control that adjusts flow and pressure in real time. This allows the pump to deliver exactly the energy needed, without unnecessary consumption, while ensuring quiet operation and comfort. It is suitable for installations with multiple branches and different temperature requirements in individual rooms.

AIR CONDITIONING APPLICATIONS
Unlike conventional pumps, the DAB EVOPLUS 80/180XM is perfectly suited for air conditioning systems where the fluid may be at a temperature lower than the ambient temperature. In such conditions, condensation may form on the pump housing, but its design has been specially developed to allow the safe removal of moisture without compromising the performance of the electronic and mechanical components. This makes it a reliable choice for cooling installations, even under demanding operating conditions.
