Single-phase centrifugal pump Speroni CM 32 – power 0.75 kW, head 29 m, flow rate 125 l/min

Centrifugal pump CM 32 – Reliable solution with 1 HP power, flow rate up to 125 l/min and head up to 29 meters – for domestic, agricultural and industrial applications

The CM 32 single impeller centrifugal pump is a highly efficient solution suitable for small, medium and large flow applications. It is suitable for various types of installations – domestic, agricultural and industrial.

It is extremely effective in automatic water distribution through pressure tanks (hydrophores), for rain and surface irrigation in gardens and agricultural areas, as well as for increasing pressure in systems connected to water supply networks.

It operates reliably at pumped liquid temperatures up to 35°C in domestic use, and up to 60°C in other applications. It allows operation at ambient temperatures up to 40°C and a maximum self-priming depth of up to 7 meters.

It is built for continuous operation (S1), which guarantees long service life and reliability.

The Minimum Efficiency Index (MEI) is ≥ 0.4, making it an energy-efficient choice.

Mechanical and structural durability is ensured by high-quality materials:

• Pump housing and motor support – made of sturdy cast iron
• Impeller (fan) and motor shaft – made of stainless steel AISI 304
• Mechanical seal – made of ceramic / graphite / NBR, ensuring wear resistance and long life

The motor is a bipolar induction motor with 2850 rpm, with insulation class F and protection class IP 44, guaranteeing safe and reliable operation in various conditions.

Main advantages:

• Reliable operation in continuous mode (S1)
• Suitable for both home and professional use
• Made of strong and durable materials
• High performance with optimal energy consumption
• Compact and easy to install

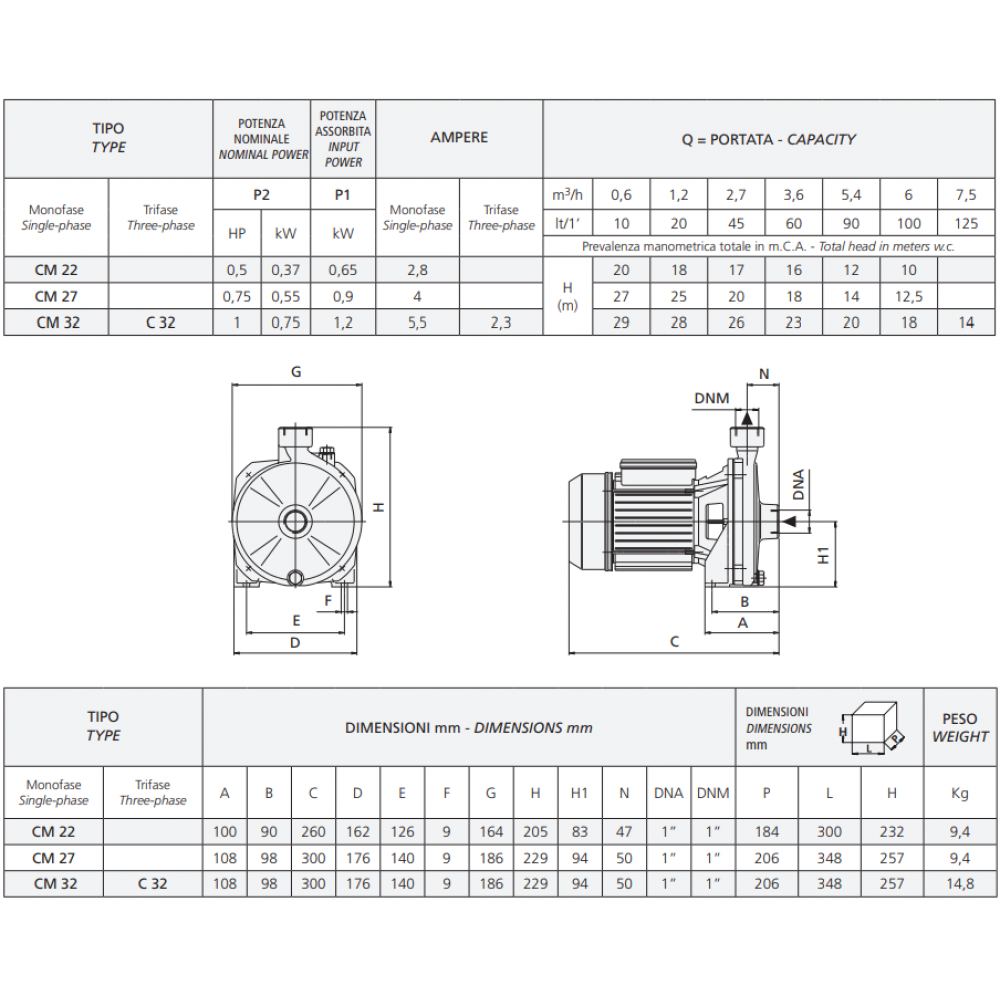

Technical specifications:

• Model: CM 32
• Phase: Single phase (230V, 50Hz)
• Rated power: 1 HP / 0.75 kW
• Power consumption: 1.2 kW

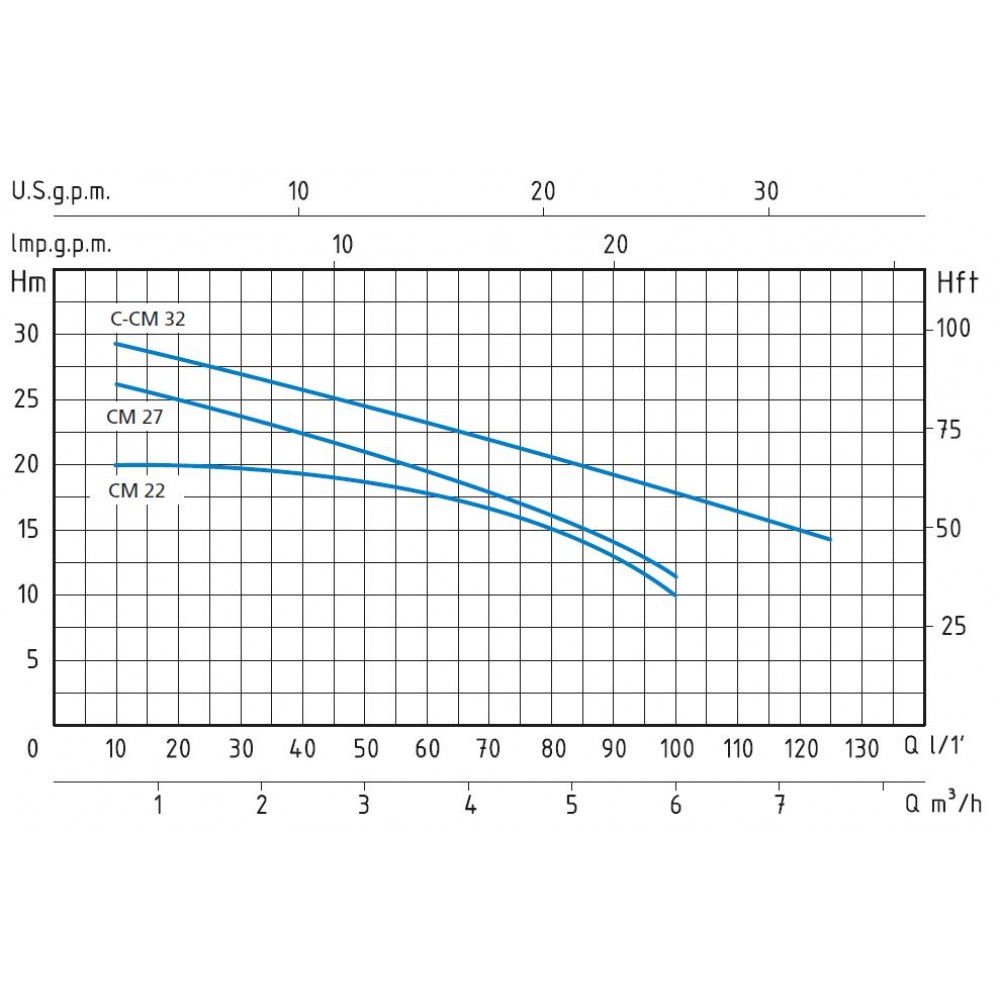

• Flow rate (Q): 125 liters/minute
• Head (H): 29 meters
• Inlet / Outlet: 1" / 1"
