Multi Fuel Boiler Stove Victoria 05 Panama 2 AB 9kW

Multi Fuel Boiler Stove Victoria 05 Panama 2 AB 9kW

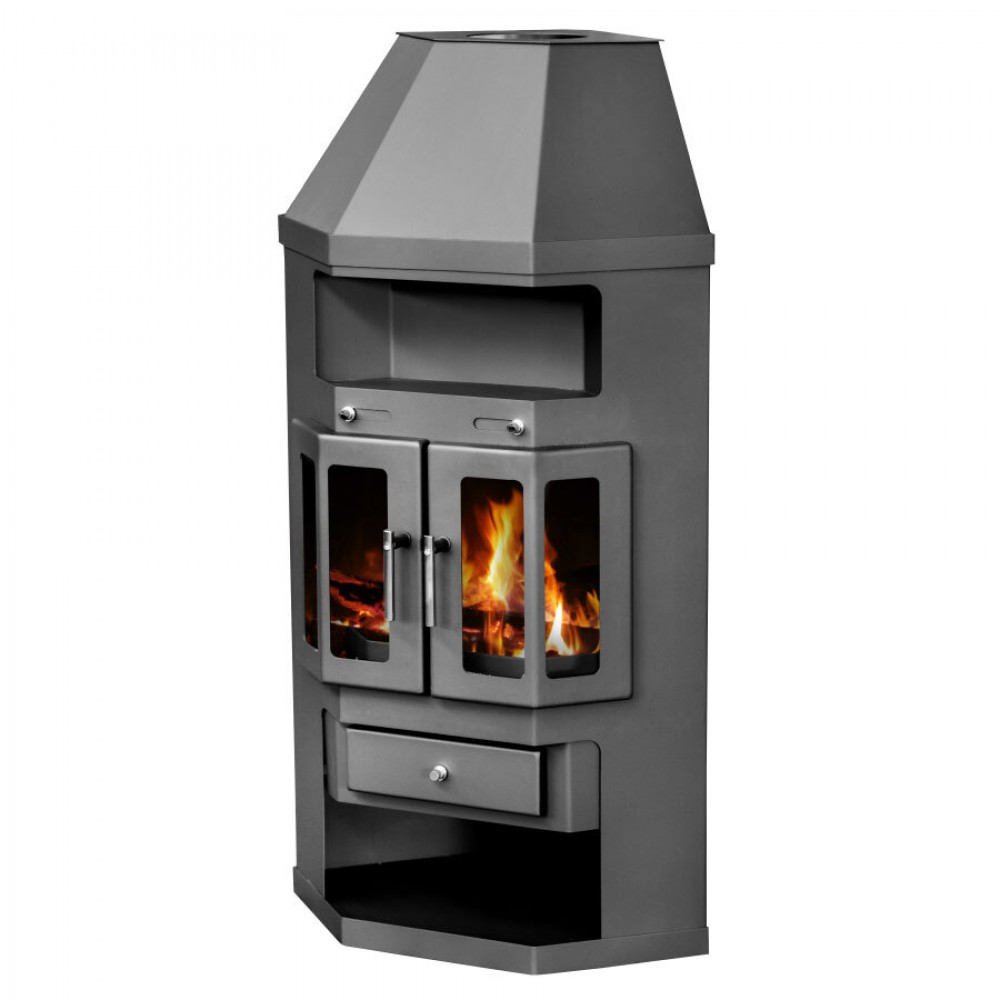

Wood burning boiler stove with big combustion chamber and 2 doors.

Please choose a variant first.
€ 606.00 In stock
Old price:
You save:
Out of stock

Color : black

  • Body made of 4mm thick sheet steel
  • Built-in hot water boiler for a central heating system.
  • Combustion chamber lined with firebricks that accumulate heat and increase burning temperature.
  • The combustion chamber is equipped with heat resistant ceramic glass that can withstand temperatures of up to 850°C.
  • Cast iron grate.
  • Door sealing made of fiberglass, does not contain asbestos
  • Front damper for controlling the air supply
  • Secondary air flap that increases the combustion temperature, efficiency and prevents fumigation of the glass.
  • Metal door handles.
  • Arch and niche on top.
  • Compartment to store and dry moist wood.
  • Thermal discharger system.

WARNING!

 - Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.

Achieving the desired heat output depends on:

  • the selected fuel with the necessary caloricity and humidity
  • its subsequent kindling and refueling
  • the regulation of the primary and the secondary air
  • the regulation of the draught
  • the organizing of effective air heat exchange, etc.

Recommendations

 - We recommend the installation to be done in an open type system.When connected in closed circuit system it must be fully protected using safety valves for temperature and pressure up to 2.5bar. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.

 - In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.

  • Weight (kg): 93.0000
  • Country of Manufacture: Bulgaria
  • Dimension Depth (mm): 582
  • Dimension Width (mm): 650
  • Dimension Height (mm): 1210
  • Warranty: 2 Years
  • Operating pressure (bar): 2
  • Certification: CE
  • Nominal thermal power (kW): 9
  • Approximate heating surface (m²): 70
  • Energy efficiency class: A
  • Flue (mm): 150
  • Exhaust Location: Top side
  • Heat output (kW): 9.00
  • Recommended fuel: briquettes, Wood up to 20% humidity
  • Efficiency (%): 73.44
  • Approximate heating capacity (m³): 189
  • Water heating output (kW): 5
  • Construction material: Steel
  • Boiler capacity (L): 12.9
  • Water testing overpressure (bar): 4
  • Fuel consumption during heating period: 2.80 kg/h
  • Required chimney draught (Pa): 12
  • Space heating output (kW): 4
  • Ash and soot container: Yes
  • Heating type: Hydro - Radiator
  • Maximum temperature of flue gas (°C): 272
  • CO measured at 13% Oxygen at rated power(reduced) [%]: 0.0989
  • Emissions (g/s): 9.17
  • Lining: None
  • Placement: Corner
  • Combustion chamber dimensions (Height, Width, Depth), mm: 480 x 560 x 390
