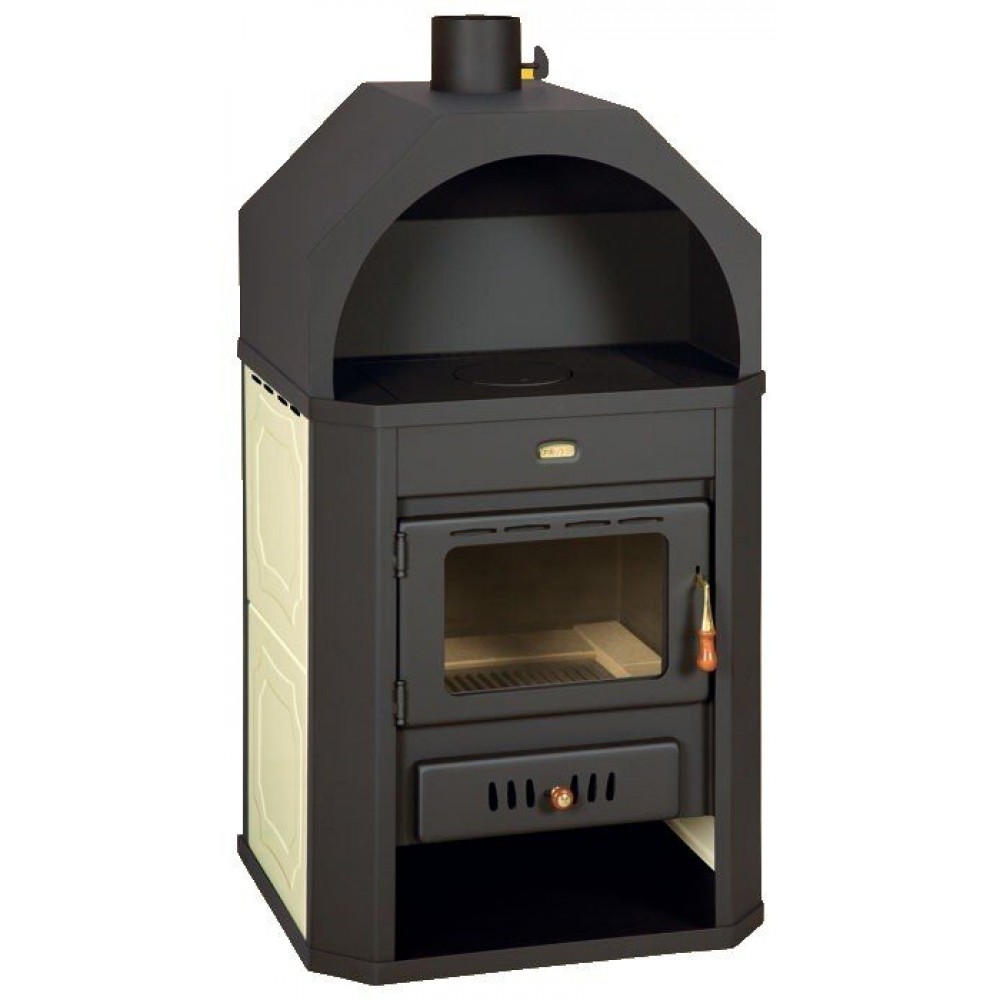

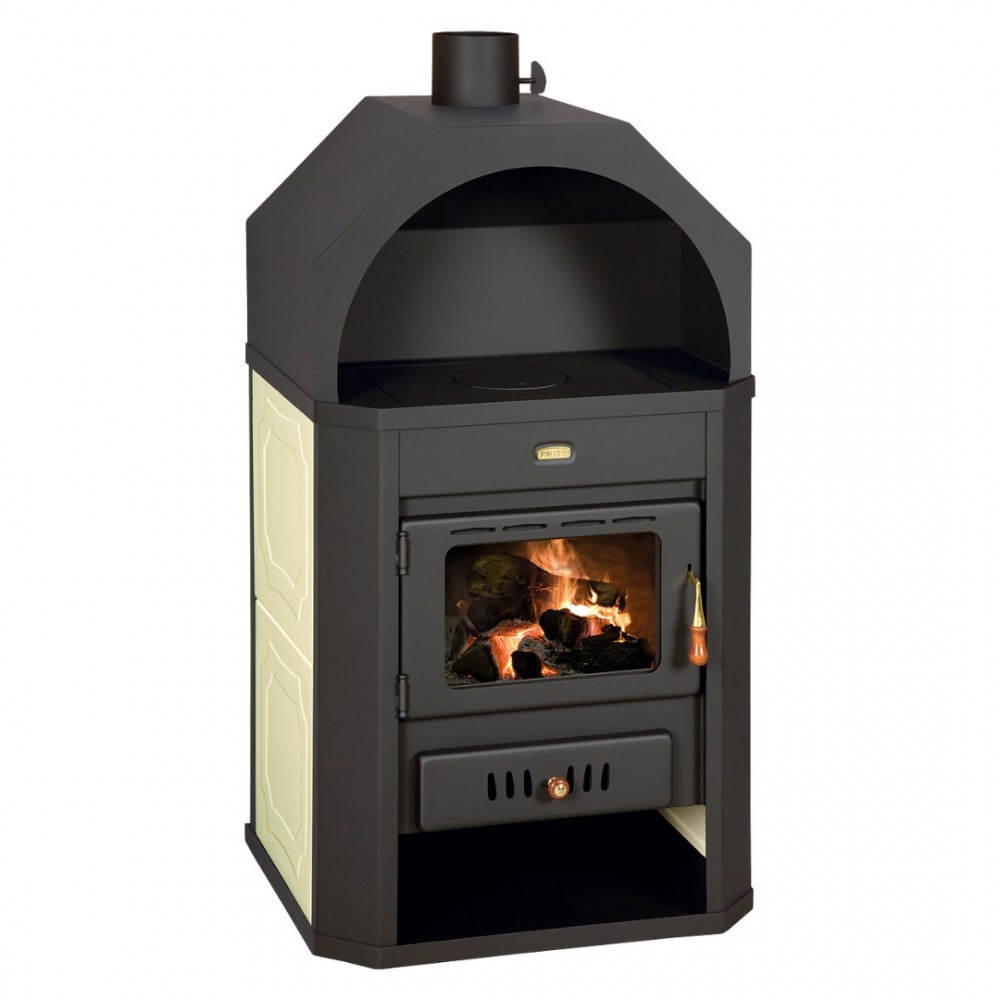

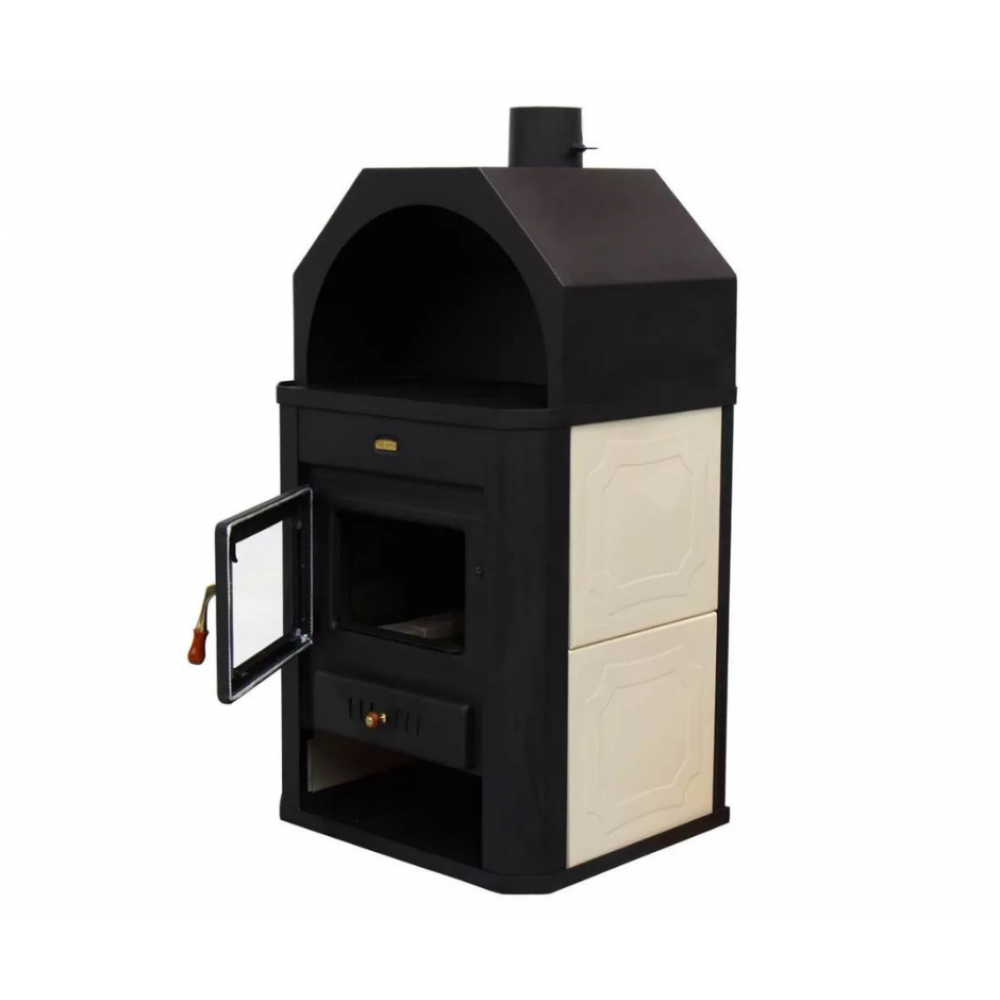

Wood Burning Stove with Back Boiler Prity W17, 17 kW

Wood Burning Stove with Back Boiler Prity W17 – Large Combustion Chamber and Classic Arch

The Prity W17 wood burning stove with back boiler is a heating station for larger homes that combines powerful central heating with a classic look featuring an arch. The appliance delivers 7 kW directly to the room by radiation and up to 17 kW to the back boiler, which supplies the radiators of the central heating system. The approximate heated area is up to 131 m² (volume 450 – 535 m³). The large combustion chamber takes logs up to 44 cm long, which means less frequent loading. With energy class A and an efficiency of 76.2%, the stove provides powerful and economical heating. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity W17 Stove

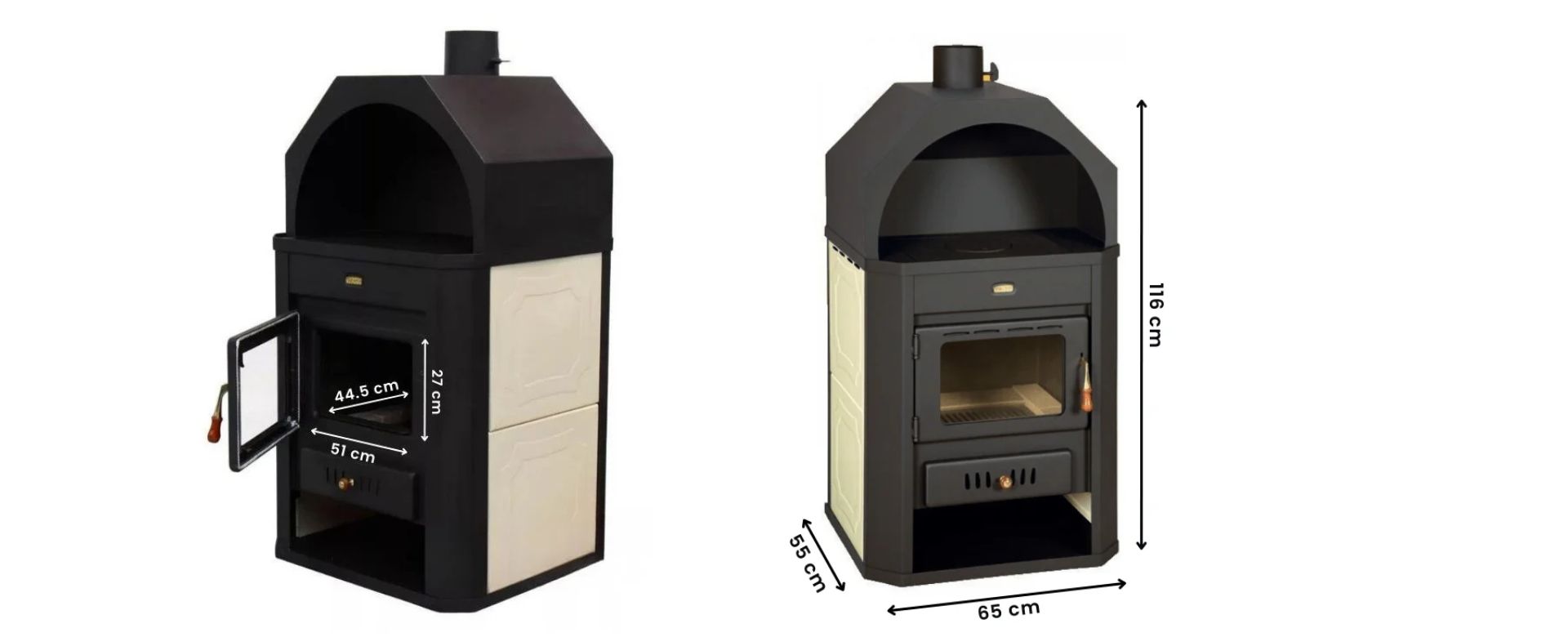

• Large combustion chamber – measuring 270 x 510 x 445 mm, it takes logs up to 440 mm long and extends the burn time.
• Classic arched design – gives the room a finished, distinguished look.
• 18-litre back boiler – heats radiators in many rooms, with 1" connections for hot and cold water.
• High radiant output – 7 kW directly to the room in which the stove is installed.
• Sturdy steel body – made of 2 mm thick steel sheets, with a top plate made of 3–4 mm thick steel.
• Thermal-shock-resistant ceramic glass – the combustion chamber is fitted with glass that withstands high temperatures and gives a clear view of the flame.
• Cast iron grate – resistant to high temperatures and ensuring even combustion.
• Combustion control damper – located at the front, it lets you control the intensity of the flame.
• Manual flue outlet damper – for precise adjustment of the chimney draught.
• Wooden door handles – for convenient and safe use.

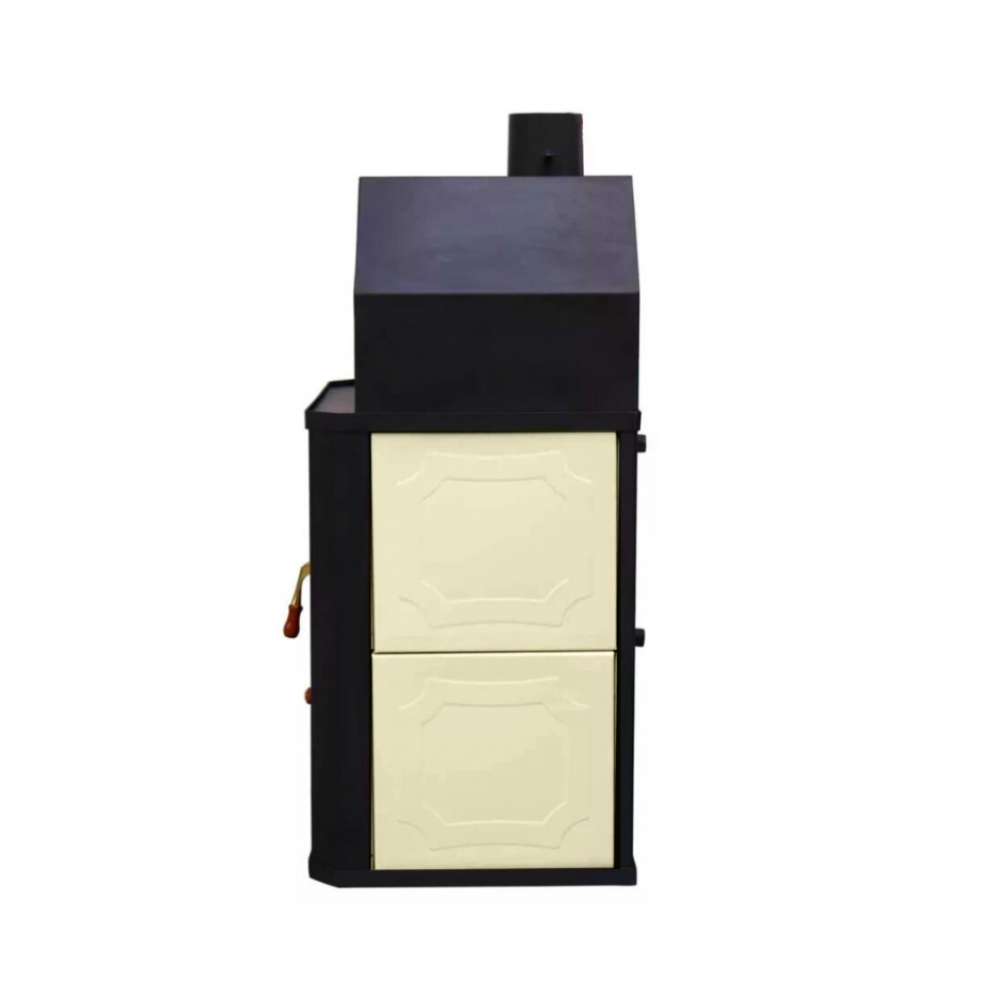

• Decorative metal cladding on the sides for a finished and stylish look.
• Log store – a compartment where the wood dries before use, which improves combustion.

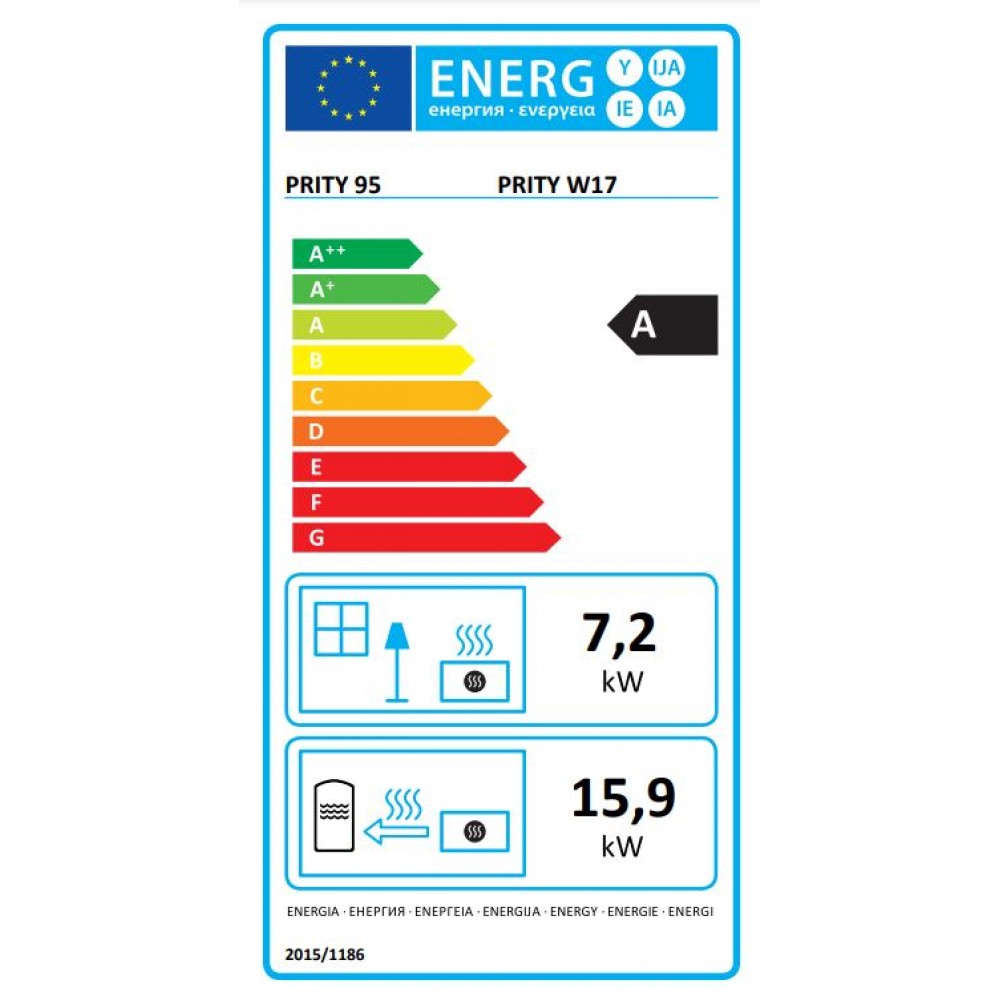

Efficiency and Energy Class

The Prity W17 stove meets the European Ecodesign requirements, which guarantee low harmful emissions, high efficiency and environmentally friendly burning of wood. With energy class A, an efficiency of 76.2%, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating for the whole home. The chimney diameter is 130 mm with a top flue outlet, allowing easy connection to a standard chimney system.

Important Installation and Operating Notes

• The stove must not be used without radiators and/or convectors installed – firing it with an empty back boiler will cause the boiler to burst.
• It is recommended that the central heating system be of the open type. In a closed system, a 1.5 bar pressure relief valve is mandatory.
• In systems with forced circulation, it is advisable to connect the circulation pump to a UPS.
• If there are copper components in the system, it must be protected against electrolysis, for example with a magnesium anode.

Technical Specifications
