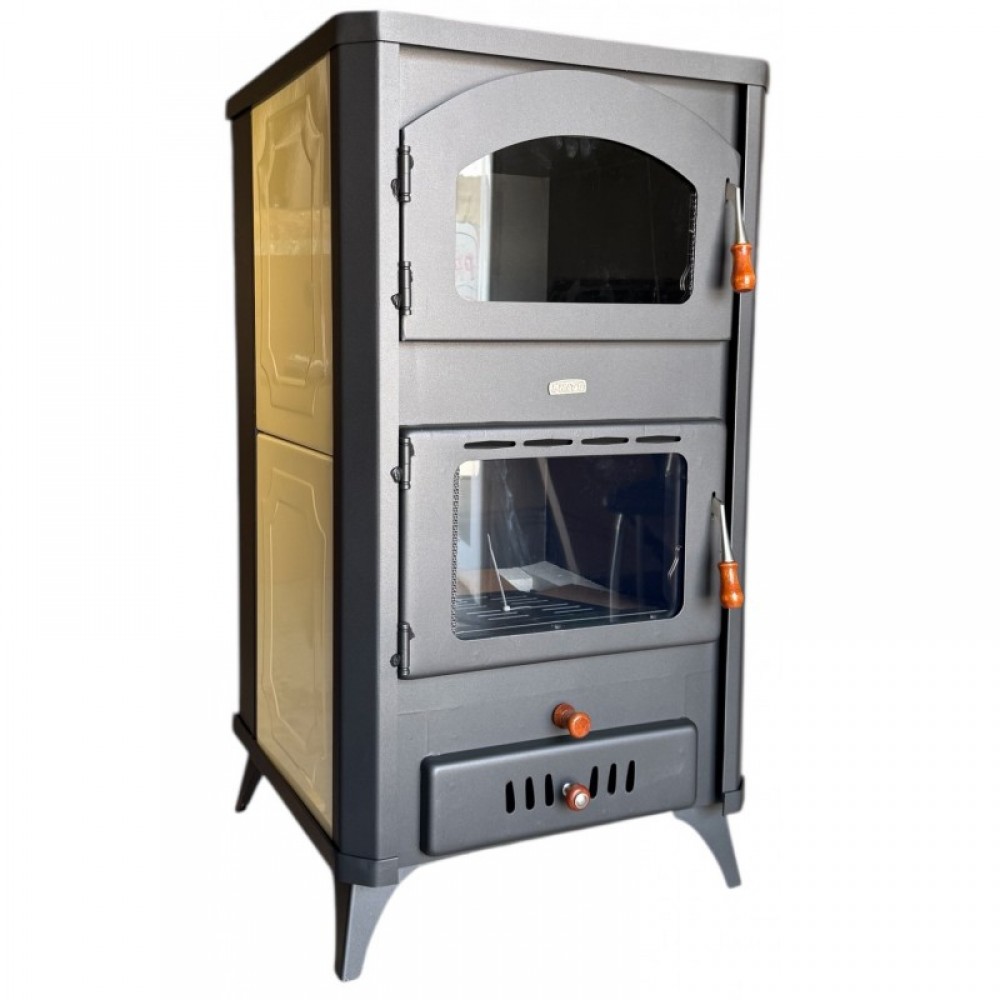

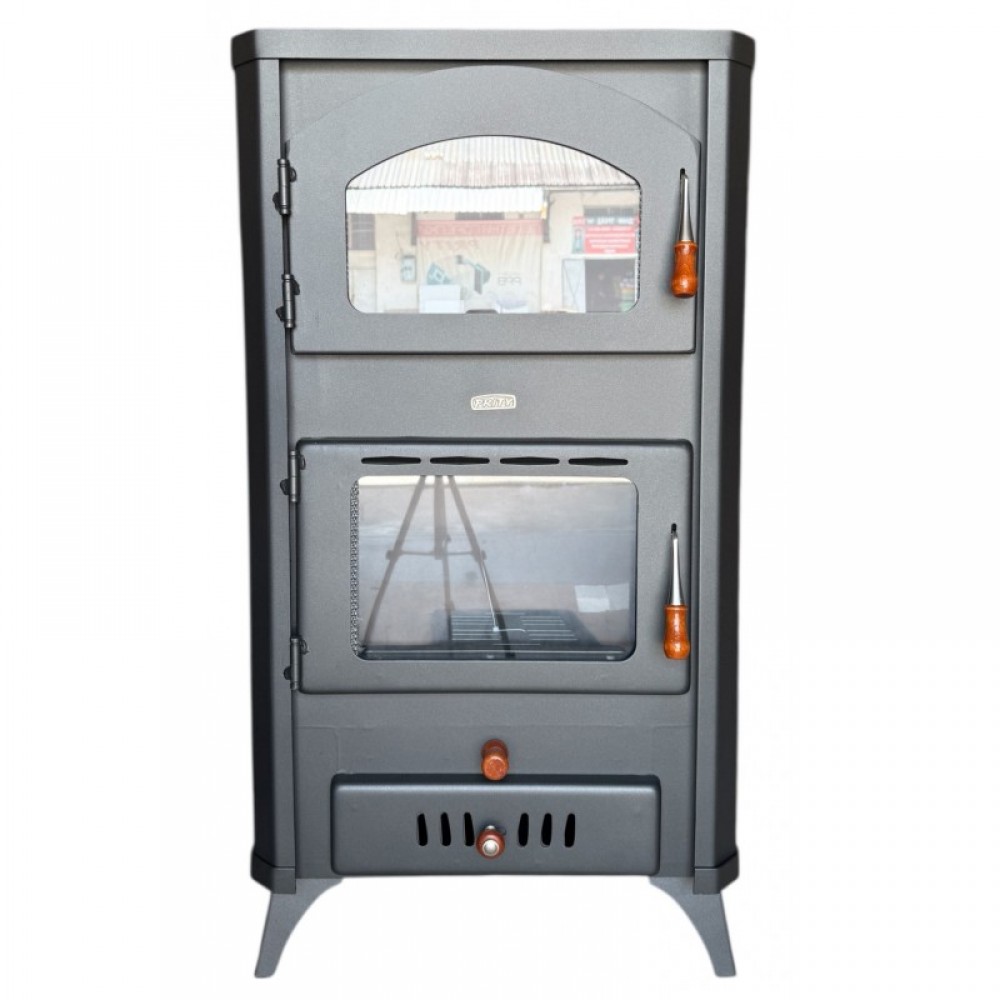

Wood Burning Stove with Oven and Back Boiler Prity FG W18 R, 18 kW

Wood Burning Stove with Oven and Back Boiler Prity FG W18 R – Powerful Heating and Cooking on Legs

The Wood Burning Stove with Oven and Back Boiler Prity FG W18 R is designed for larger homes that want central heating and a convenient oven in one appliance. The unit delivers 5 kW directly to the room by radiation and 18 kW to the back boiler, which supplies the radiators of the central heating system. The approximate heated area is up to 131 m² (volume 425 – 515 m³). The stove stands on decorative legs, which raise it and make cleaning around it easier. With energy class A and an efficiency of 76.5% it provides powerful and economical heating. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity FG W18 R Stove

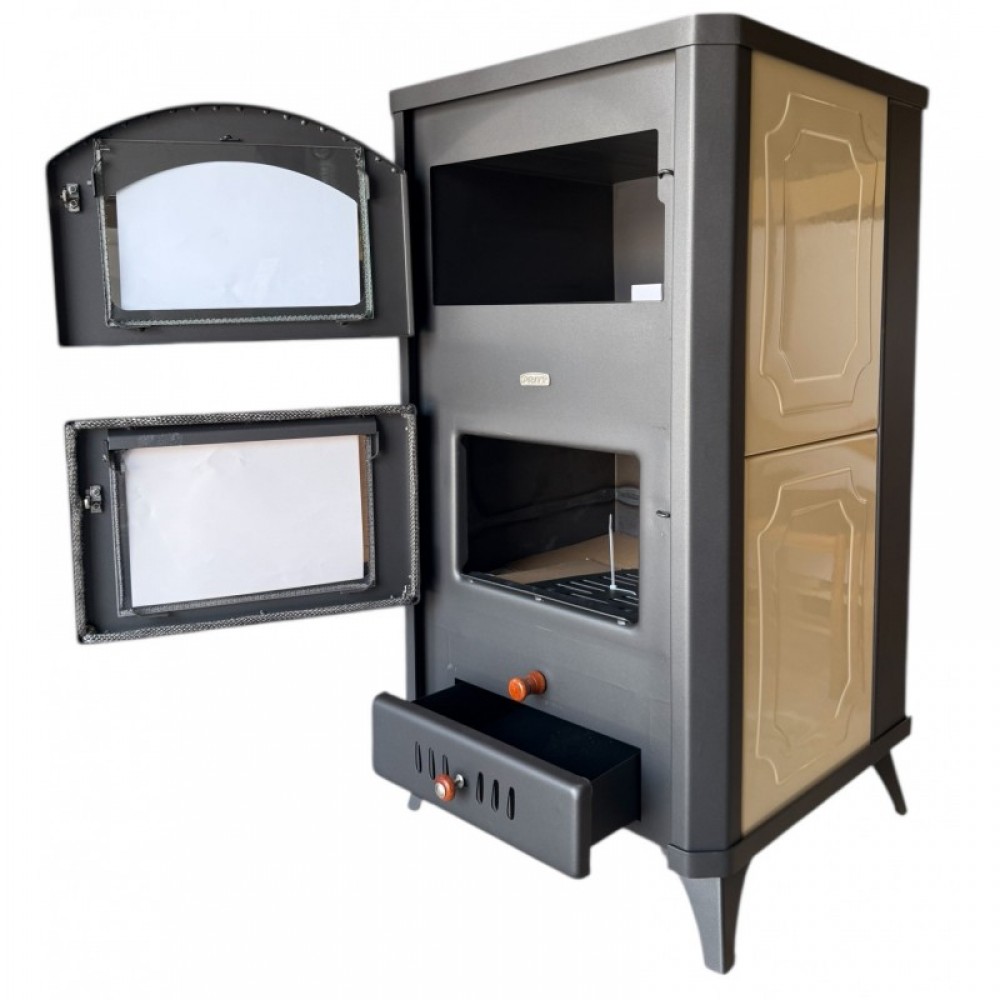

• Built-in oven – measuring 190 x 395 x 410 mm, with a tempered glass door and a thermometer to monitor the baking temperature.
• 15-litre back boiler – heats radiators in many rooms, with 1" connections for hot and cold water.
• Decorative legs – they raise the stove and give it a finished look.
• Wide combustion chamber – measuring 270 x 465 x 430 mm, it takes logs up to 430 mm.
• Sturdy steel body – made of steel sheets with a thickness of 2 mm, and the top plate of steel with a thickness of 3–4 mm.
• Thermal shock-resistant ceramic glass – the combustion chamber is fitted with high-temperature-resistant glass that gives a clear view of the flame.
• Cast iron grate – resistant to high temperatures and ensuring even combustion.
• Combustion control damper – located at the front, it lets you control the intensity of the flame.
• Manual flue outlet damper – for precise adjustment of the chimney draught.
• Wooden door handles – for convenient and safe use.
• Decorative metal cladding on the sides for a finished, stylish look.

Efficiency and Energy Class

The Prity FG W18 R stove complies with the European Ecodesign requirements, which guarantee low harmful emissions, high efficiency and environmentally friendly burning of wood. With energy class A, efficiency of 76.5%, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating for the whole home. The chimney diameter is 130 mm with a top flue outlet, allowing easy connection to a standard chimney system. The required chimney draught is 10.7 Pa.

Important Notes on Installation and Operation

• The stove must not be used without radiators and/or convectors installed – firing with an empty back boiler will cause it to crack.
• It is recommended that the central heating system be of the open type. A closed system requires a mandatory pressure relief valve set at 1.5 bar.
• In systems with forced circulation, it is advisable to connect the circulation pump to a UPS.
• If the system contains copper components, it must be protected against electrolysis, for example with a magnesium anode.

Technical Specifications
