Wood Burning Stove with Back Boiler and Cast Iron Hob Prity K22 CP W10, 7.1 kW

Wood Burning Stove with Back Boiler and Cast Iron Hob Prity K22 CP W10 – Cooking Hob and Central Heating

The Prity K22 CP W10 wood burning stove with back boiler and cast iron hob, in an elegant black graphite finish, is designed for homes that want reliable central heating plus the option of cooking on the cast iron hob. Its distinctive feature is the additional lower door – the main door is positioned higher, while the smaller lower door makes lighting and cleaning easier. The appliance delivers 6.2 kW directly to the room by radiation and up to 10 kW to the back boiler, which supplies the radiators of the central heating system. The approximate heated area is up to 79 m² (volume 300 – 355 m³). With energy class A and an efficiency of 77.6%, the stove makes full use of every load of wood. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity K22 CP W10 Stove

• Two doors – a main loading door and an additional lower door for easy lighting and cleaning.
• Cast iron hob – a sturdy, heat-resistant surface that retains heat and can be used for cooking and warming food.
• 14-litre back boiler – heats radiators in several rooms.
• Sturdy steel body – made of 2 mm thick steel sheets.
• Thermal-shock-resistant ceramic glass – the combustion chamber is fitted with glass that withstands high temperatures and gives a clear view of the flame.
• Cast iron grate – resistant to high temperatures and ensuring even combustion.
• Combustion control damper – located at the front, it lets you control the intensity of the flame.
• Manual flue outlet damper – for precise adjustment of the chimney draught.
• Wooden door handles – for convenient and safe use.
• Log store – a compartment where the wood dries before use, which improves combustion.

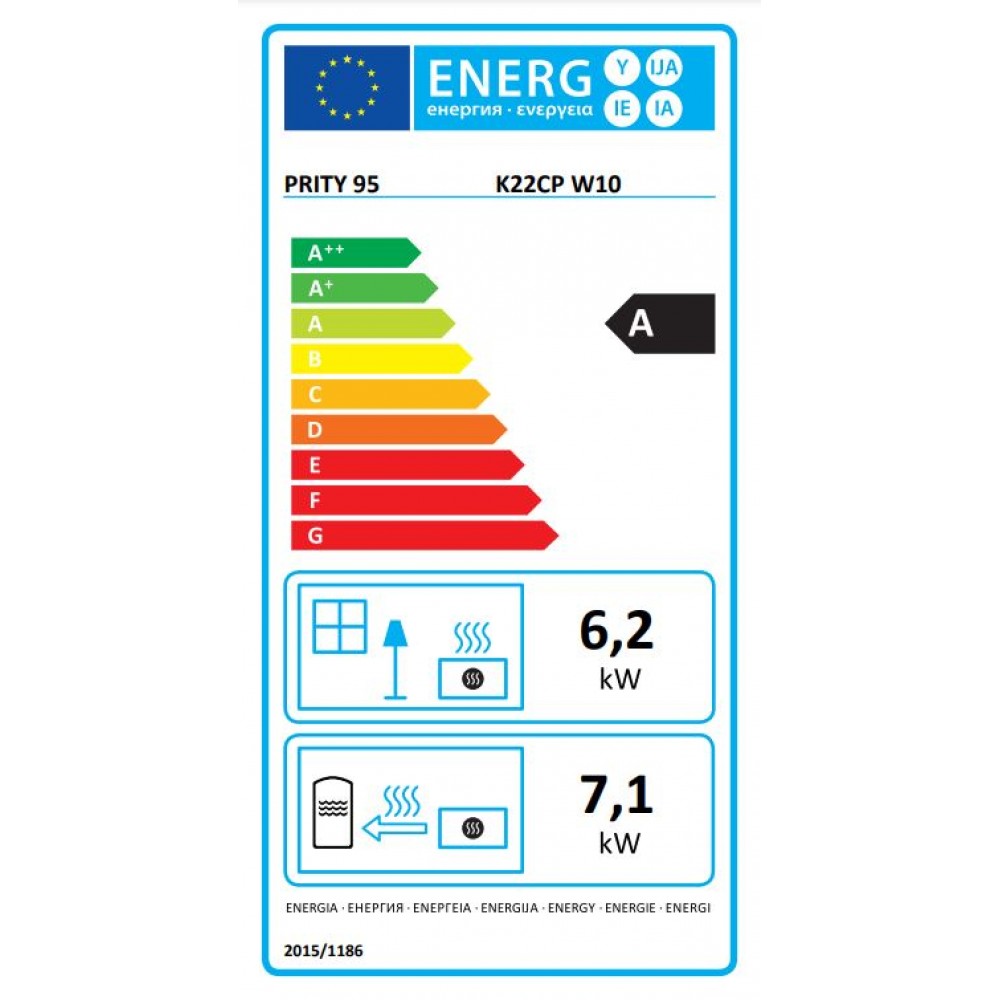

Efficiency and Energy Class

The Prity K22 CP W10 stove meets the European Ecodesign requirements, which guarantee low harmful emissions, high efficiency and environmentally friendly burning of wood. With energy class A, an efficiency of 77.6%, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly home heating. The chimney diameter is 130 mm with a top flue outlet, allowing easy connection to a standard chimney system. The required chimney draught is 11 Pa.

Important Installation and Operating Notes

• The stove must not be used without radiators and/or convectors installed – firing it with an empty back boiler will cause the boiler to burst.
• It is recommended that the central heating system be of the open type. In a closed system, a 1.5 bar pressure relief valve is mandatory.
• In systems with forced circulation, it is advisable to connect the circulation pump to a UPS.
• If there are copper components in the system, it must be protected against electrolysis, for example with a magnesium anode.

Technical Specifications
