Victoria 05 Pearl AB 18kW

Victoria 05 Pearl AB 18kW
FREE DELIVERY EU

Victoria 05 Pearl AB 18kW

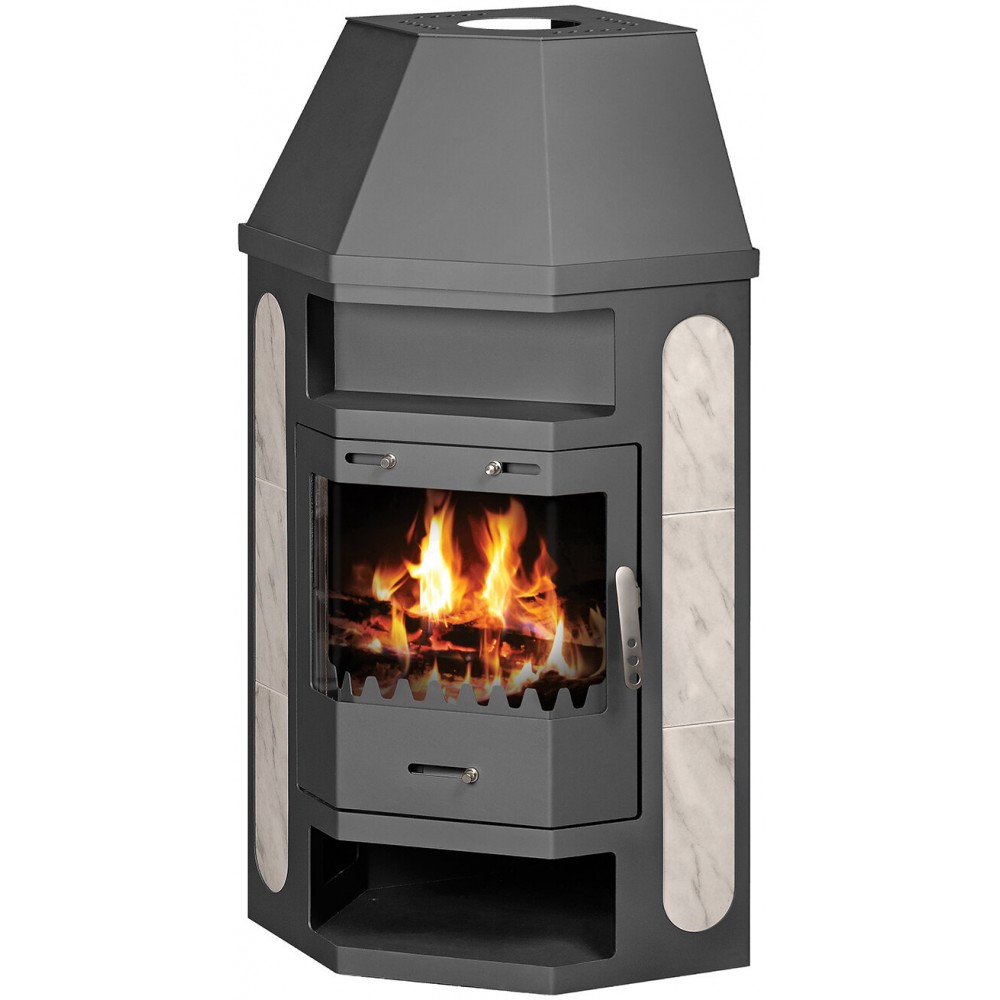

Wood burning boiler stove Victoria 05 Pearl AB for central heating. The model is equipped with arched and ceramic lining.

Please choose a variant first.
€ 976.63 In stock
Old price:
You save:
Out of stock

Color : graphite grey

  • Body made of 4mm thick sheet steel
  • Built-in hot water boiler for a central heating system.
  • The combustion chamber is equipped with heat resistant ceramic glass.
  • Cast iron grate.
  •  Front damper for controlling the air supply
  •  Smoke damper for adjusting the flame intensity
  • Pentagonal shape of the stove.
  • Suitable for corner placement.
  • Metal door handles.
  • Arch and niche on top.
  • Ceramic lining on the sides.
  • Compartment to store and dry moist wood.

WARNING!

Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.

Achieving the desired heat output depends on:

  • the selected fuel with the necessary caloricity and humidity
  • its subsequent kindling and refueling
  • the regulation of the primary and the secondary air
  • the regulation of the draught
  • the organizing of effective air heat exchange, etc.

Recommendations

 - We recommend the installation to be done in an open type system.When connected in closed circuit system it must be fully protected using safety valves for temperature and pressure up to 2.5bar. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.

 - In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.

  • Weight (kg): 185.0000
  • Country of Manufacture: Bulgaria
  • Dimension Depth (mm): 610
  • Dimension Width (mm): 755
  • Dimension Height (mm): 1310
  • Warranty: 2 Years
  • Operating pressure (bar): 2
  • Certification: CE
  • Approximate heating surface (m²): 79 / 850
  • Flue (mm): 150
  • Exhaust Location: Top side
  • Heat output (kW): 18.00
  • Efficiency (%): 74.14
  • Approximate heating capacity (m³): 215
  • Water heating output (kW): 10
  • Construction material: Steel
  • Boiler capacity (L): 15.5
  • Water testing overpressure (bar): 4
  • Fuel consumption during heating period: 4.31 kg/h
  • Space heating output (kW): 8
  • Ash and soot container: Yes
  • Heating type: Hydro - Radiator
  • CO measured at 13% Oxygen at rated power(reduced) [%]: 0.0953
  • Lining: Ceramic
  • Combustion chamber dimensions (Height, Width, Depth), mm: 510 x 380 x 450
