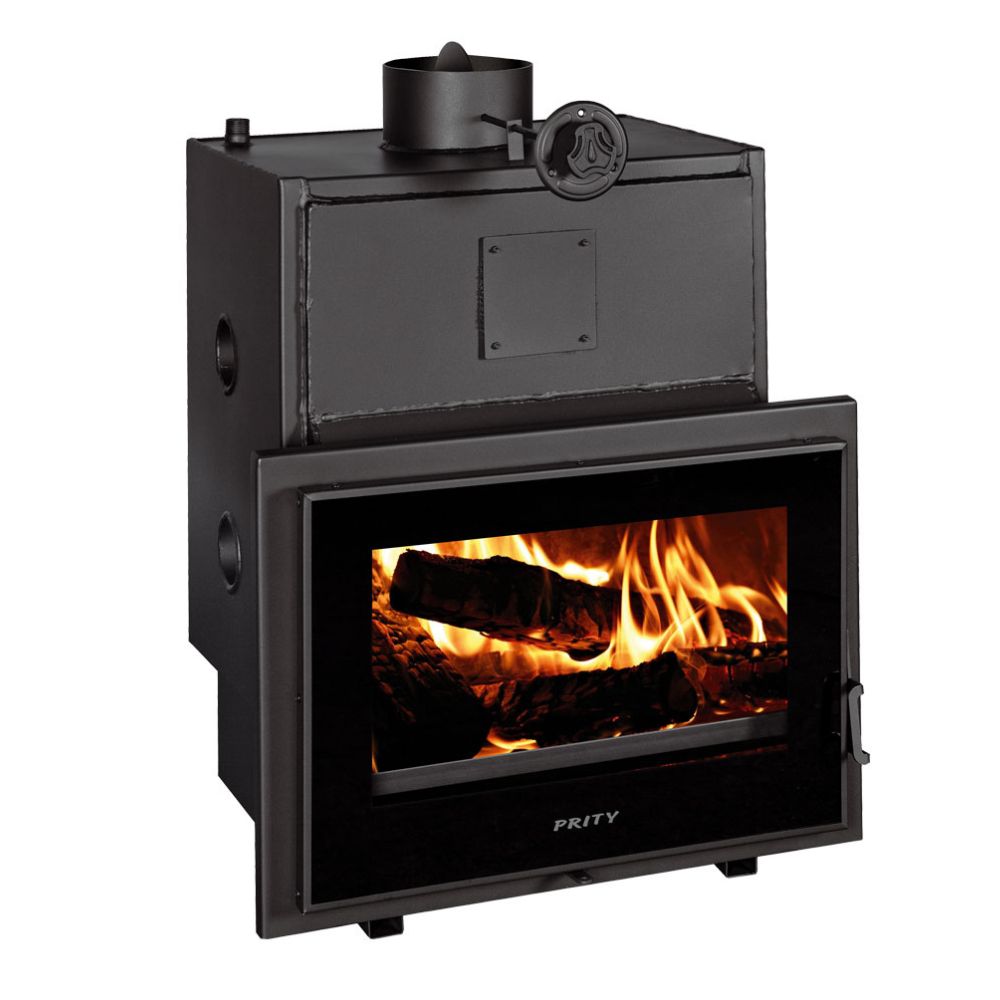

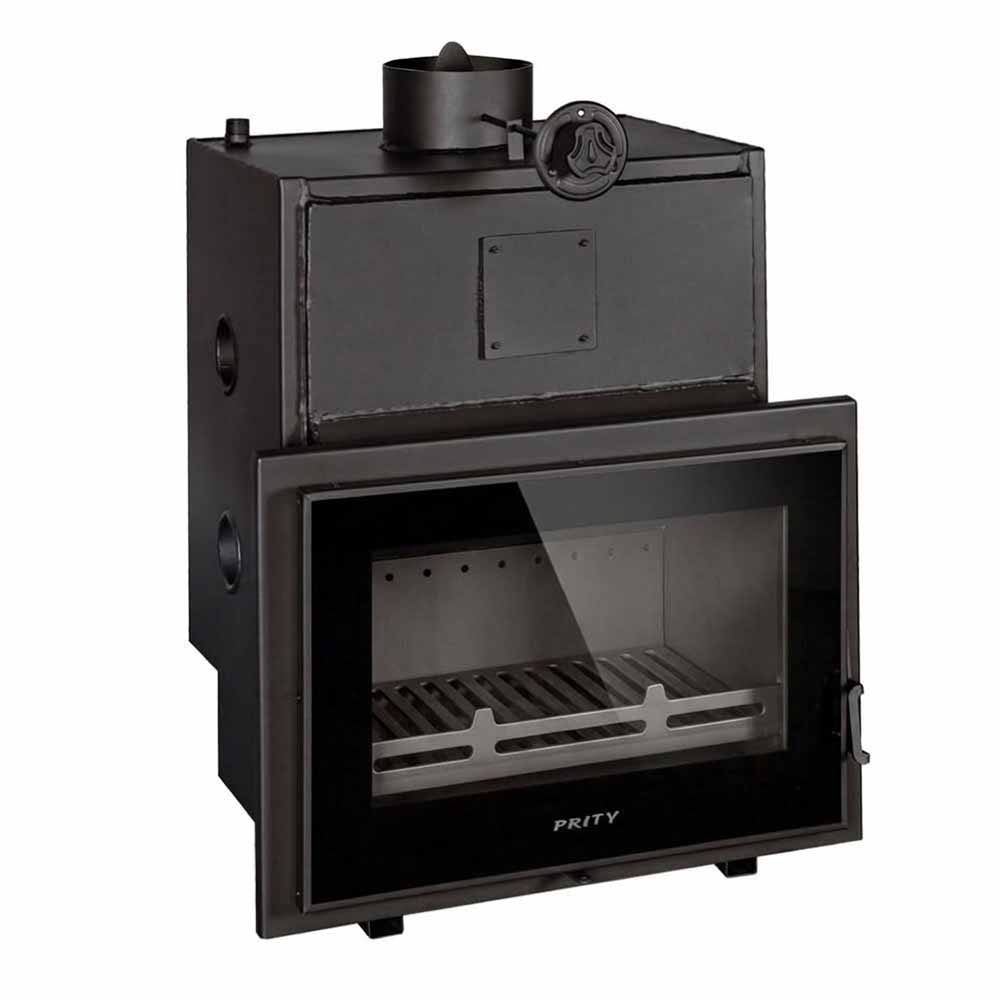

Back Boiler Fireplace Prity P W28 TV, 28.2 kW

Back Boiler Fireplace Prity P W28 TV, 28.2 kW – Modern Design and Powerful Radiator Heating

The Prity P W28 TV wood burning fireplace in an elegant black graphite finish combines a modern design with powerful central heating. It is suitable for large houses and villas where a single fireplace has to heat the whole home. With a total heat output of 28.2 kW, of which 23.5 kW goes to the back boiler and supplies the radiators, while about 5 kW is radiated directly into the room where the fireplace is installed, it heats an area of up to 188 m². The combustion chamber (380 x 535 x 465 mm) allows generous loading and long burning, and the thermal-shock-resistant ceramic glass provides a clear view of the flame. With energy class A, an efficiency of 78.6% and a 2-year warranty, the fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity P W28 TV Back Boiler Fireplace

• Modern design – a clean look that fits into contemporary interiors.
• Total output 28.2 kW – powerful heating for the whole home.
• Back boiler output 23.5 kW – supplies the radiators in the house.
• Additional radiant output of about 5 kW – the room with the fireplace is heated directly.
• Heated area up to 188 m² – suitable for large houses and villas.
• Combustion chamber 380 x 535 x 465 mm – for generous loading and long burning.
• Thermal-shock-resistant ceramic glass and cast iron grate – a clear view of the flame and even burning.
• Combustion control damper and manual flue damper – for control over the flame and the chimney draught.
• Sturdy steel body – made of 2 mm thick steel, with a 3–4 mm top plate and a metal door handle.

Efficiency and Energy Class

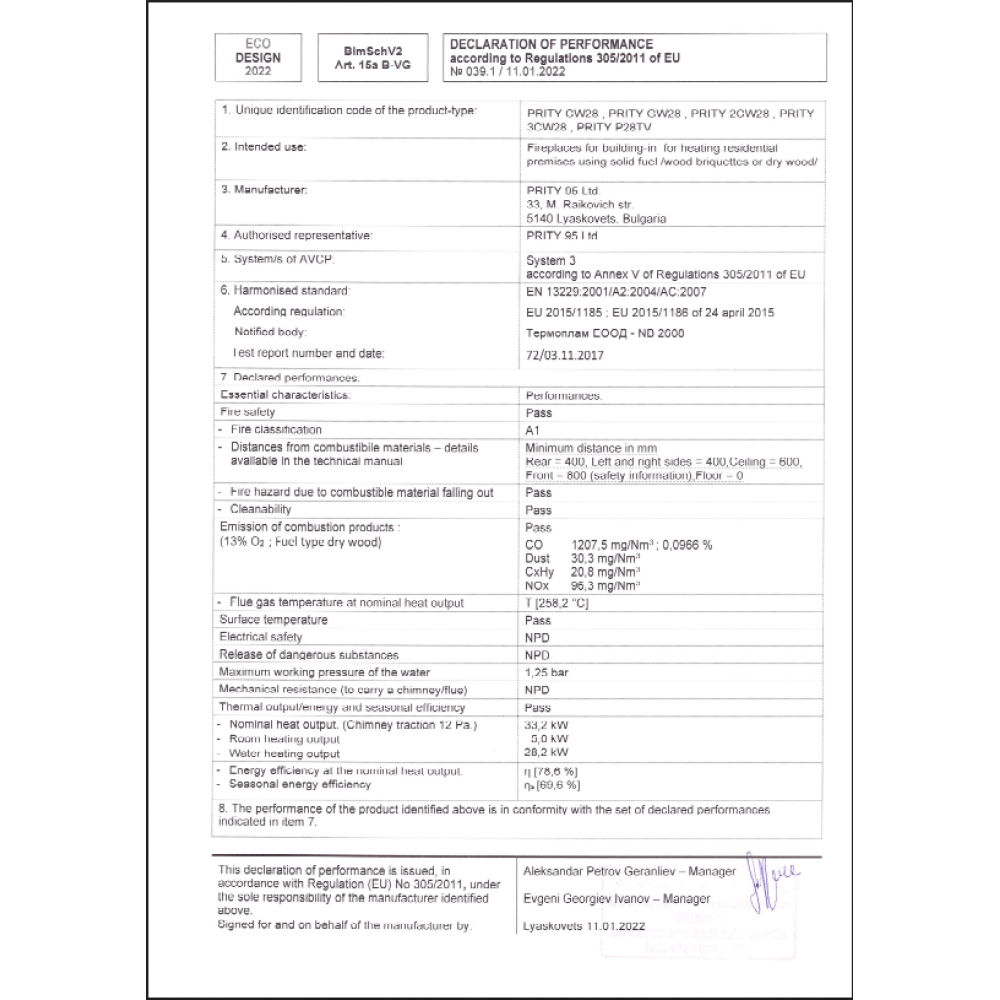

The Prity P W28 TV fireplace meets the European Ecodesign requirements, which guarantees low harmful emissions, high efficiency and environmentally friendly burning of wood. With energy class A, 78.6% efficiency, compliance with the Ecodesign standard, CE certification and a 2-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm with a top flue outlet.

Important for Installation and Use

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a safety valve set at 1.5 bar is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is advisable to power the circulation pump through a UPS so that it keeps working during a power cut.
• If there are copper components in the system, protect it from electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. The flue pipes must have the same diameter as the fireplace outlet. Connection to the system is via a G 1" inlet and outlet.
• The fireplace is heavy (155 kg, without water) – check the load-bearing capacity of the floor.

Technical Specifications
