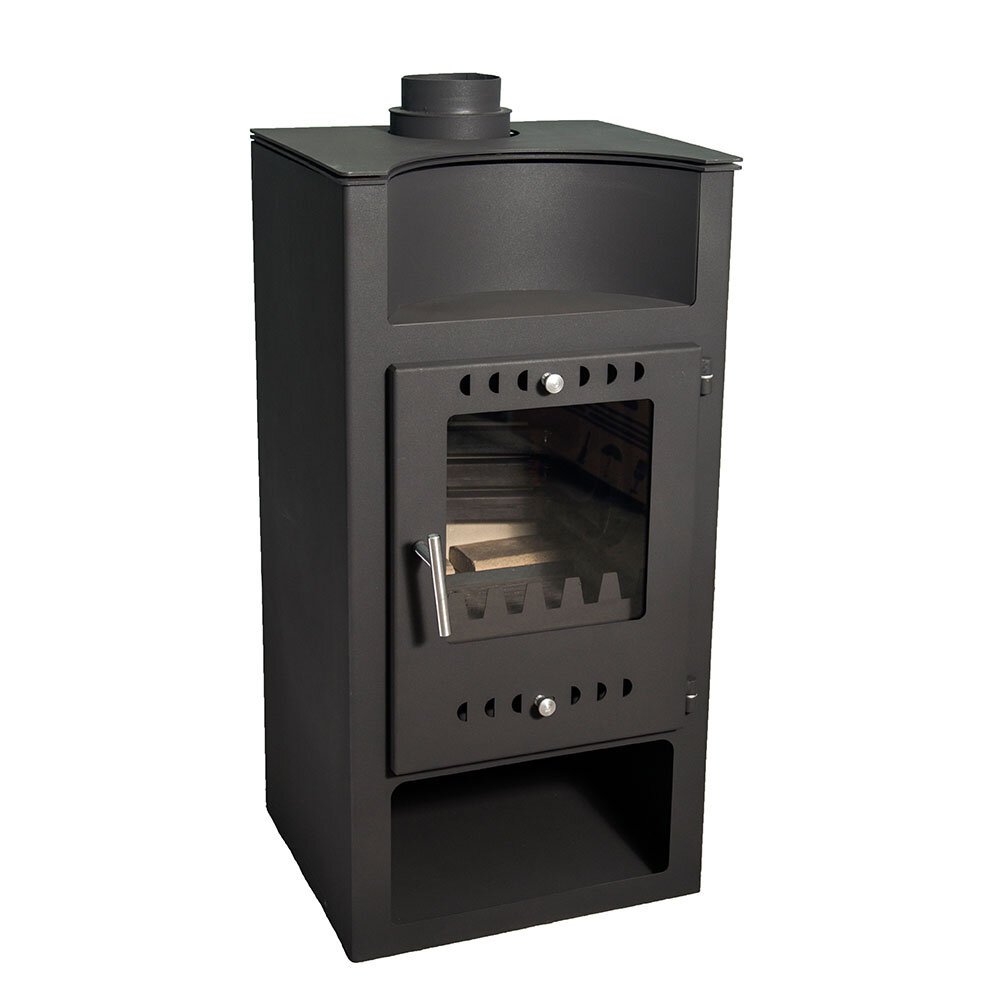

Multi Fuel Boiler Stove Zvezda Via VR 9, 15kW
Wood burning boiler stove with safety grate.
- Stock: In Stock
- Brand: Zvezda
- SKU: 08.435.283
Available Options
Free return
60 daysSee details
We accept payments
See details
Color : graphite black

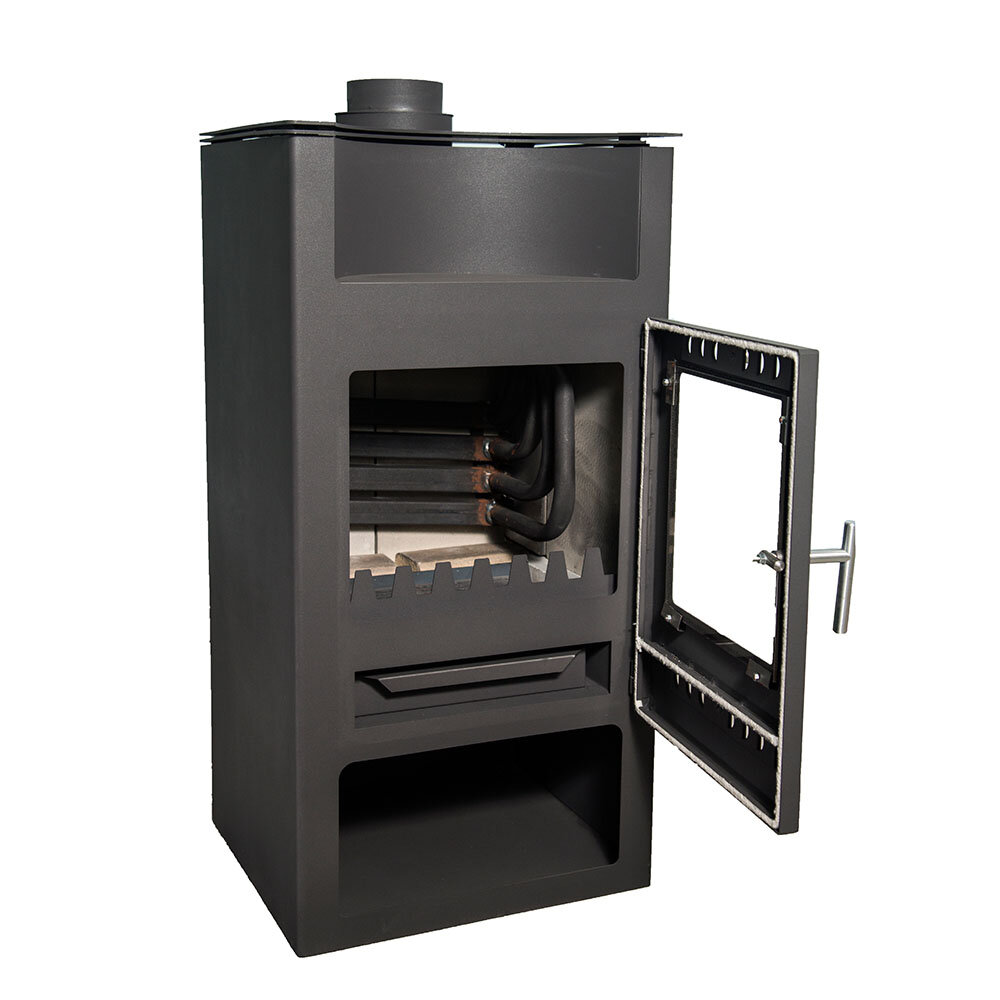

- Built-in hot water boiler for a central heating system.
- The combustion chamber is equipped with heat resistant ceramic glass.
- Cast iron grate.
- Front damper for controlling the air supply
- Smoke damper for adjusting the flame intensity
- Secondary air flap that increases the combustion temperature, efficiency and prevents fumigation of the glass.
- Wooden door handles.
- Compartment to store and dry moist wood.
WARNING!
- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.
Achieving the desired heat output depends on:
- the selected fuel with the necessary caloricity and humidity
- its subsequent kindling and refueling
- the regulation of the primary and the secondary air
- the regulation of the draught
- the organizing of effective air heat exchange, etc.
Recommendations
- We recommend the installation to be done in an open type system. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.
- In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.
Characteristics | |
Weight (kg) | 95.0000 |
Country of Manufacture | Bulgaria |
Dimension Depth (mm) | 490 |
Dimension Width (mm) | 530 |
Dimension Height (mm) | 990 |
Operating pressure (bar) | 1 |
Certification | CE |
Approximate heating surface (m²) | 80 |
Flue (mm) | 130 |
Exhaust Location | Top side |
Nominal heat output (kW) | 15 |
Efficiency (%) | 60-80 |
Approximate heating capacity (m³) | 210 |
Nominal water heating output (kW) | 9 |
Construction material | Steel |
Space heating output (kW) | 6 |
Overheating protected | No |
Ash and soot container | Yes |
Heating type | Hydro - Radiator |
Characteristics | Niche |
Lining | None |
Placement | Center |
Recommended system type | Open |
Flue damper | Yes |
