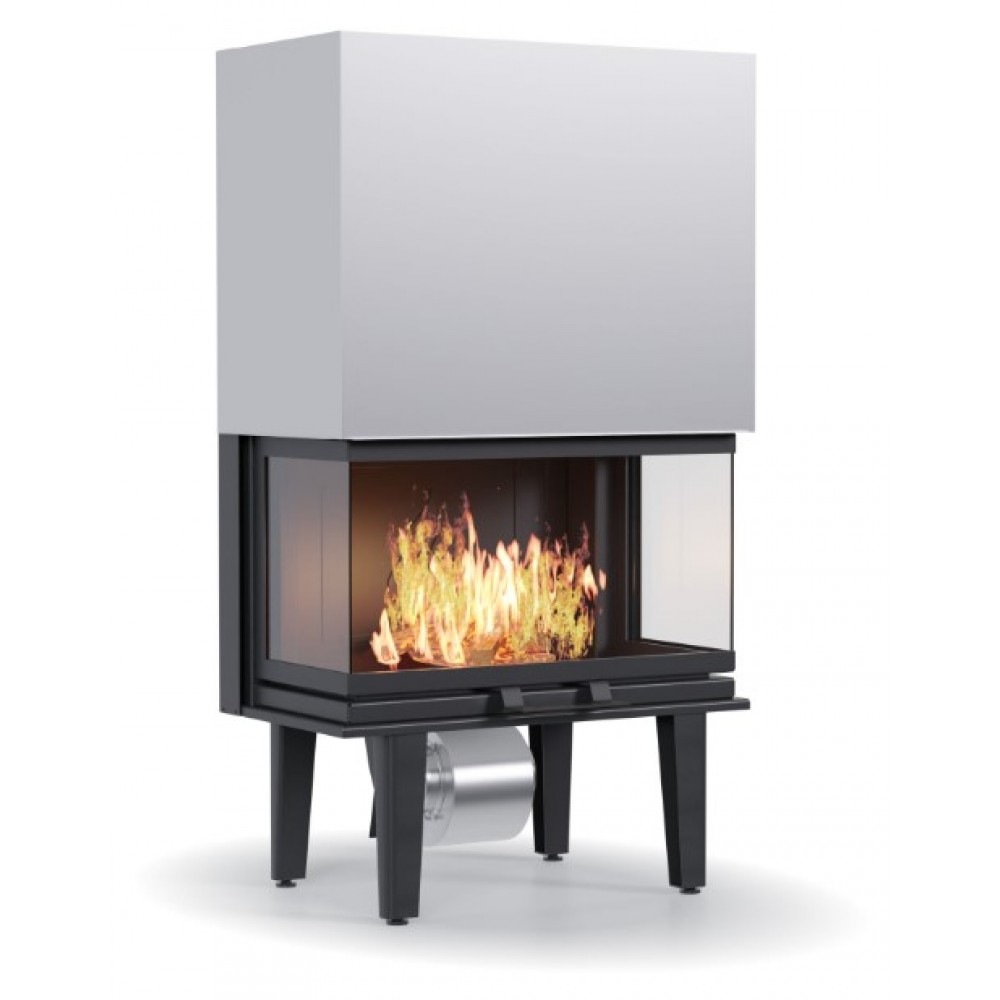

ATS AIR PANORAMA 800 is a high-efficiency built-in fireplace with a water jacket, combining a modern panoramic design and excellent heating performance.
With its wide three-sided glazing, it provides an impressive view of the fire and creates a cozy atmosphere in any room.
The model features sliding side doors that make loading and cleaning easier, as well as adjustable airflow for optimal combustion control.
The interior of the combustion chamber is lined with cast iron plates , which guarantee durability, resistance to high temperatures and better heat accumulation.
The glazing is made of 4 mm ceramic glass , resistant to high temperatures, ensuring safety and excellent visibility of the flames.
With a power of 16.04 kW and an efficiency of 75.83% , the fireplace provides reliable and economical heating.
Main advantages:
-
Two outlets for air ducts with a diameter of 120 mm
-
Panoramic three-sided glazing for maximum visibility of the fire
-
Opening and sliding side doors
-
Adjustable airflow for precise combustion control
-
Cast iron inner lining for long service life
Technical specifications:
-

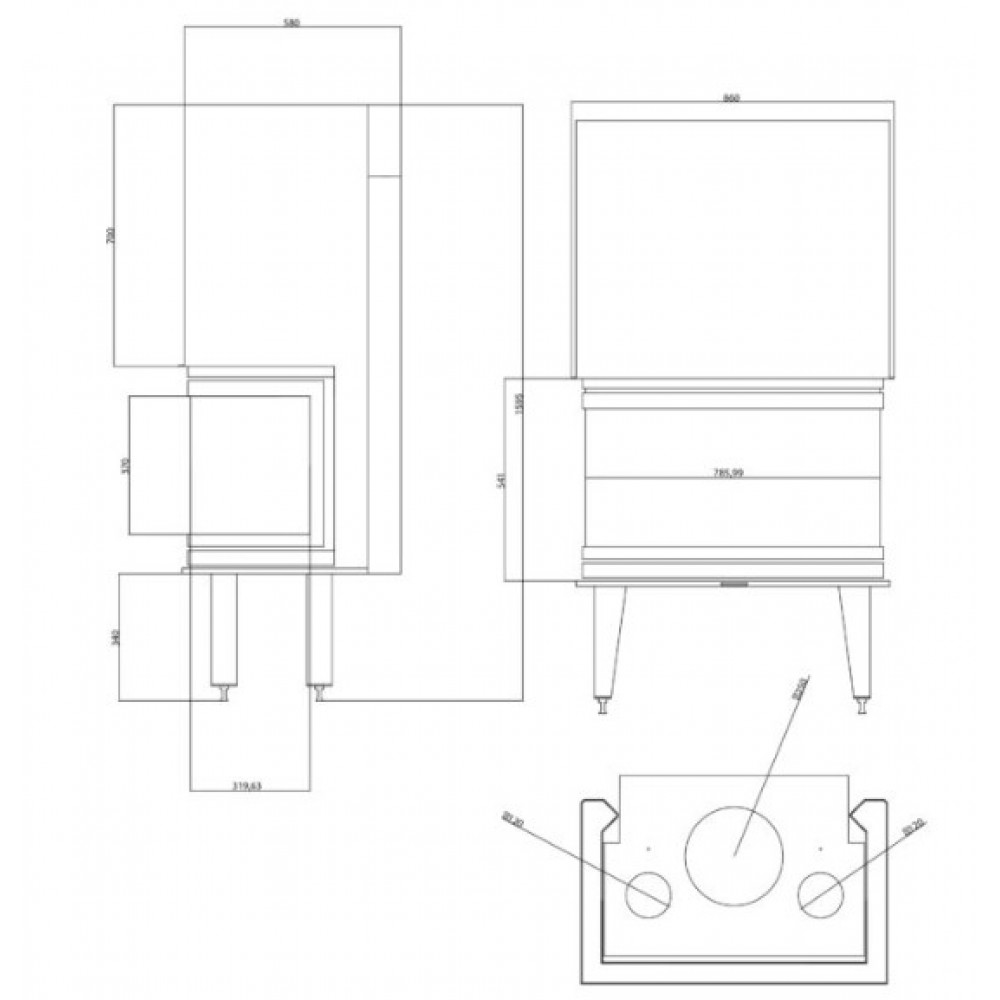

Dimensions (L x W x H): 86 x 56 x 196 cm
-
Chimney diameter: 250 mm
-
Nominal heat output: 16.04 kW
-
Efficiency: 75.83 %
-
Weight: 305 kg
| Characteristics | |
| Depth, mm | 560 |
| Height (mm) | 1960 |
| Width (mm) | 860 |
| Weight (kg) | 305.000 |
| Country of Manufacture | Greece |
| Warranty | 2 Years |
| Certification | CE, ECO DESIGN |
| Energy efficiency class | A |
| Flue (mm) | 250 |
| Nominal heat output (kW) | 16.04 |
| Efficiency (%) | 75.83 |
| Space heating output (kW) | 16.04 |
| Material | Steel |
| Heating type | Air ducts |
| Placement | Built-in |
| Flue damper | No |
| Type | File Information |
| Manual_EN.pdf File size 4.65MB |
