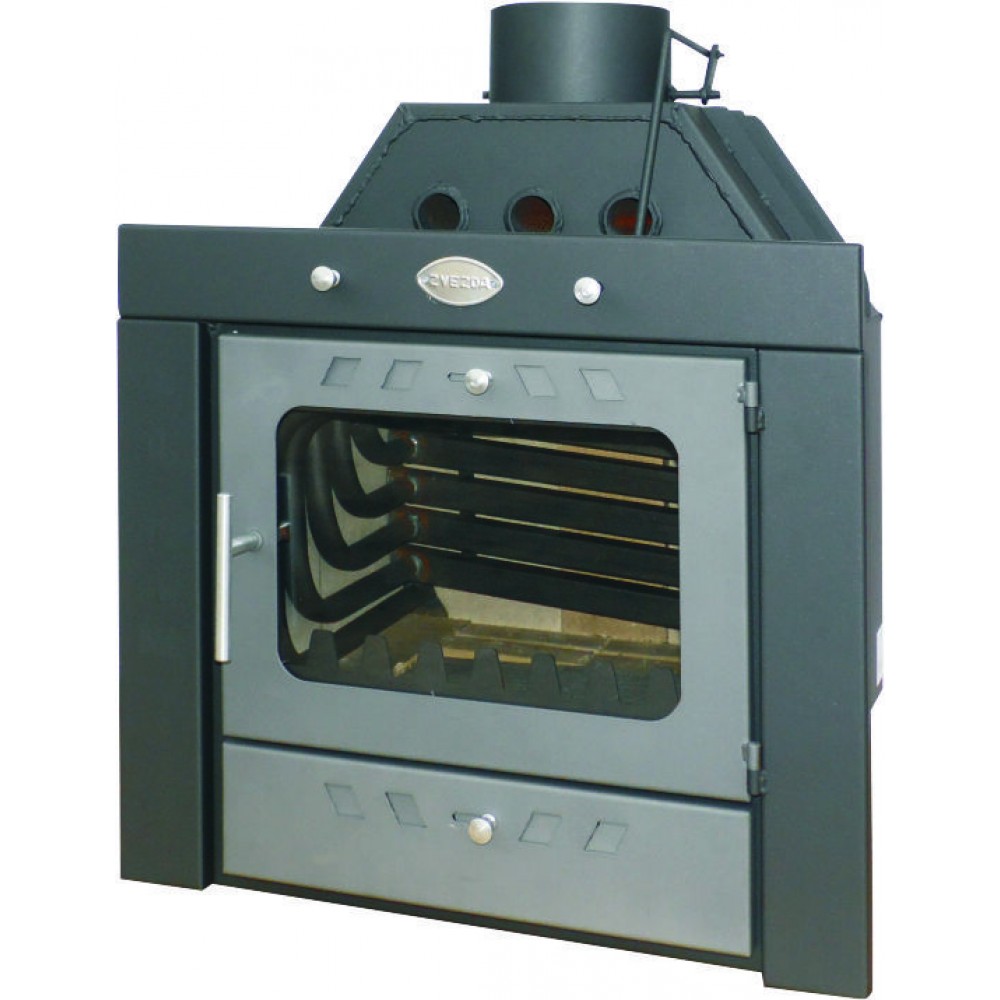

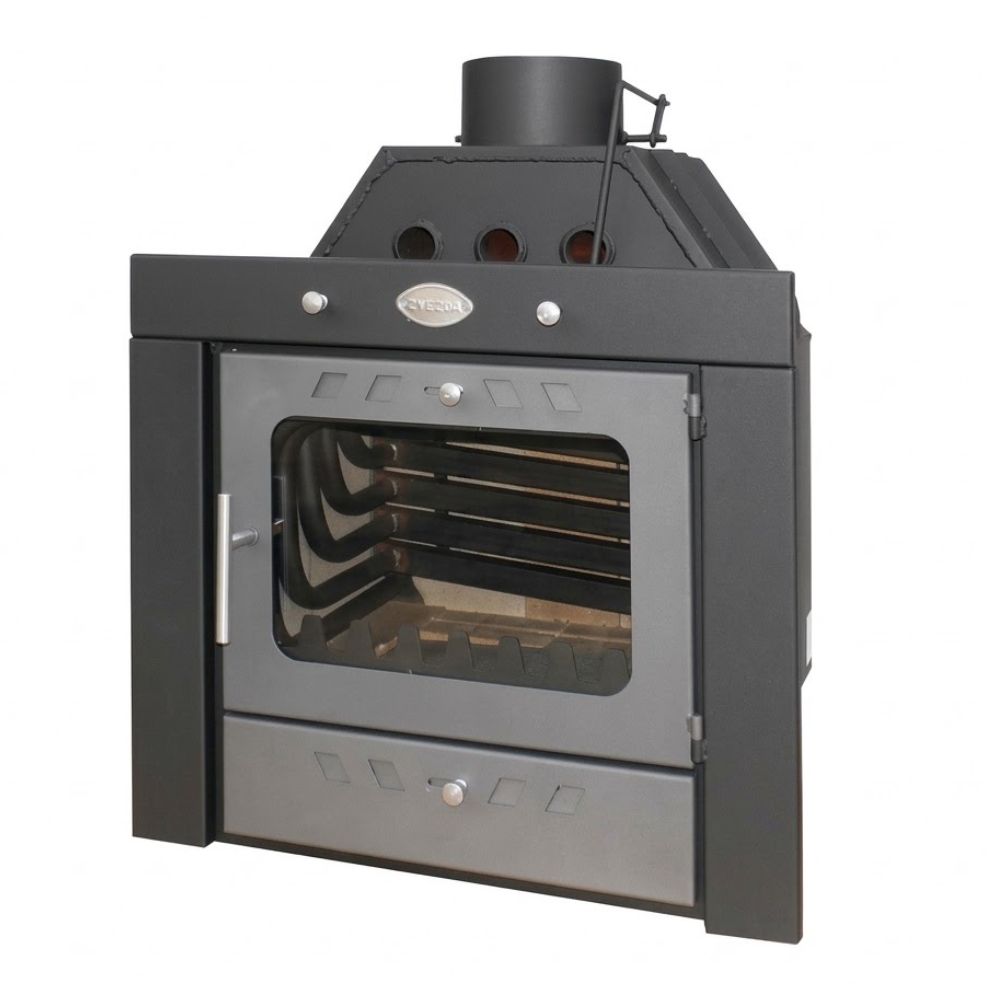

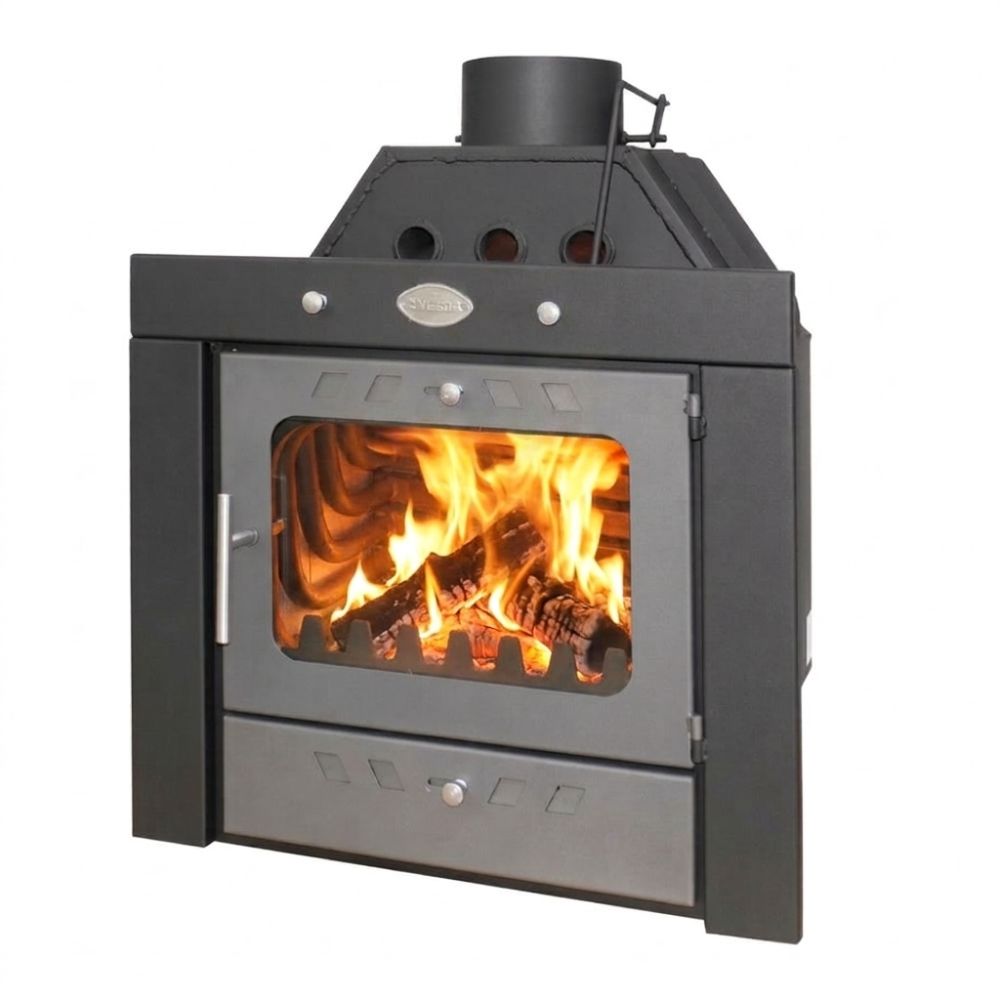

Wood Burning Fireplace with back boiler Zvezda Kamera B10 VR 16, 16.4 kW

Wood Burning Fireplace with back boiler Zvezda Kamera B10 VR 16, 16.4 kW – powerful heating for the whole home

The wood burning fireplace with back boiler Zvezda Kamera B10 VR 16 in a combination of black and grey graphite is a powerful heating solution that warms the room and supplies your central heating system. With a nominal output of 16.4 kW, an approximate heated area of up to 130 m² and a heated volume of up to 350 m³, it is suitable for larger homes with a radiator installation. Made of high-quality cold-rolled steel, it combines durability, high performance and an elegant built-in design.

Advantages of the Zvezda Kamera B10 VR 16 built-in fireplace

• Back boiler for the central heating system – allows connection to a radiator installation for heating the whole home.

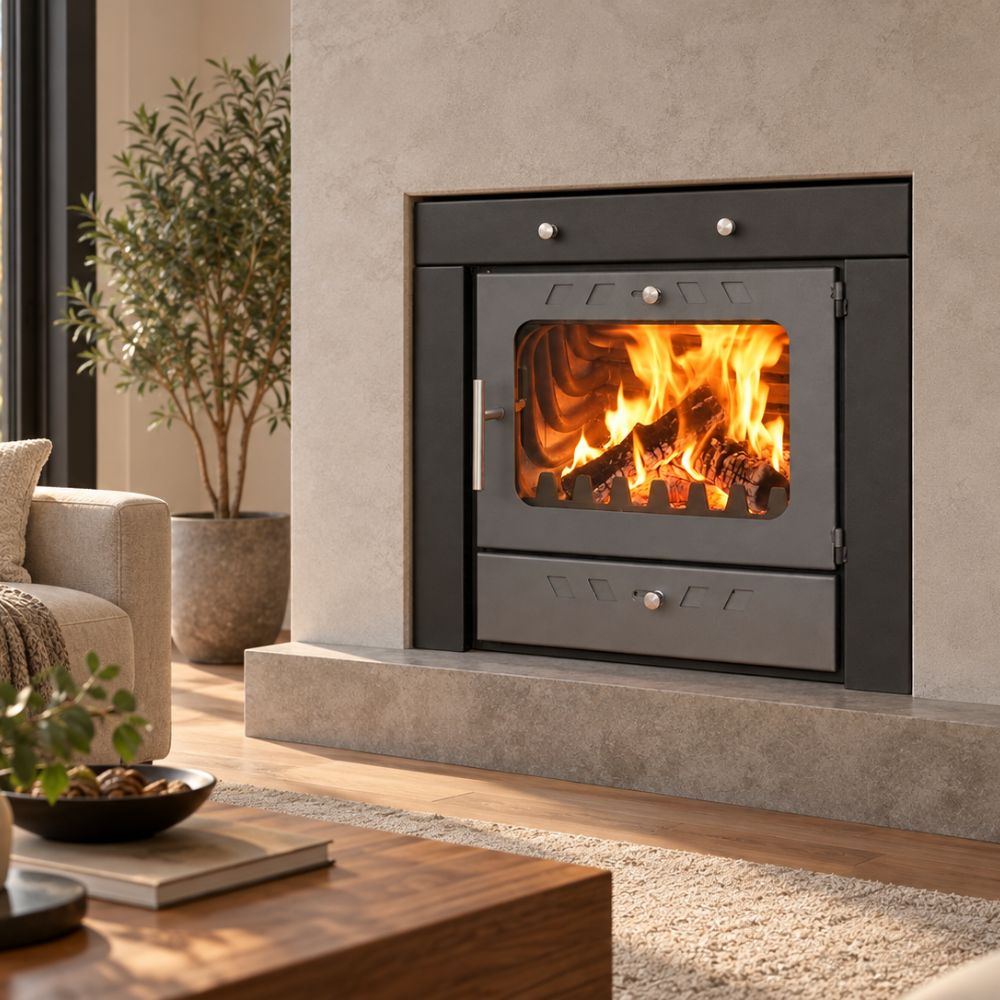

• Built-in design – made of cold-rolled steel for maximum strength and durability.
• Thermal shock resistant glass ceramic – the combustion chamber is equipped with durable glass ceramic, which provides an excellent view of the flame.
• Cast iron grate – resistant to high temperatures and ensuring even burning.
• Combustion control valve – located at the front, it allows precise control over the intensity of the flame.
• Manual flue control valve – for precise regulation of the chimney draught.
• Removable ash pan – for convenient and easy cleaning.
• Wooden door handle – comfortable and warm to the touch during operation.

Output distribution

The total nominal output of 16.4 kW is distributed between 8 kW heat transfer to the back boiler and 8.4 kW radiated heat into the room, which provides an excellent balance between heating the radiators and direct comfort in the room. With a working pressure of 1 bar and water inlets/outlets 1", the stove integrates easily into a standard heating system.

Efficiency and energy class

With energy class A, an efficiency of 70% and certificate CE, the Zvezda Kamera B10 VR 16 fireplace guarantees economical wood consumption and eco-friendly burning. The flue diameter is 200 mm. It is recommended that the flue pipes have the same diameter as the stove's chimney outlet for optimal draught.

Technical parameters

Attention!

 - Do not use without radiators and/or convectors installed. Burning wood in the stove with an empty back boiler will cause it to crack.

 - Reaching the desired output depends on:

• The chosen fuel with the required calorific value and moisture content
• The subsequent lighting and fuel loading
• The regulation of the primary and secondary air
• The regulation of the chimney draught
• The effective air exchange, etc.

Recommendations

- We recommend that the central heating system be of the open type. All parts of the system must be protected from freezing. For systems with forced circulation, it is advisable to fit a UPS to the circulation pump.

 - If there are copper elements in any part of the system, it must be protected from electrolysis by adding a magnesium anode or a similar type of protection.
