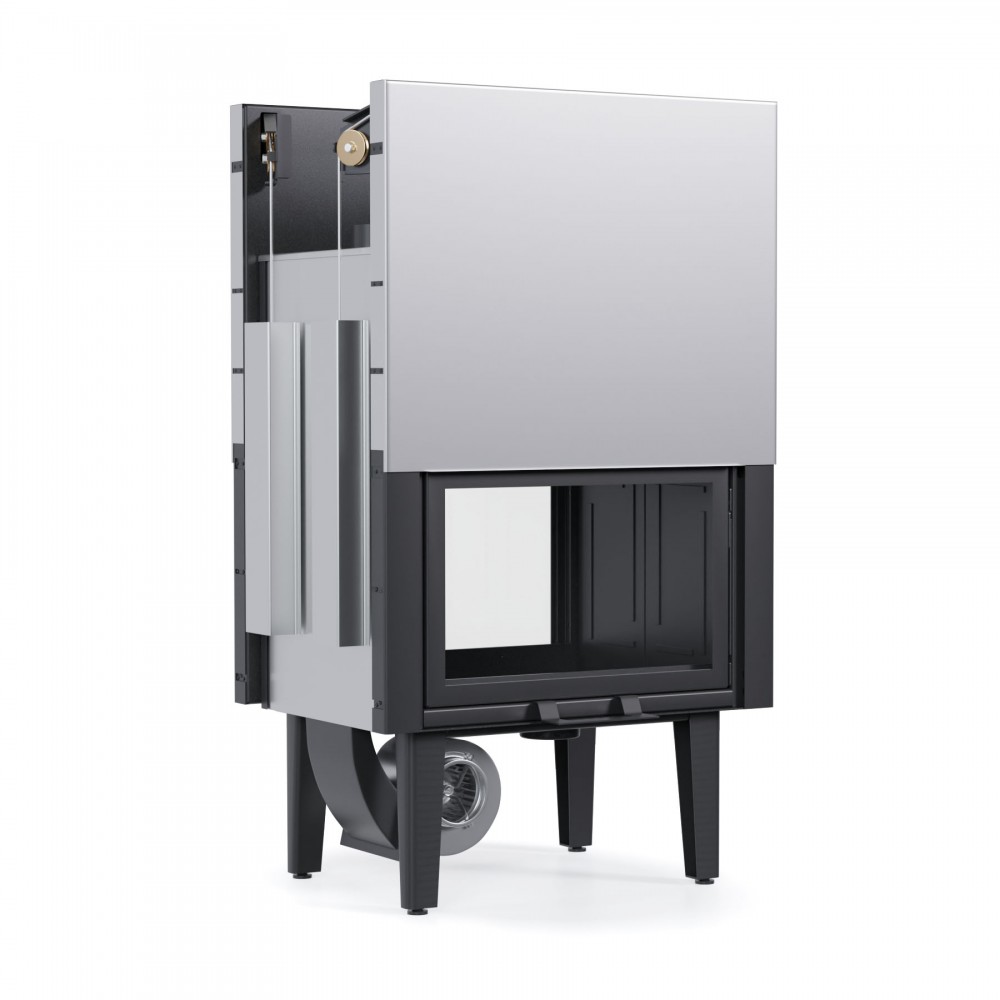

Wood Burning Fireplace Balkan Energy ATS TUNNEL AIR 800, with air ducts, 16.1kW
- Stock: In Stock
- Brand: 217
- SKU: 08.434.164
Save 2% with bank transfer.
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details
You may also need
ATS TUNNEL AIR 800 is a highly efficient built-in fireplace with an air duct system , designed to provide maximum heating power and an impressive visual effect .
Its tunnel design allows for two-sided fire observation , making it an ideal solution for dividing two rooms or for integration into modern interior concepts.
The model features a sliding door, with the option to choose between a configuration with two opening doors or with one fixed (stable) side . This provides flexibility in design and installation according to the specific needs of the space.
The glazing is made of 4 mm ceramic glass , resistant to high temperatures, which guarantees safety and excellent visibility of the flames.
ATS TUNNEL AIR 800 meets the requirements of the European Eco Design standard , which guarantees high energy efficiency and low emission levels.
The model has a CE certificate , certifying its compliance with all applicable European requirements for safety, quality and environmental friendliness.
Main advantages:
-
4 outlets for air ducts with a diameter of 120 mm
-
Design for a visual connection between two rooms
-
Panoramic double-sided glazing for maximum visibility of the fire
-
Adjustable airflow
-
Ceramic glass, resistant to 750°C
Technical specifications:
-

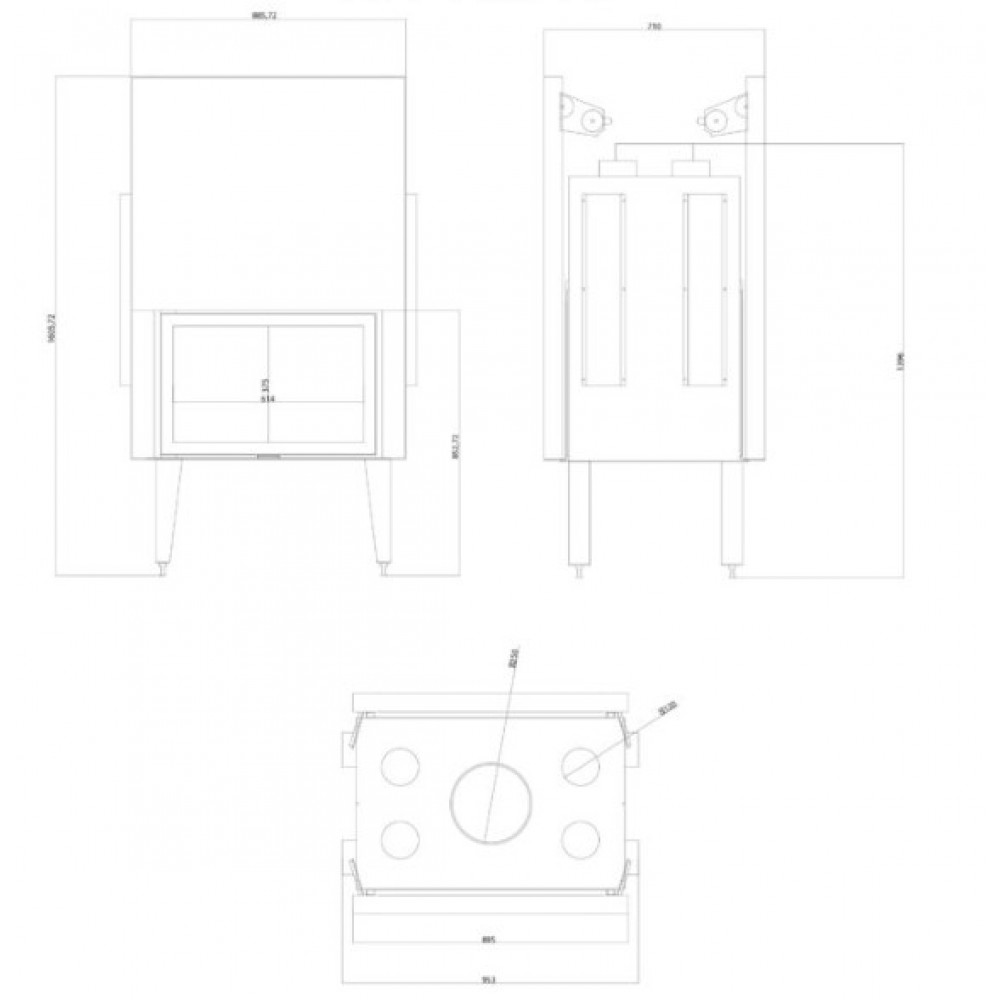

Dimensions (L x W x H): 95 x 75 x 157 cm
-
Chimney diameter: 250 mm
-
Nominal heat output: 16.1 kW
-
Efficiency: 74.59 %
-
Weight: 310 kg
| Characteristics | |
| Depth, mm | 750 |
| Height (mm) | 1570 |
| Width (mm) | 950 |
| Weight (kg) | 310.000 |
| Country of Manufacture | Greece |
| Warranty | 2 years |
| Certification | CE, ECO DESIGN |
| Energy efficiency class | A |
| Flue (mm) | 250 |
| Nominal heat output (kW) | 16.1 |
| Efficiency (%) | 74.59 |
| Space heating output (kW) | 16.1 |
| Material | Steel |
| Heating type | Ducted air |
| Placement | Insert |
| Flue damper | No |
| Type | File Information |
| ECO-DESIGN_ATS -TUNNEL-AIR-80 0.pdf File size 288.38KB | |
| Instructions_EN.pdf File size 2.25MB | |
| Declaration of performance_ATS-TUNN EL-AIR-800.pdf File size 272.92KB | |
| Energy efficiency label_ATS-TUNNEL -AIR-800.pdf File size 874.66KB |
