Wood Burning Fireplace Prity TCF, 19 kW

Wood Burning Fireplace Prity TCF, 19 kW – Three-Window Panorama and Ducted Heating for Several Rooms

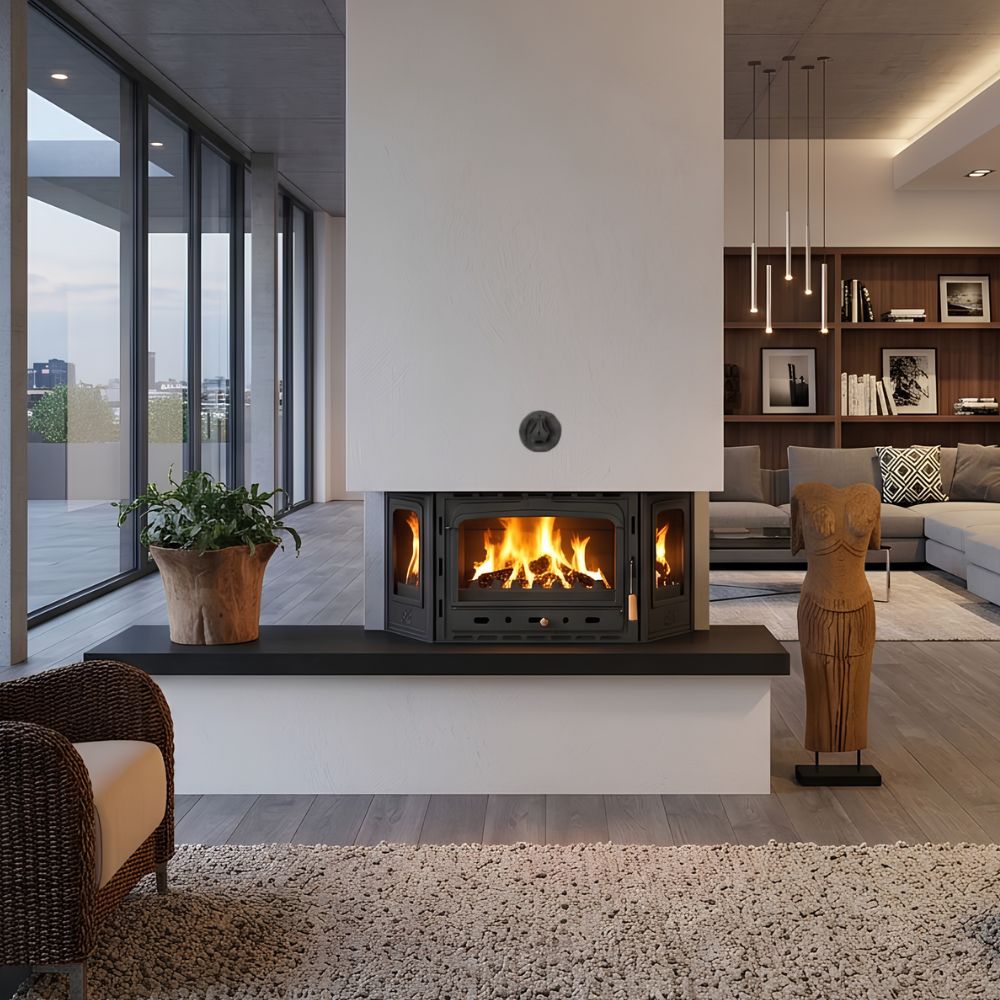

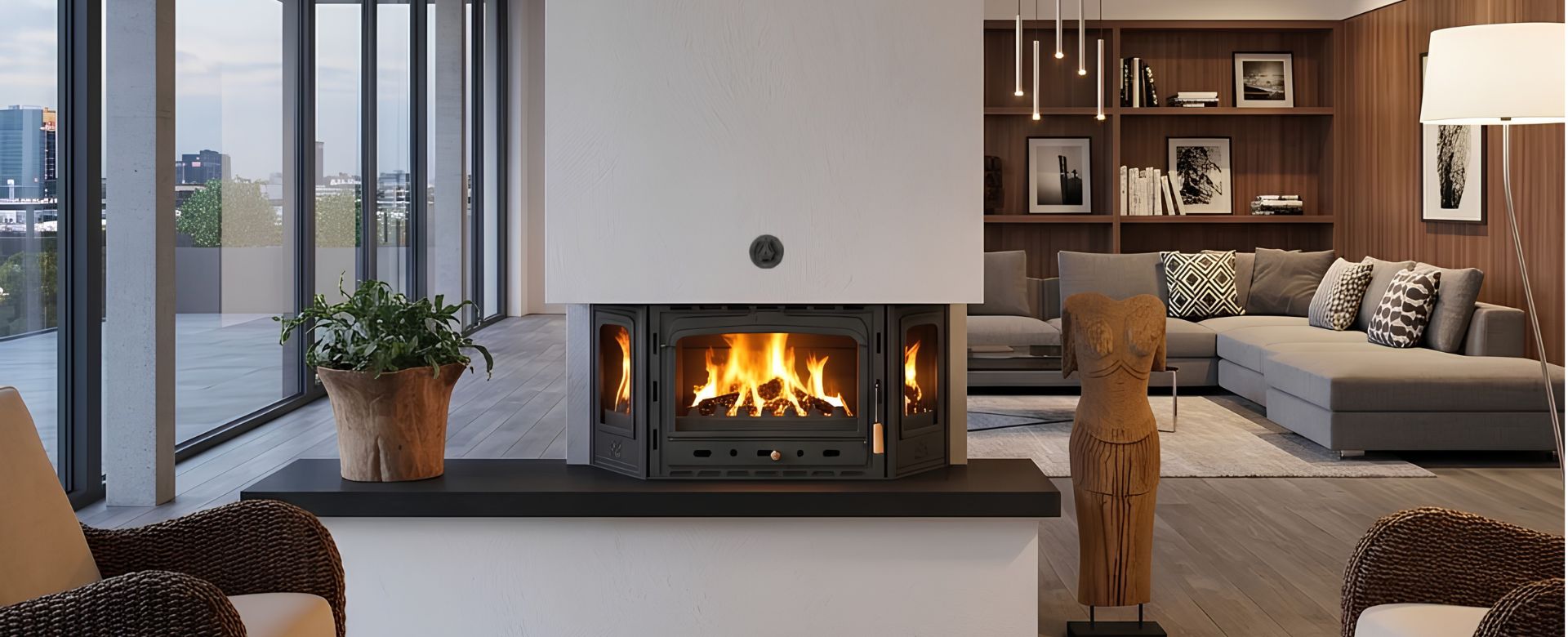

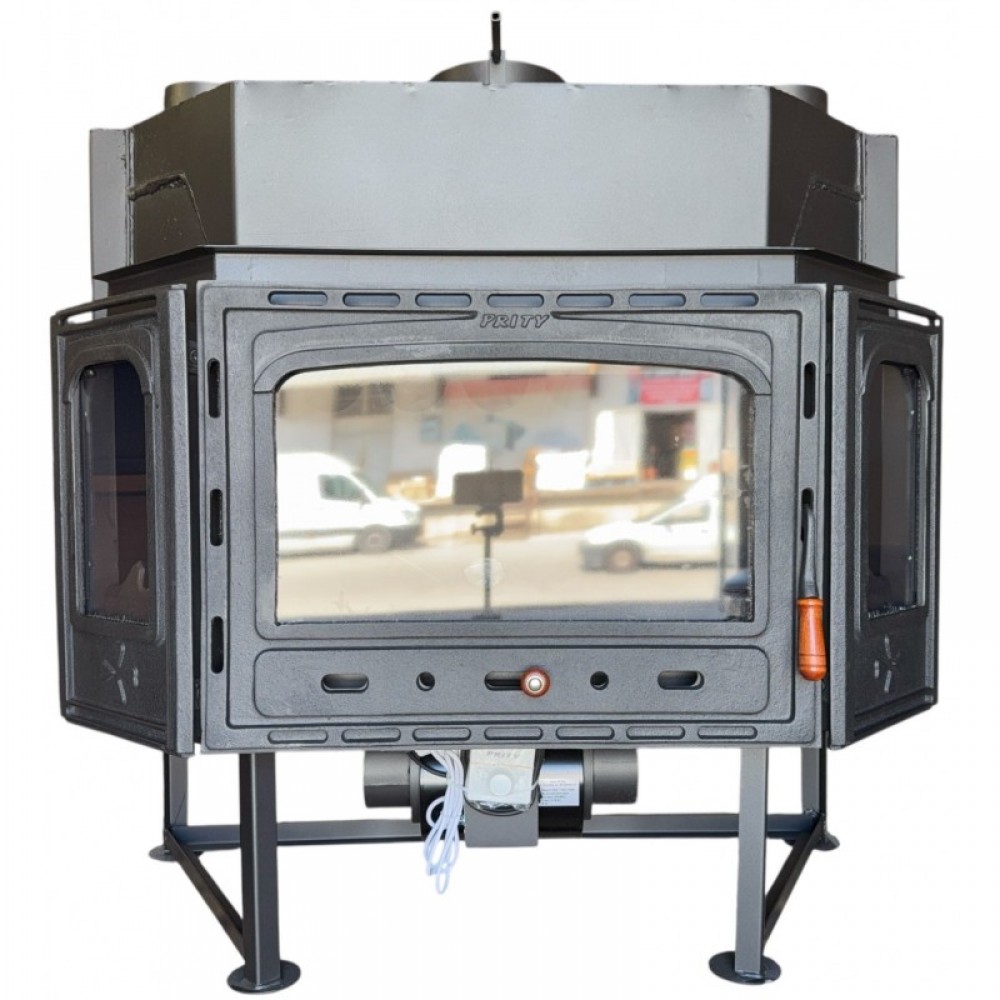

The Wood Burning Fireplace Prity TCF, finished in elegant black graphite, combines an impressive view of the fire with powerful whole-home heating. The unit has three windows – at the front and on both sides – and an exceptionally wide combustion chamber (910 mm), which creates a long, panoramic flame. The built-in blower fan (included) distributes the heated air through air ducts to adjacent rooms. With a rated heat output of 19 kW, the fireplace heats a volume of up to approx. 480–530 m³ and takes logs up to 58 cm. Thanks to energy class A+ and an efficiency of 81.8%, it delivers the maximum amount of heat from every load. The cast iron door and frames and the firebricks ensure durability and complete burning of the wood. It is made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Wood Burning Fireplace Prity TCF

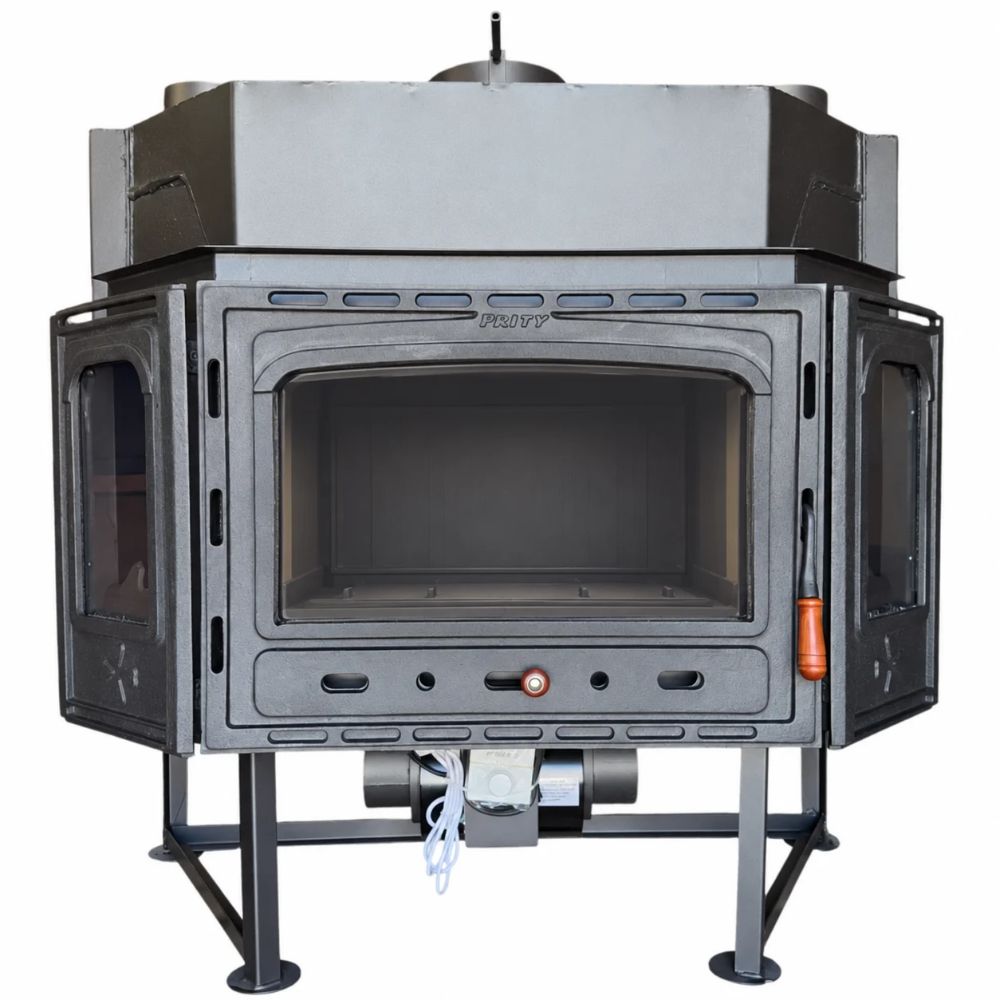

• Three windows – the fire is visible from the front and both sides, from almost anywhere in the room.

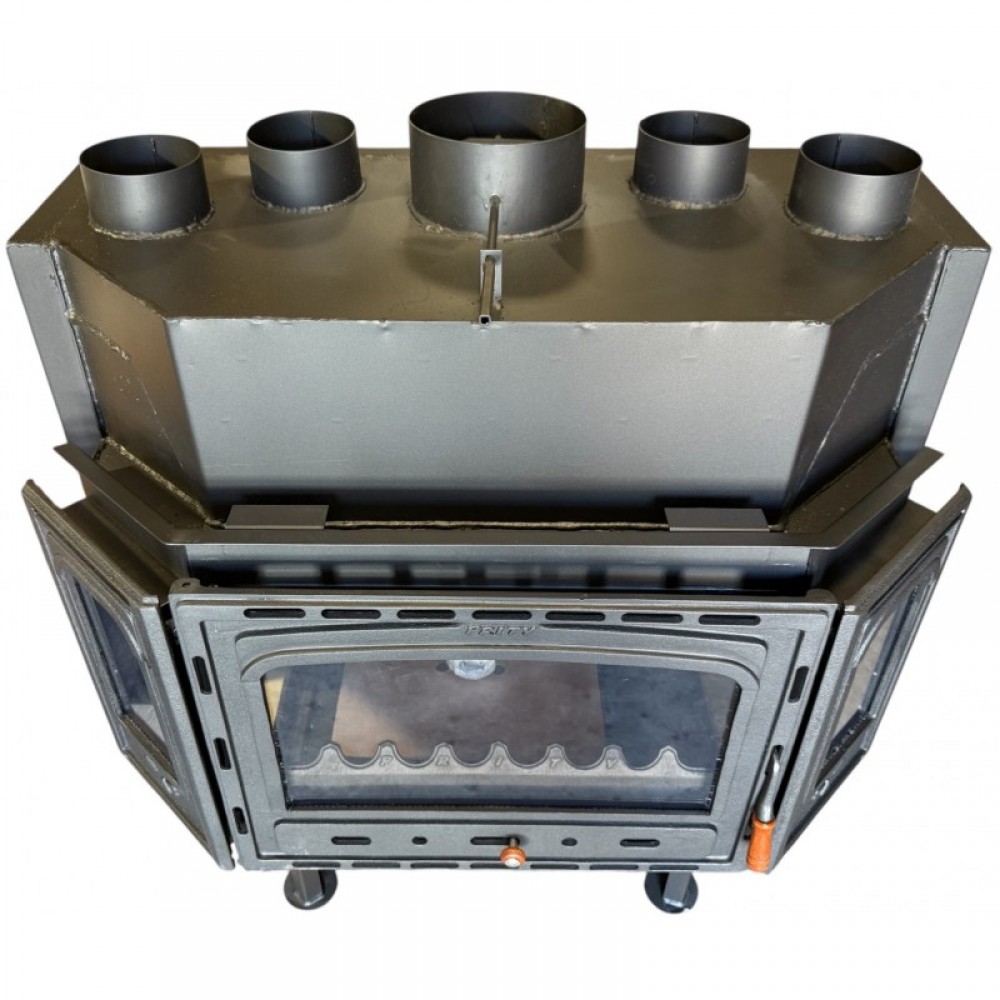

• Ducted heating – warm air is distributed to adjacent rooms.
• Blower fan included – active and even heat distribution.
• High heat output – 19 kW for a heated volume of up to approx. 530 m³.
• Energy class A+ and 81.8% efficiency – the highest efficiency among Prity's built-in fireplaces.
• Exceptionally wide combustion chamber – 255 x 910 x 450 mm, for a long, panoramic flame.
• Logs up to 58 cm – less splitting and less frequent refuelling.
• Cast iron door and frames – sturdy, resistant to high temperatures and with a classic look.

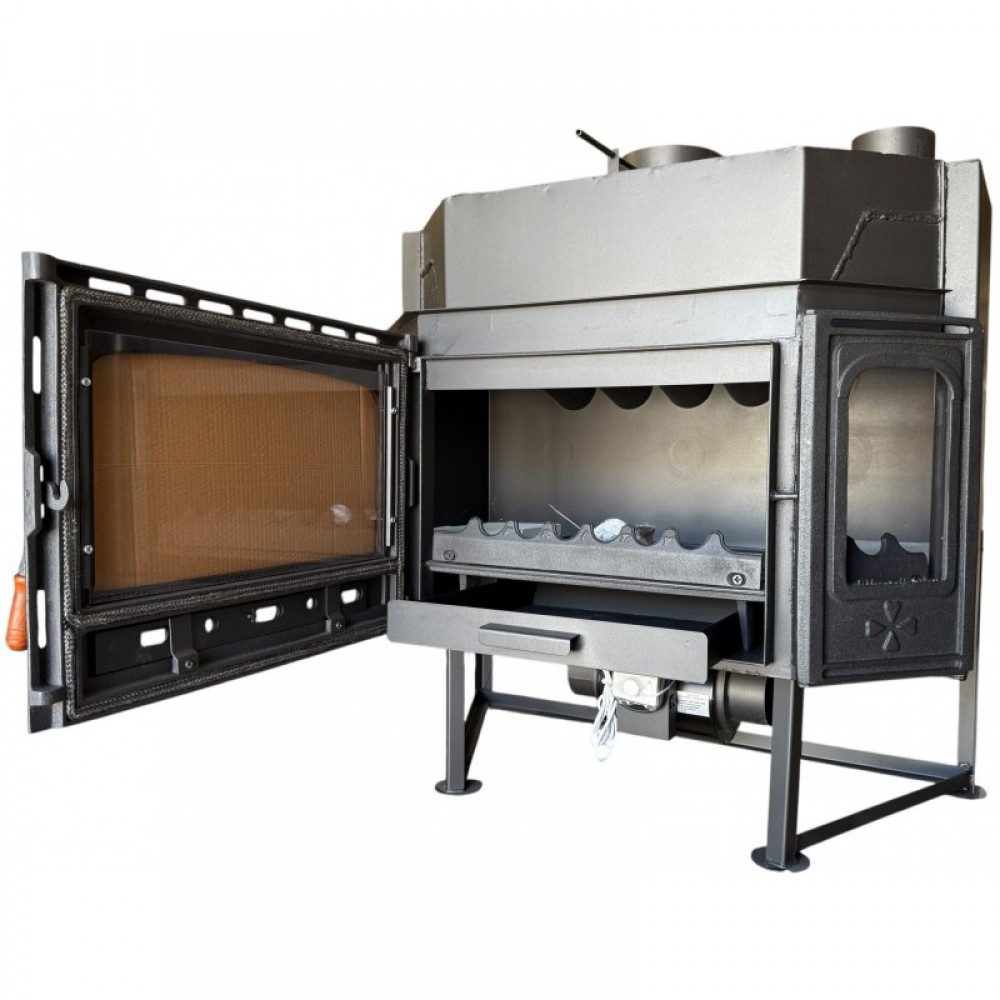

• Firebricks in the combustion chamber – store heat and raise the combustion temperature for more complete burning of the wood.
• Combustion control damper and manual flue damper – for control over the flame and the chimney draught.

Efficiency and Energy Class

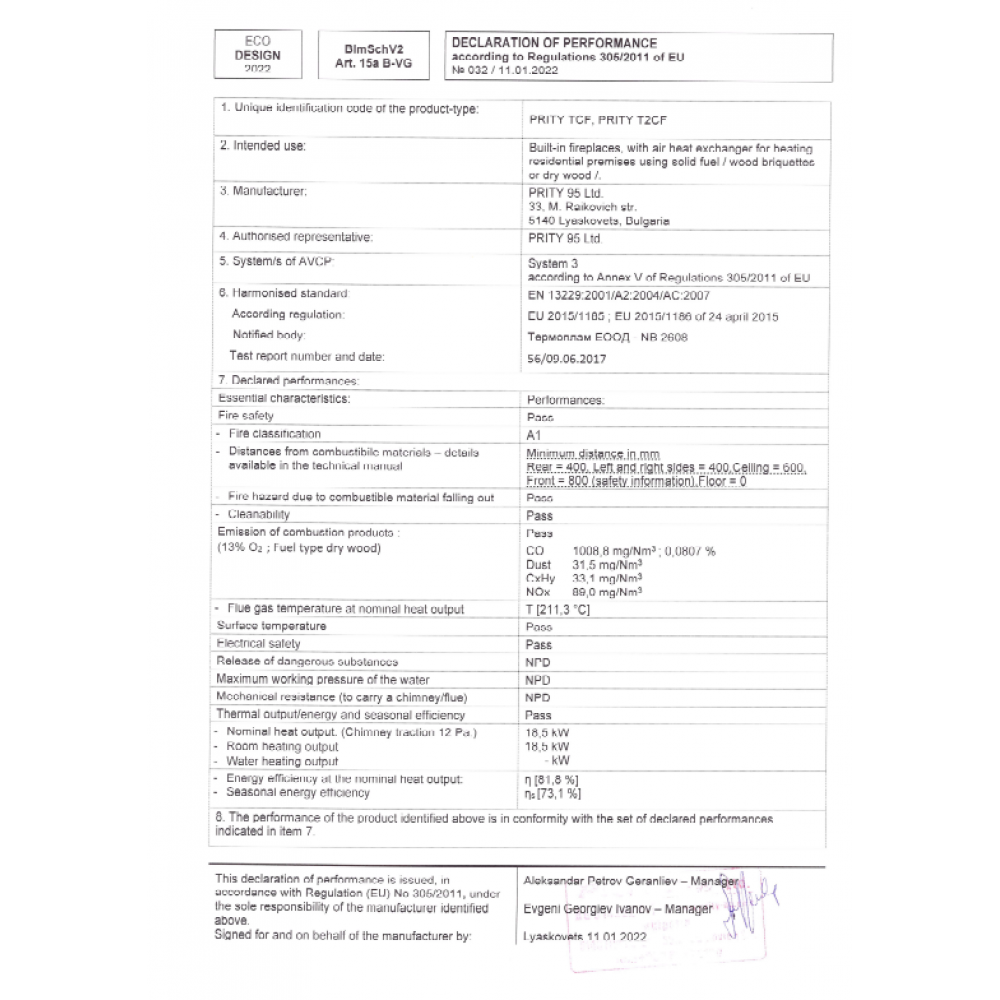

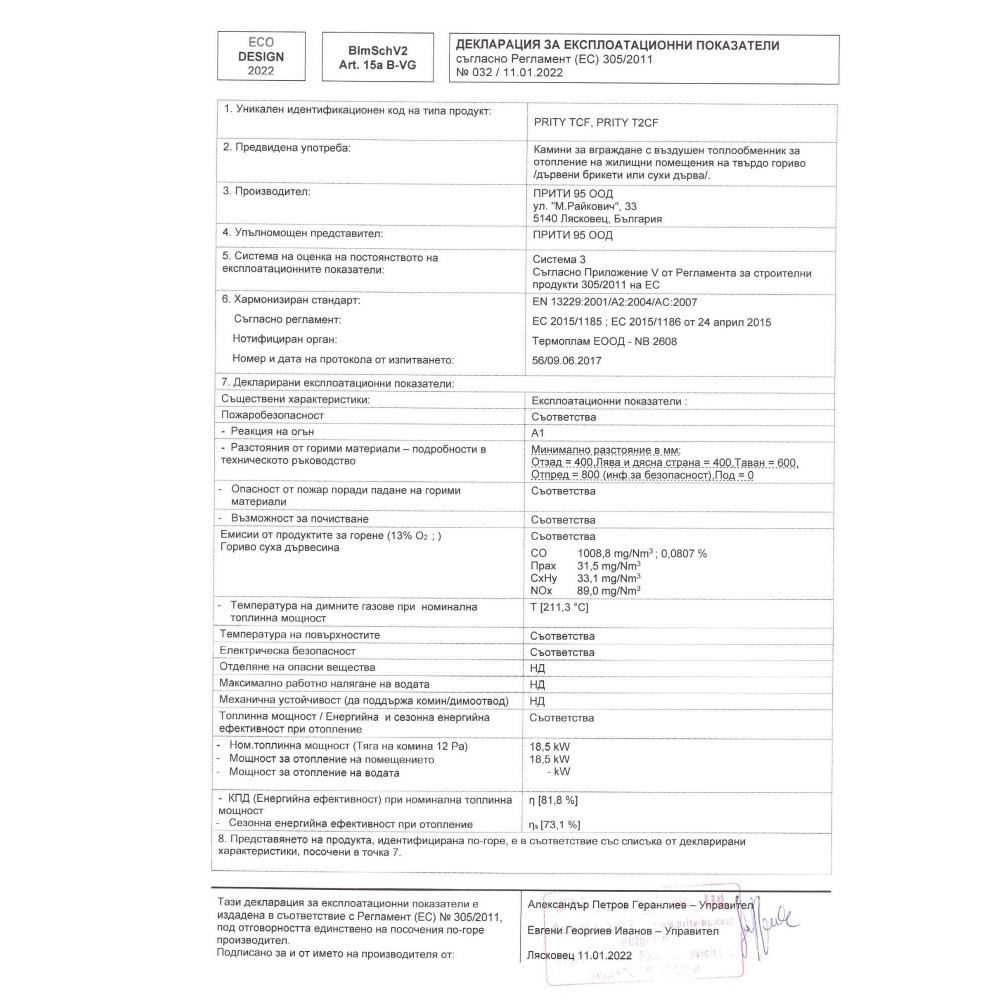

The Wood Burning Fireplace Prity TCF complies with the European eco-design requirements known as Ecodesign, which ensures low harmful emissions, high efficiency and environmentally friendly combustion of the wood. With energy class A+, an efficiency of 81.8%, compliance with the Ecodesign standard, CE certification and a 2-year warranty, it provides economical and environmentally friendly heating. The chimney diameter is 200 mm, with top outlet, and the required draught is 12 Pa.

Important for Installation and Use

• The fireplace requires a chimney with a diameter of 200 mm. The flue pipes must have the same diameter as the fireplace outlet.
• The fan requires a power supply – plan a socket near the fireplace when designing the surround.
• The duct system is best designed and installed by a specialist, together with the building-in and cladding using non-combustible materials. Leave all three windows exposed.
• The fireplace is large and heavy (1080 x 1050 mm, 202 kg) – allow enough space in the recess and check the load-bearing capacity of the floor.
• The maximum log length is 58 cm. Use dry wood with a good calorific value.

Technical Specifications
