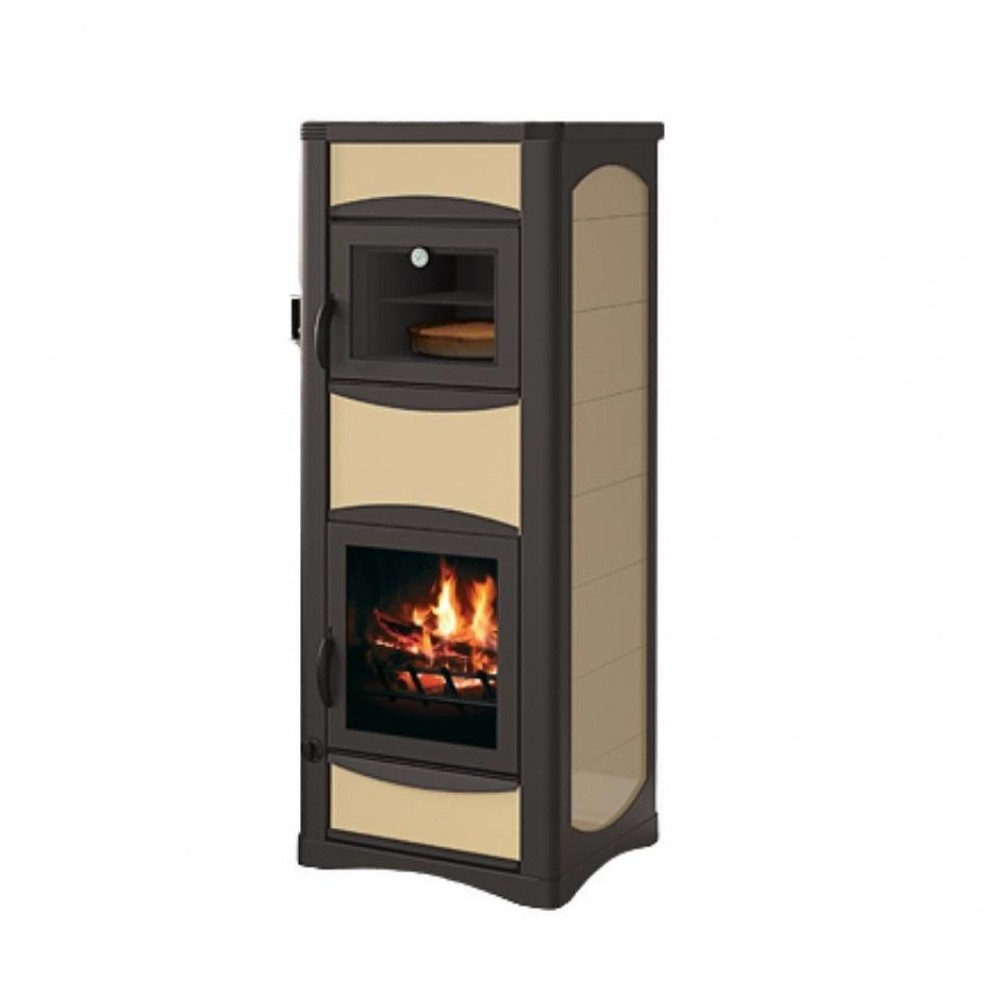

Multi Fuel Stove With Back Boiler and Oven Alfa Plam Paollo F, 20 kW
- Stock: Out of stock
- Brand: Alfa-Plam
- SKU: 08.435.055
Color: black / beige
- Built-in hot water boiler for a central heating system
- Equipped with a thermometer.
- The combustion chamber is equipped with heat resistant ceramic glass
- Front damper for controlling the air supply
- Metal door handles
WARNING!
- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.
Achieving the desired heat output depends on:
- the selected fuel with the necessary caloricity and humidity
- its subsequent kindling and refueling
- the regulation of the primary and the secondary air
- the regulation of the draught
- the organizing of effective air heat exchange, etc.
Recommendations
- We recommend the installation to be done in an open type system.When connected in closed circuit system it must be fully protected using safety valves for temperature and pressure up to 1.5bar. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.
- In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.
| Type | File Information |
 |
Manual_EN.pdf File size 1.31MB |
|
Energy efficiency label - Paollo_F.pdf File size 260.42KB |
