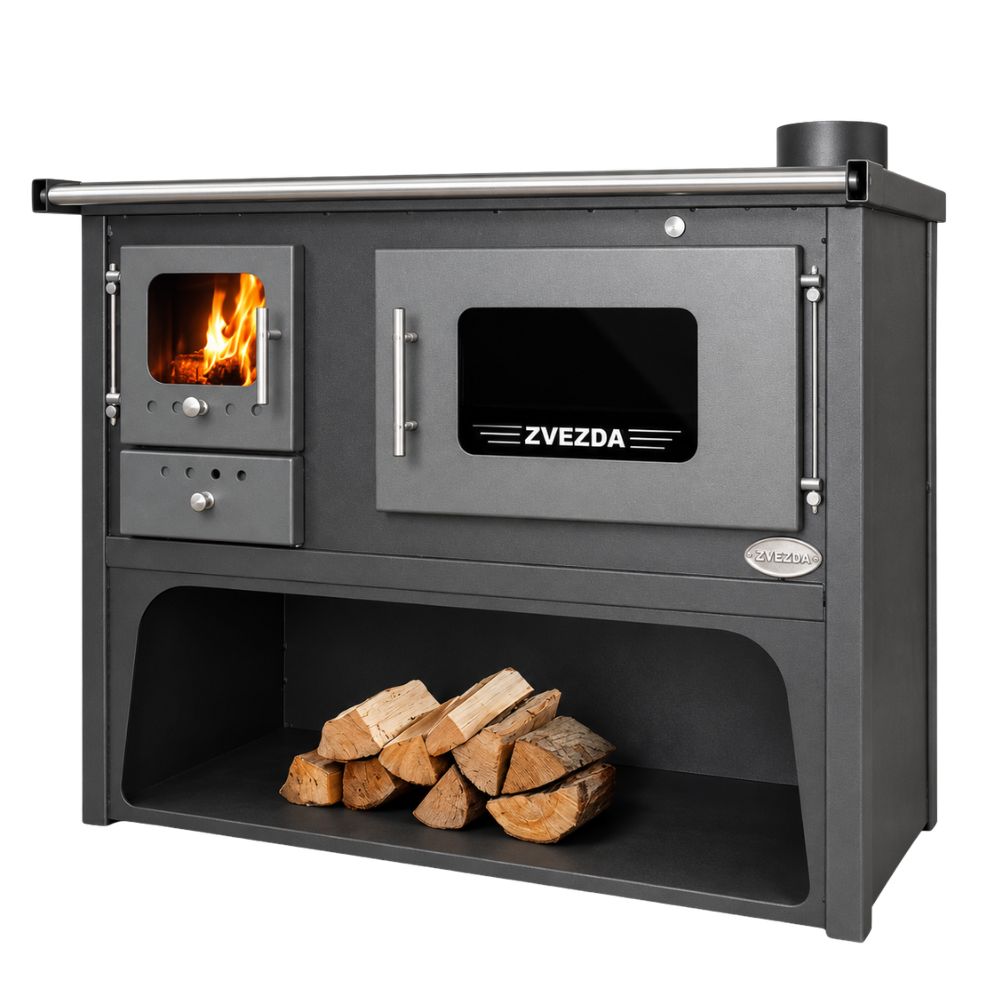

Wood cooker stove with back boiler Zvezda Classic Maxi Vr 10, 10.2kW

Wood cooker stove with back boiler Classic Maxi VR 10, 10.2 kW – cooking, heating and central system

The wood cooker stove with back boiler Classic Maxi VR 10 in the elegant colour graphite black is a multifunctional solution that combines cooking, baking, room heating and supplying the central heating system. With a reinforced steel top plate with a thickness of 6 mm, a spacious oven and a heat output of 10.2 kW, it heats an approximate area of up to 85 m² and a volume of up to 229 m³. Made of high-quality cold-rolled steel, it combines durability, high performance and a stylish look.

Advantages of the Classic Maxi VR 10 cooker stove with back boiler

• Back boiler for the central heating system – allows connection to a radiator installation for heating the whole home.
• Reinforced 6 mm thick steel top plate – a durable cooking surface with excellent heat transfer, suitable for direct cooking.
• High-temperature resistant paint – the body is made of cold-rolled steel for maximum strength and durability.
• Thermal shock resistant glass ceramic – the combustion chamber is equipped with glass ceramic withstanding temperatures of up to 850 °C, which provides an excellent view of the flame.
• Built-in oven with tempered glass – allows cooking and baking with a good view of the dish.
• Built-in thermometer – for convenient monitoring of the temperature while cooking.
• Cast iron grate – resistant to high temperatures and ensuring even burning.
• Combustion control valve – located at the front, it allows precise control over the intensity of burning.
• Secondary air valve – raises the combustion temperature and the efficiency of the appliance, while preventing the glass from blackening.
• Metal door handles for comfortable and safe use.
• Storage and drying space for wood – allows the wood to dry well before use for more efficient burning.

Output distribution

The total heat output of 10.2 kW is distributed between 7 kW heat transfer to the back boiler and 3.2 kW radiated heat into the room, which provides a balance between heating the radiators and direct comfort in the kitchen.

Oven

The built-in oven measuring 270 × 470 × 470 mm is among the most spacious in its class and is suitable for everyday cooking and baking of larger amounts of food. The loading door measures 160 × 210 mm.

Energy class and chimney

With energy class A, the Classic Maxi VR 10 cooker stove guarantees economical wood consumption and eco-friendly burning. The flue diameter is 130 mm, which allows easy connection to a standard chimney system.

Technical parameters

Attention!

 - Do not use without radiators and/or convectors installed. Burning wood in the stove with an empty back boiler will cause it to crack.

 - Reaching the desired output depends on:

• The chosen fuel with the required calorific value and moisture content
• The subsequent lighting and fuel loading
• The regulation of the primary and secondary air
• The regulation of the chimney draught
• The effective air exchange, etc.

 Recommendations

- We recommend that the central heating system be of the open type. All parts of the system must be protected from freezing. For systems with forced circulation, it is advisable to fit a UPS to the circulation pump.

 - If there are copper elements in any part of the system, it must be protected from electrolysis by adding a magnesium anode or a similar type of protection.
