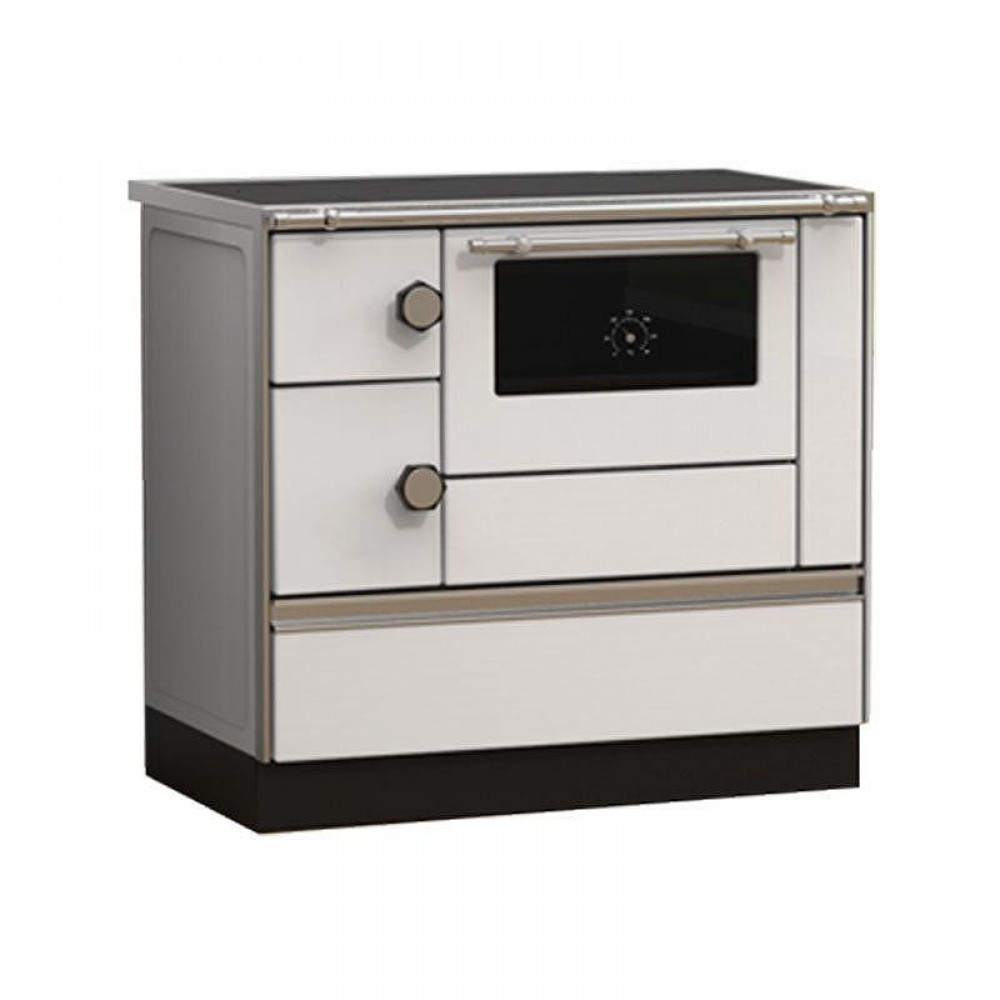

Wood cooker stove Alfa Plam Alfa 90 HET, 14.39kW
Wood burning cooker with boiler Alfa Plam Alfa 90 HET, part of the Wood cooking stove series. Comfort and coziness at an affordable price. Suitable for premises up to 140 m² (approximately)
- Stock: In Stock
- Brand: Alfa-Plam
- SKU: 08.428.102
Available Options
*Read more about spare parts guarantee here
Free return
60 daysSee details
We accept payments
See details
Color: white
Fuel type – wood, coal
- Built-in hot water boiler for a central heating system
- Cast iron grate
- Equipped with a manual damper for controlling the secondary air supply
- Special key for opening the stove in case the handles become too hot
- Equipped with removable steel hot plates and an oven
- The oven has a double-layered glass and built-in thermometer
- Equipped with a thermometer and manometer to monitor the water temperature in the boiler
- Equipped with two regulators - one for the stove and an automatic one for the water in the boiler
- Regulator for a secondary burning and combustion of flue gases, in cases where coal is used
- Combustion of the fuel can be done through the removable hot plates
- Two operation modes - summer and winter
- Fuel storage drawer in the lower part of the cooker
- Built-in emergency heat evacuator in case of overheating
14.3 kW
420 X 187 X 300 MM
120 MM
8 kW
5.5 l
210 -350 m3
84 - 140 m2
152/175 kg
A
yes
Warning! Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the stove without water in the boiler will cause it to crack.
Achieving the desired heat output depends on the selected fuel with the necessary caloricity and humidity; its subsequent kindling and refueling; the regulation of the primary and the secondary air as well as the draught; the organizing of effective air heat exchange etc.
Characteristics | |
Weight (kg) | 152.5000 |
Country of Manufacture | Serbia |
Dimension Depth (mm) | 600 |
Dimension Width (mm) | 900 |
Dimension Height (mm) | 850 |
Warranty | 2 Years |
Certification | CE |
Approximate heating surface (m²) | 140 |
Energy efficiency class | A |
Flue (mm) | 120 |
Exhaust Location | Backside |
Nominal heat output (kW) | 14.39 |
Maximum heat output (kW) | 14.39 |
Efficiency (%) | 78 |
Approximate heating capacity (m³) | 350 |
Nominal water heating output (kW) | 7.98 |
Construction material | Steel |
Boiler capacity (L) | 5.5 |
Space heating output (kW) | 6.41 |
Overheating protected | No |
Heating type | Hydro - Radiator |
Characteristics | Oven |
Oven dimensions (Height, Width, Depth), mm | 260x460x440 |
Lining | Decorative lining |
Placement | Center |
Recommended system type | Open |
Flue damper | No |
