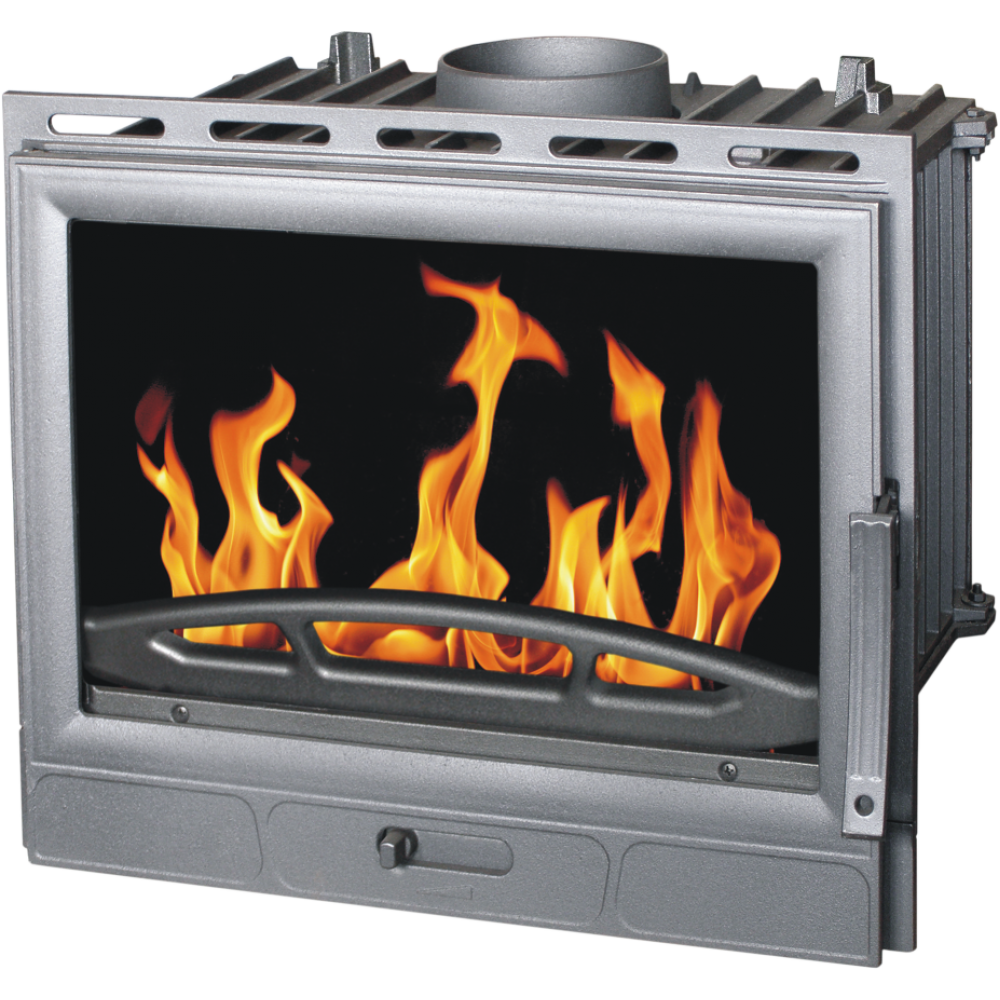

Fireplace insert Plamen Barun Termo, 20kw

Wood burning fireplace with water mantle and a plain line design, made exclusively from cast iron parts.

Plamen Barun Termo, 20kw
FREE DELIVERY EU

Fireplace insert Plamen Barun Termo, 20kw

Wood burning fireplace with water mantle and a plain line design, made exclusively from cast iron parts.

Please choose a variant first.
€ 1,154.00 In stock
Old price:
You save:
Out of stock

Color: Graphite black and grey

  • Cast iron combustion chamber
  • Equipped with heat resistant ceramic glass
  • Manufactured from high quality cast iron
  • Cast iron grid
  • Metal door handles
  • Equipped with manual dampers: Front damper for controlling the air supply. The secondary and tertiary air are let in at the rear side and above the glass and are sufficient for burning and keeping the glass clean

WARNING!

- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack resulting in quarantee loss

- Achieving the desired heat output depends on:

  • the selected fuel with the necessary caloricity and humidity
  • its subsequent kindling and refueling
  • the regulation of the primary and the secondary air
  • the regulation of the draught
  • the organizing of effective air heat exchange, etc.

- In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system

  • Weight (kg): 136.0000
  • Country of Manufacture: Croatia
  • Dimension Depth (mm): 440
  • Dimension Width (mm): 690
  • Dimension Height (mm): 590
  • Warranty: 2 Years
  • Operating pressure (bar): 2 bar
  • Certification: CE
  • Maximal thermal output (kW): 20
  • Approximate heating surface (m²): 138.00
  • Flue (mm): 180
  • Exhaust Location: Top side
  • Heat output (kW): 20.00
  • Efficiency (%): 71
  • Approximate heating capacity (m³): 360
  • Water heating output (kW): 8
  • Construction material: Cast iron
  • Space heating output (kW): 12
  • Cold water inlet: 3/4"
  • Hot water outlet: 3/4"
  • Overheating protected: No
  • Heating type: Hydro - Radiator
  • Placement: Center, Insert
  • Combustion chamber dimensions (Height, Width, Depth), mm: 320 x 560 x 290
  • Recommended system type: Open
  • Flue damper: No
