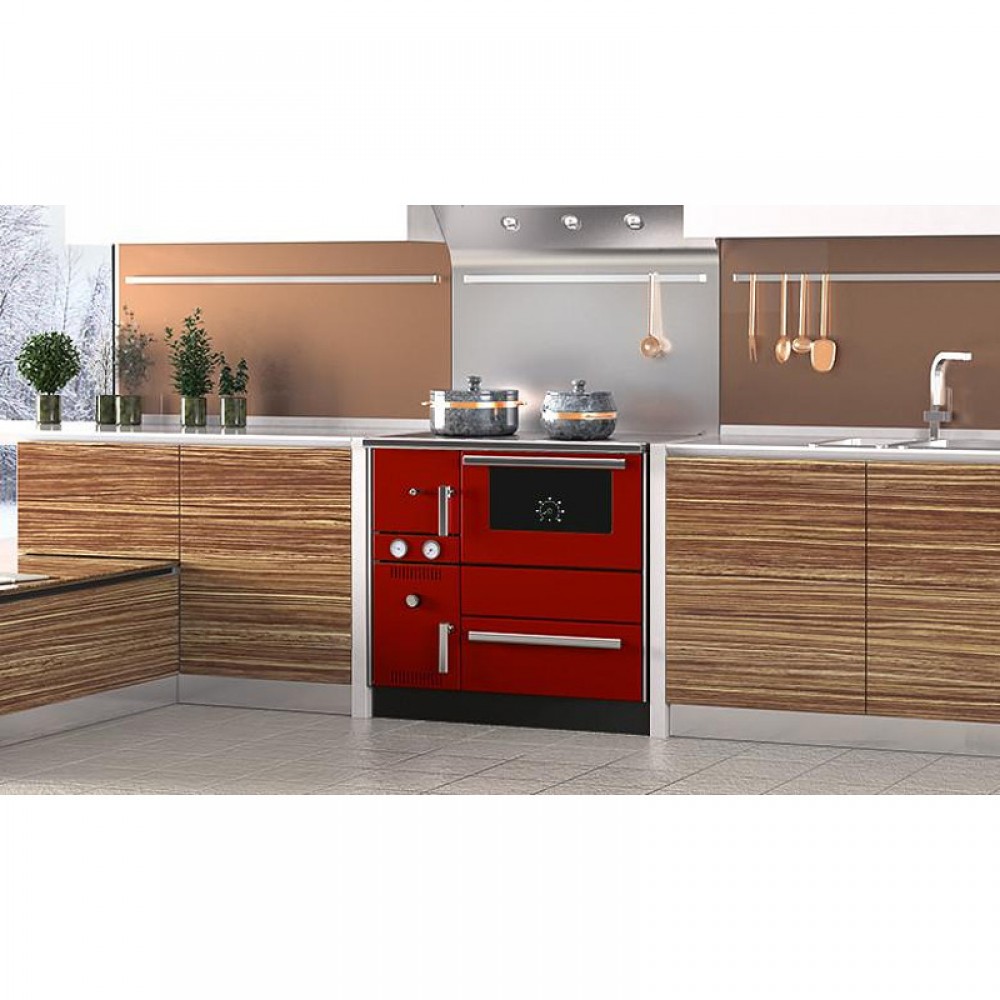

Wood cooker stove with back boiler Alfa Plam Alfa Term 20 Red, 23kW

Color: red

Fuel type – wood, coal

• Built-in hot water boiler for a central heating system.
• Cast iron grate.
• Equipped with a manual damper for controlling the secondary air supply
• Special key for opening the stove in case the handles become too hot.
• Equipped with removable steel hot plates and an oven.
• The oven has a double-layered glass and built-in thermometer.
• Equipped with a thermometer and manometer to monitor the water temperature in the boiler.
• Equipped with two regulators - one for the stove and an automatic one for the water in the boiler.
• Regulator for a secondary burning and combustion of flue gases, in cases where coal is used.
• Combustion of the fuel can be done through the removable hot plates.
• Two operation modes - summer and winter.
• Fuel storage drawer in the lower part of the cooker.
• Built-in emergency heat evacuator in case of overheating.

 23 kW
 413 x 265 x 466 mm
 150 mm
 14 kW
 14 l
 345 - 575 m3
 138 - 230 m2
 170/192 kg
 A
 Yes

Warning! Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the stove without water in the boiler will cause it to crack.

Achieving the desired heat output depends on the selected fuel with the necessary caloricity and humidity; its subsequent kindling and refueling; the regulation of the primary and the secondary air as well as the draught; the organizing of effective air heat exchange etc.
