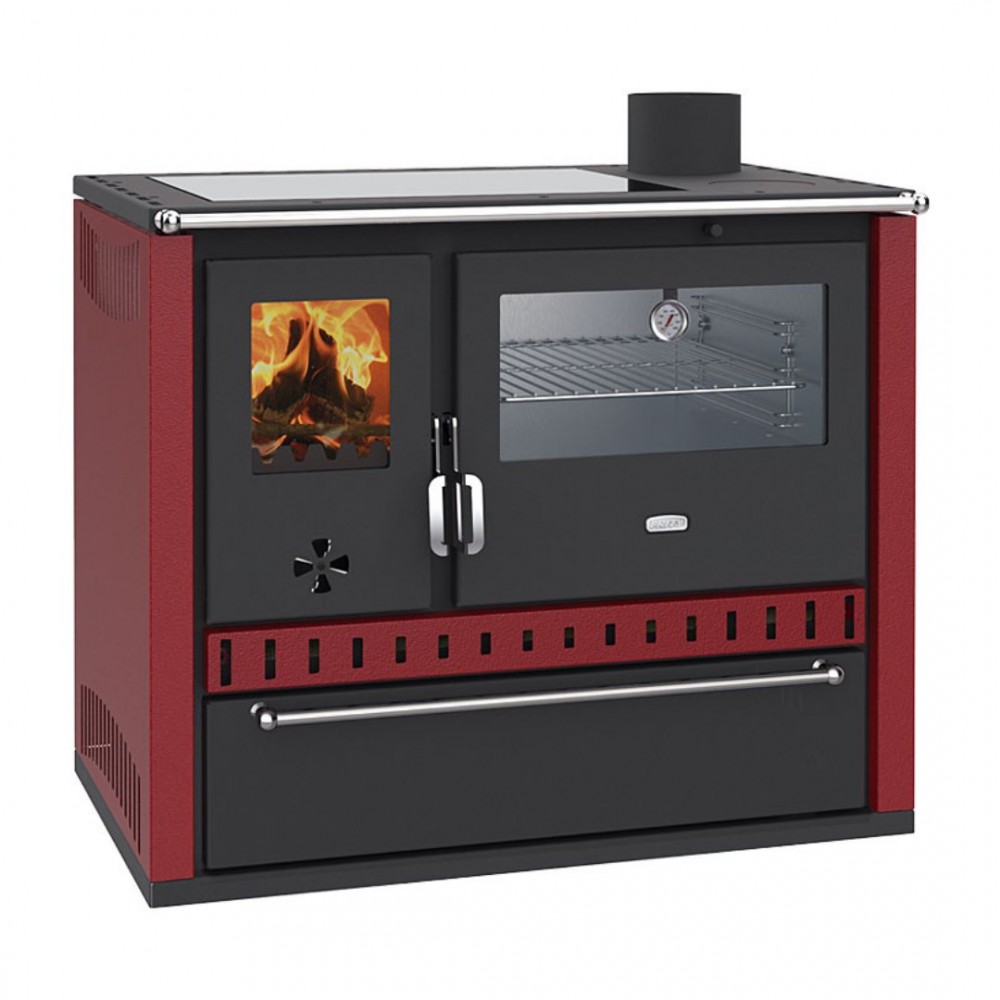

Wood Cooker Stove with Back Boiler Prity GT W10 Red, with Stainless Steel Oven, Ceramic Glass Hob and Drawer, 9.6 kW
Wood Cooker Stove with Back Boiler Prity GT W10, 9.6 kW. With stainless steel oven, ceramic glass hob and drawer.
- Stock: Out of stock
- Brand: Prity
- SKU: 08.428.064
|
|
€ 463.38
Total: € 463.38
|
|||
|
|
€ 186.84
Total: € 186.84
|
|||
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details
Colour: red
Fuel type: dry wood with a moisture content of ≤20%
- The combustion chamber is fitted with thermal-shock-resistant ceramic glass;
- Combustion chamber reinforced with refractory bricks that store heat and raise the combustion temperature;
- Primary air supply regulator;
- Oven with thermometer;
- Metal handles.
Warning!
- Do not use without radiators and/or convectors installed. Burning wood in the stove with an empty back boiler will cause it to crack.
- Reaching the desired output depends on:
- The chosen fuel having the required calorific value and moisture content
- Subsequent lighting and refuelling
- Adjustment of the primary and secondary air
- Adjustment of the chimney draught
- Effective air exchange, etc.
Recommendations
- We recommend an open-type central heating system. If the system is closed, it must be protected with a 2.5 bar pressure relief valve. All parts of the system must be protected against freezing. For systems with forced circulation, it is advisable to also install a UPS for the circulation pump.
- If there are copper components in any part of the system, it must be protected against electrolysis by adding a magnesium anode or a similar type of protection.
| Characteristics | |
| Weight (kg) | 131-140 |
| Dimension Depth (mm) | 620 |
| Dimension Width (mm) | 930 |
| Dimension Height (mm) | 800 |
| Warranty | 2 Years |
| Thermometer | Yes |
| Nominal thermal power (kW) | 9.6 |
| Energy efficiency class | A |
| Mantle volume (L) | 11 |
| Flue (mm) | 150 |
| Maximum heat output (kW) | 13.3 |
| Efficiency (%) | 75.8 |
| Nominal water heating output (kW) | 9.6 |
| Maximum water heating output (kW) | 13.3 |
| Fuel consumption during heating period | 4.4 kg/h |
| Space heating output (kW) | 3.7 |
| Cold water inlet | 3/4'' |
| Hot water outlet | 3/4'' |
| Characteristics | Wood stove with back boiler, Hot plate, Oven |
| Oven dimensions (Height, Width, Depth), mm | 420 x 490 x 220 |
| CO measured at 13% Oxygen at rated power (reduced) [%] | 1248 mg/Nm3 |
| Emissions (g/s) | 23,5 |
| Exhaust gas temperature (operation mode), °C | 210 |
| Maximum system pressure (bar) | 1 |
| Water heater capacity (L) | 11 |
| Combustion chamber dimensions (Height, Width, Depth), mm | 317 x 220 x 453 |
| Type | File Information |
| Energy efficiency label Prity GT W10.pdf File size 1.06MB | |
| Declaration of performance Prity GT W10.pdf File size 2.89MB | |
| Manual_Prity_E N.pdf File size 1014.47KB |
